Defender avante X50BT C2081U-KEY
About the Defender avante X50BT C2081U-KEY PCB
Defender avante X50BT C2081U-KEY is an open source PCB design by Adept666, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 172.7 × 61 mm, with 80 components from 16 distinct parts.
Other key parts include the TM1668. By type, the board carries 40 connectors, 12 resistors, 6 capacitors, 5 diodes, 4 switches and 4 LEDs.
From the project

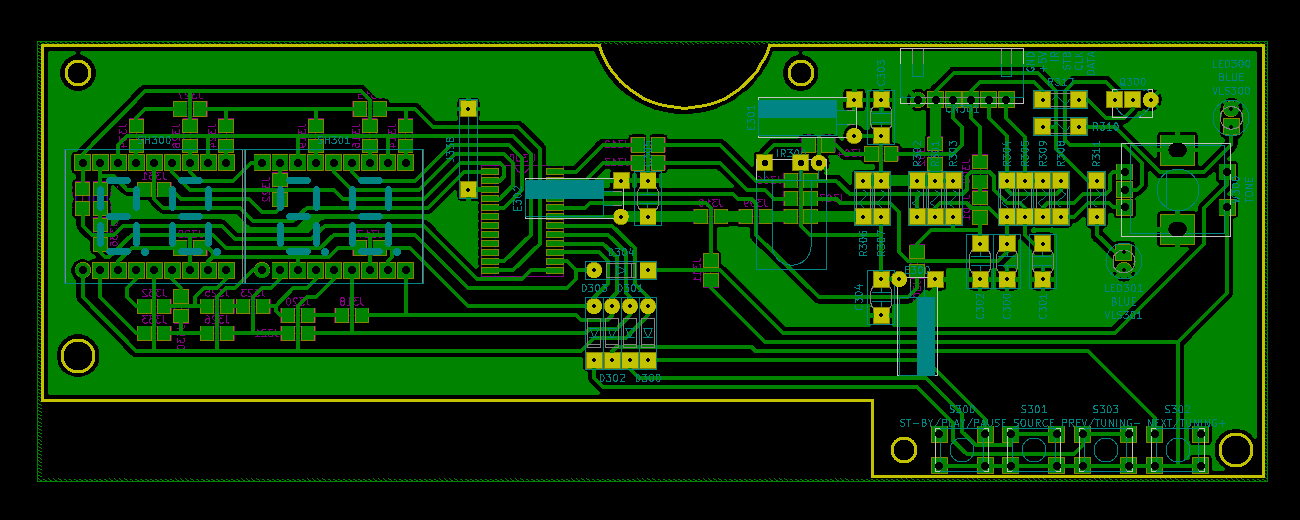

Defender Avante X50BT C2081U-KEY PCB
Проект состоит из принципиальной схемы и чертежа печатного узла (ПУ) индикации и управления C2081U-KEY акустической системы Defender Avante X50BT. Чертежи созданы с помощью программы KiCad и предназначены для самостоятельного изготовления данного ПУ в случае выхода оригинального ПУ из строя и отсутствия возможности его ремонта.
Работа с проектом осуществляется в программе KiCad.
Main components on the Defender avante X50BT C2081U-KEY
Defender avante X50BT C2081U-KEY bill of materials (BOM)
80 components, 16 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TM1668 | P-SO-24W | U300 |
| 1 | BJT_NPN_GENERAL | P-TO-92-E-B-C | Q300 |
| 1 | CONNECTOR_M_006_20_SPECIAL | CON-CWF-6RA | CN301 |
| 38 | JUMPER | J-SM-1206 | J300, J301, J302, J303, J304, J305, J306, J307 +30 |
| 1 | JUMPER | J-TH-d0.6-P11.43 | J338 |
| 1 | CAPACITOR_POLARIZED | CP-RADIAL-D05.0-P02.0-d0.5-L11-HD | E300 |
| 2 | CAPACITOR_POLARIZED | CP-RADIAL-D05.0-P02.0-d0.5-L11-HU | E301, E302 |
| 1 | IC_IRR | IRR-CAST-GND-VCC-OUT-H | IR300 |
| 4 | SWITCH_BUTTON_NON-LOCK_01P_01T_NO | SW-06XXX | S300, S301, S302, S303 |
| 2 | VIRTUAL_LED-SPACER | VLS-BR | VLS300, VLS301 |
| 1 | ENCODER_CONTACTING_INC_B_C | ENC-PEC12R-4-F-S | W300 |
| 2 | DIODE_LIGHT-EMITTING_LEFT | LED-ROUND-03.0-UNI-SH-SPACER | LED300, LED301 |
| 2 | DIODE_7SEG_2DIG_CC_S | LED-7SEG-DC56-11 | SH300, SH301 |
| 5 | DIODE_GENERAL | P-DO-35 | D300, D301, D302, D303, D304 |
| 6 | CAPACITOR_NON-POLARIZED | C-DISK-D04.2-T03.0-P05.08-d0.5 | C300, C301, C302, C303, C304, C305 |
| 12 | RESISTOR_GENERAL | R-MFR-12 | R301, R302, R303, R304, R305, R306, R307, R308 +4 |
Defender avante X50BT C2081U-KEY design files
The KiCad project lives in the Adept666/defender_avante_X50BT_C2081U-KEY repository on GitHub; these links point at the commit this page was built from.
Defender avante X50BT C2081U-KEY: common questions
How big is the Defender avante X50BT C2081U-KEY PCB?
The Defender avante X50BT C2081U-KEY measures 172.7 × 61 mm, has 2 copper layers and is 1.5 mm thick.
How many components are on the Defender avante X50BT C2081U-KEY?
80 components, from 16 distinct parts. The full bill of materials is listed on this page.
Where can I download the Defender avante X50BT C2081U-KEY design files?
From the Adept666/defender_avante_X50BT_C2081U-KEY repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Defender avante X50BT C2081U-KEY design in my own project?
Yes, under the terms of its GPL-3.0 license, which Adept666 chose for the repository.
