StabilizerShims
About the StabilizerShims PCB
StabilizerShims is an open source PCB design by ai03-2725, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 96 × 83 mm, with 0 components from 0 distinct parts.
From the project

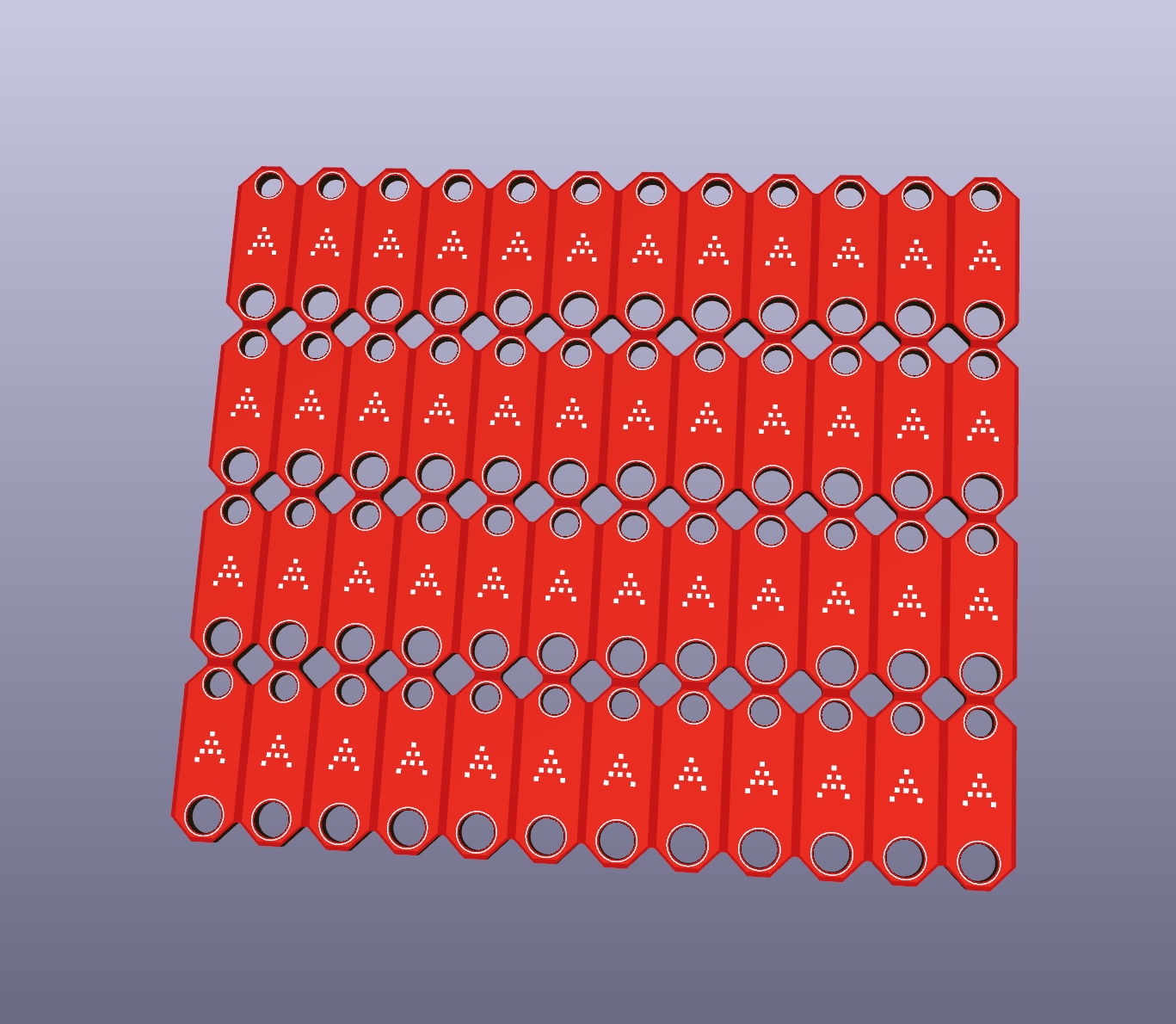

MX PCB-mount stabilizer shims for thinner PCBs
StabilizerShims design files
The KiCad project lives in the ai03-2725/StabilizerShims repository on GitHub; these links point at the commit this page was built from.
StabilizerShims: common questions
How big is the StabilizerShims PCB?
The StabilizerShims measures 96 × 83 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the StabilizerShims?
0 components, from 0 distinct parts. The full bill of materials is listed on this page.
Where can I download the StabilizerShims design files?
From the ai03-2725/StabilizerShims repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the StabilizerShims design in my own project?
Yes, under the terms of its GPL-3.0 license, which ai03-2725 chose for the repository.
