Apple-SWIM-PLCC-44-to-DIP-28
About the Apple-SWIM-PLCC-44-to-DIP-28 PCB
Apple-SWIM-PLCC-44-to-DIP-28 is an open source PCB design by alxlab-zone66x, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 23.9 × 36.8 mm, with 2 components from 2 distinct parts.
Other key parts include the Apple_SWIM_DIP-28 and Apple_SWIM_PLCC-44.
From the project

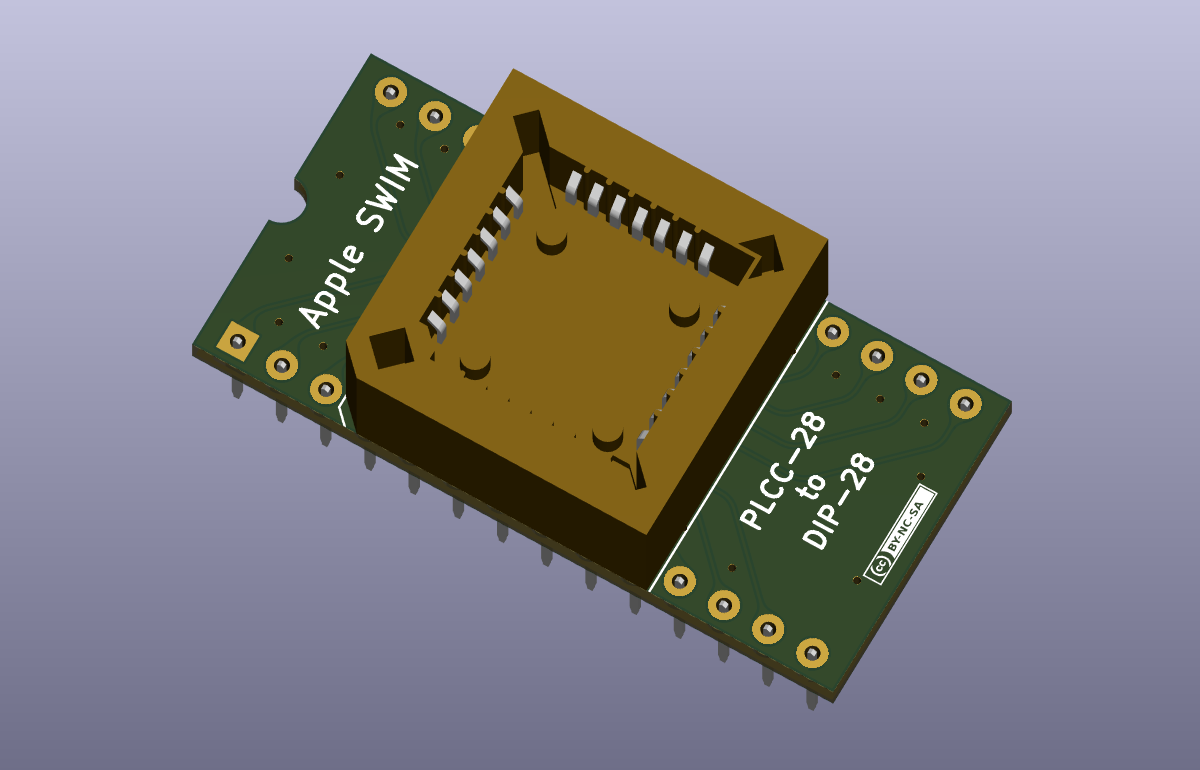

This project is for a couple of chip adapters to convert the PLCC-28 and PLCC-44 Apple SWIM chips to DIP-28.
This project is for a couple of chip adapters to convert the PLCC-28 and PLCC-44 Apple SWIM chips to DIP-28.
The intention of the project was to allow me to use the PLCC-44 SWIM chip from my battery bombed Macintosh Classic in a Macintosh SE to give it 1.44MB floppy drive support.
The PLCC-28 and DIP-28 SWIM chips have the exact same pin layout (i.e., pin 1 goes to pin 1, pin 2 to pin 2, etc). This means that PLCC-28 to DIP-28 adapter can be used with universal programmers as well.
Main components on the Apple-SWIM-PLCC-44-to-DIP-28
Apple-SWIM-PLCC-44-to-DIP-28 bill of materials (BOM)
2 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Apple_SWIM_DIP-28 | DIP-28_W15.24mm_Lead-Frame_SHP-001 | U1 |
| 1 | Apple_SWIM_PLCC-44 | PLCC-44_THT-Socket | U2 |
Apple-SWIM-PLCC-44-to-DIP-28 design files
The KiCad project lives in the alxlab-zone66x/Apple-SWIM-Chip-Adapters repository on GitHub; these links point at the commit this page was built from.
Apple-SWIM-PLCC-44-to-DIP-28: common questions
How big is the Apple-SWIM-PLCC-44-to-DIP-28 PCB?
The Apple-SWIM-PLCC-44-to-DIP-28 measures 23.9 × 36.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Apple-SWIM-PLCC-44-to-DIP-28?
2 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the Apple-SWIM-PLCC-44-to-DIP-28 design files?
From the alxlab-zone66x/Apple-SWIM-Chip-Adapters repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Apple-SWIM-PLCC-44-to-DIP-28 design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
