Gpu cluster backplane
About the Gpu cluster backplane PCB
Gpu cluster backplane is an open source PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a board, with 84 components from 14 distinct parts.
Other key parts include the LM339PW, MAX6643LBBAEE+ and TS5A3359DCUR. By type, the board carries 44 resistors, 14 capacitors, 6 ICs, 6 connectors, 5 diodes and 5 inductors.
From the project

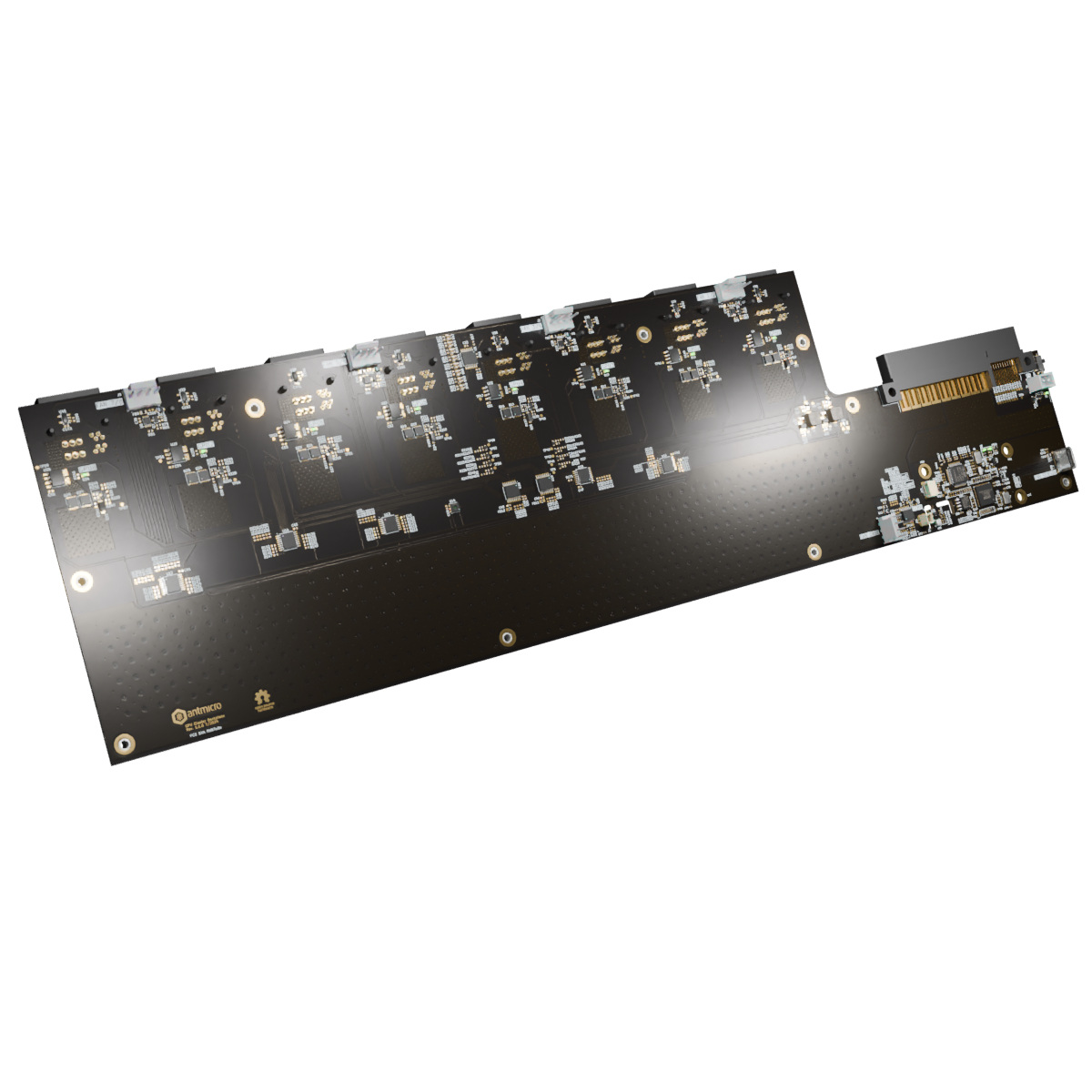

This project contains open hardware design files for a PCB supporting power distribution in a cluster composed of GPUs. This board has been derived from an open source d1600e-psu-breakout created by Antmicro. The GPU cluster backplane has been designed to be used with up to eight
This project contains open hardware design files for a PCB supporting power distribution in a cluster composed of GPUs. This board has been derived from an open source d1600e-psu-breakout created by Antmicro. The GPU cluster backplane has been designed to be used with up to eight GPU units connected over a series thunderbolt-gpu-adapters. The design files for the board were prepared in KiCad 7.x.
Main components on the Gpu cluster backplane
Gpu cluster backplane bill of materials (BOM)
84 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM339PW LM339_TSSOP_CUSTOM_Split Texas Instruments | TSSOP-14_4.4x5mm_P0.65mm | U5 |
| 1 | MAX6643LBBAEE+ MAX6643_QSOP Analog Devices | QSOP-16_3x4.75x0.75mm_P0.5mm | U6 |
| 4 | TS5A3359DCUR TS5A3359_VSSOP Texas Instruments | VSSOP-8_2.3x2mm_P0.5mm | U7, U8, U9, U10 |
| 4 | BSS138PW Nexperia | SC70-3 | Q4, Q5, Q6, Q7 |
| 5 | 22-23-2041 Molex_KK_1x4_22-23-2041 Molex | Conn_Molex_KK_1x4_22-23-2041 | J3, J4, J5, J6, J23 |
| 1 | BM02B-SRSS-TB(LF)(SN) JST_SH_1x2_BM02B-SRSS-TB-LF-SN JST Automotive Connectors | Conn_JST_SH_1x2_BM02B-SRSS-TB-LF-SN | J21 |
| 5 | 1N4148WS-7-F Diodes Incorporated | D_SOD-323 | D7, D8, D9, D10, D11 |
| 5 | BLM18SG121TN1D FB_120Z_3A_Murata-BLM18SG_0603 Murata | FB_0603_1608Metric | FB5, FB6, FB7, FB8, FB9 |
| 8 | GRM188C81C106MA73D C_10u_16V_0603 Murata | C_0603_1608Metric | C25, C26, C27, C28, C29, C30, C31, C32 |
| 6 | GRM155R61H104KE14D C_100n_0402 Murata | C_0402_1005Metric | C33, C34, C35, C36, C37, C38 |
| 16 | CR0402-FX-5102GLF R_51k_0402 Bourns | R_0402_1005Metric | R34, R35, R36, R37, R38, R39, R40, R41 +8 |
| 14 | ERJ2GE0R00X R_0R_0402 Panasonic | R_0402_1005Metric | R42, R52, R55, R63, R64, R65, R66, R67 +6 |
| 4 | CR0402-FX-5103GLF R_510k_0402 Bourns | R_0402_1005Metric | R56, R57, R58, R59 |
| 10 | CR0402-FX-1002GLF R_10k_0402 Bourns | R_0402_1005Metric | R72, R73, R74, R75, R78, R79, R80, R81 +2 |
Gpu cluster backplane design files
The KiCad project lives in the antmicro/gpu-cluster-backplane repository on GitHub; these links point at the commit this page was built from.
- Schematicfans-control.kicad_sch
Gpu cluster backplane: common questions
How many components are on the Gpu cluster backplane?
84 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the Gpu cluster backplane design files?
From the antmicro/gpu-cluster-backplane repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the Gpu cluster backplane design in my own project?
Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
