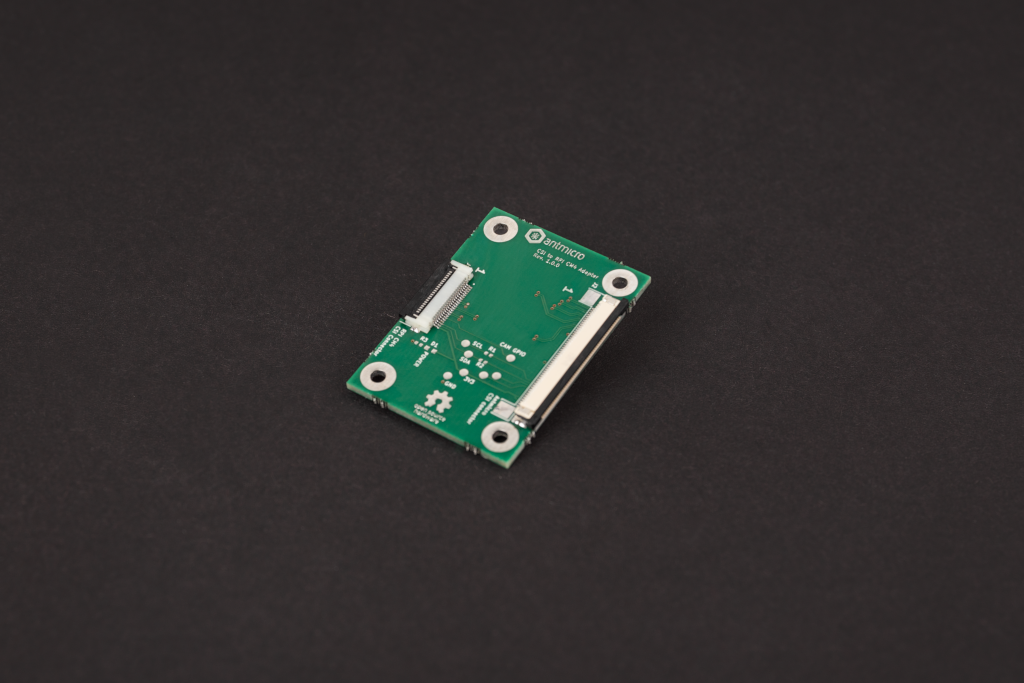

Raspberry pi cm4-csi adapter
About the Raspberry pi cm4-csi adapter PCB
Raspberry pi cm4-csi adapter is an open source PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a 4-layer board measuring 47 × 33 mm, with 10 components from 6 distinct parts.
By type, the board carries 3 resistors, 2 connectors and 1 diode.
From the project
This repository contains open hardware design files for an adapter board allowing to connect video accessories developed by Antmicro to a Raspberry Pi CM4 IO Board over a 22-pin FFC connector. The adapter allows to connect a 4-lane MIPI CSI-2 video interface along with power supp
This repository contains open hardware design files for an adapter board allowing to connect video accessories developed by Antmicro to a Raspberry Pi CM4 IO Board over a 22-pin FFC connector. The adapter allows to connect a 4-lane MIPI CSI-2 video interface along with power supply rail and I2C bus. The design files were prepared in KiCad.
The main repository directory contains KiCad PCB project files, a LICENSE and README. The remaining files are stored in the following directories:
Raspberry pi cm4-csi adapter bill of materials (BOM)
10 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 687122149022 | 687122149022 | J1 |
| 1 | WE_68715014522 | WE_68715014522 | J2 |
| 4 | PCB_Mount_Hole_2.5_6.2 | Mount-hole-M2.5 | MP1, MP2, MP3, MP4 |
| 1 | KP-1608CGCK | LED_0603 | D1 |
| 2 | R_0R_0402 | 0402-res | R1, R2 |
| 1 | R_330R_0402 | 0402-res | R3 |
Raspberry pi cm4-csi adapter design files
The KiCad project lives in the antmicro/raspberry-pi-cm4-csi-adapter repository on GitHub; these links point at the commit this page was built from.
Raspberry pi cm4-csi adapter: common questions
How big is the Raspberry pi cm4-csi adapter PCB?
The Raspberry pi cm4-csi adapter measures 47 × 33 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Raspberry pi cm4-csi adapter?
10 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the Raspberry pi cm4-csi adapter design files?
From the antmicro/raspberry-pi-cm4-csi-adapter repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Raspberry pi cm4-csi adapter design in my own project?
Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
