F3 backplane
About the F3 backplane PCB
F3 backplane is an open source PCB design by arnarg, published on GitHub under the SHL-2.1 license. It is a 4-layer board measuring 95.8 × 82.4 mm, with 45 components from 12 distinct parts.
Other key parts include the NCP45521. By type, the board carries 32 capacitors, 4 ICs, 4 connectors, 4 resistors and 1 transistor.
From the project
Backplane PCB for Terramaster F2-221, adding NVMe SSD

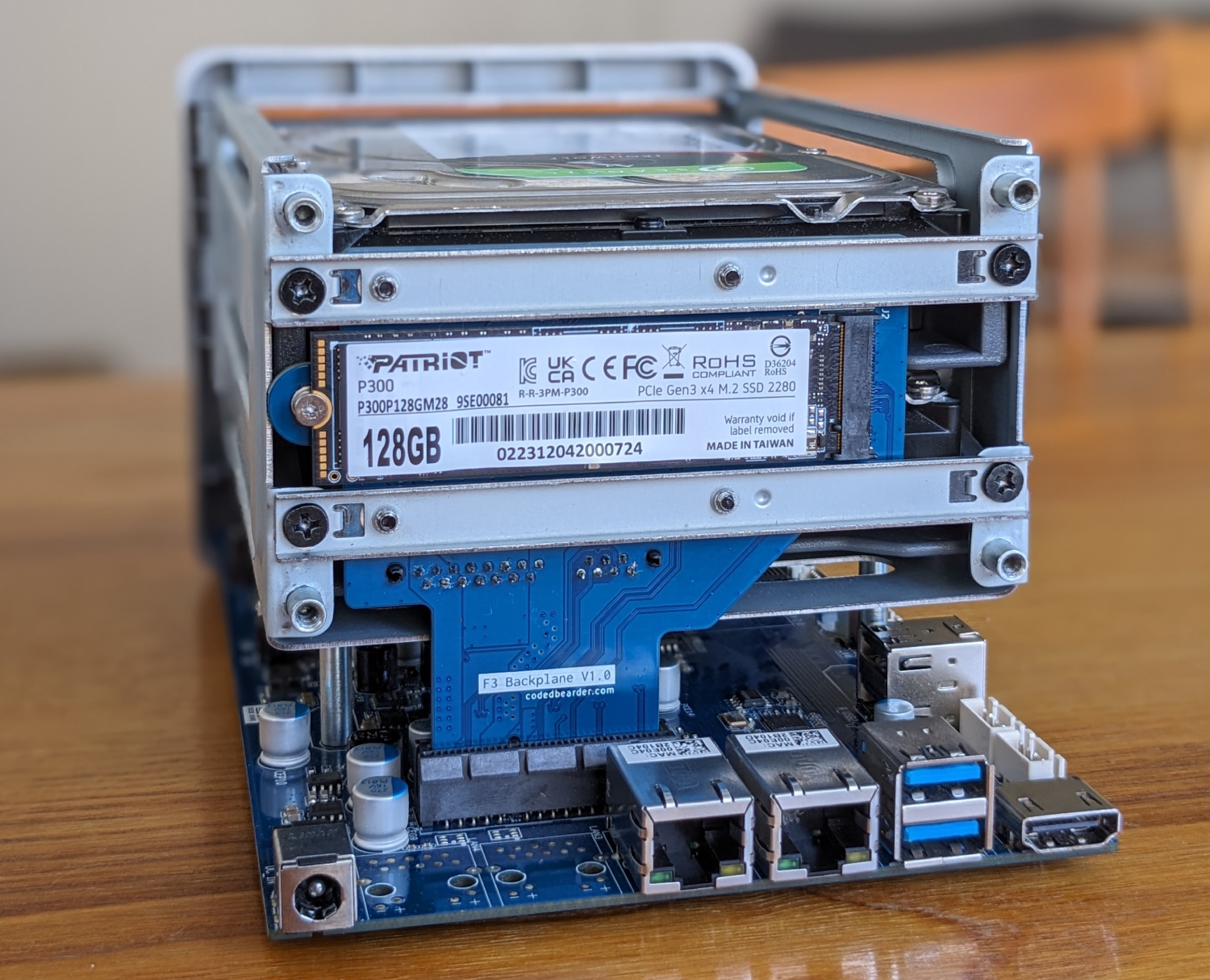

This is a custom backplane PCB for Terramaster F2-221, which adds a socket for an NVMe SSD for booting an operating system from.
Blog post about creating this: https://codedbearder.com/posts/f3-backplane/
The gerber zip file can be found under fab/v1.0/f3backplane.zip and is generated for JLCPCB. When ordering the PCB make sure to select impedance controlled stackup JLC04161H-7628***.
Main components on the F3 backplane
F3 backplane bill of materials (BOM)
45 components, 12 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | NCP45521 | NCP45521 | U1, U2, U3, U4 |
| 1 | MMBT3904 | SOT-23 | Q1 |
| 1 | PCIEx4_HOST | PCIEx4_HOST | J1 |
| 1 | Bus_M.2_Socket_M | Amphenol_MDT420M01001 | J2 |
| 2 | SATA_Backplane | Molex_0877011001 | J3, J4 |
| 2 | 47u | C_0805_2012Metric | C1, C2 |
| 1 | 22u | C_0805_2012Metric | C3 |
| 2 | 100n | C_0603_1608Metric | C4, C5 |
| 15 | 100nF | C_0603_1608Metric | C6, C11, C14, C15, C17, C20, C21, C22 +7 |
| 4 | 10uF | C_0805_2012Metric | C10, C16, C30, C36 |
| 8 | 22uF | C_0805_2012Metric | C12, C13, C18, C19, C32, C33, C38, C39 |
| 4 | 2R2 | R_2512_6332Metric | R1, R2, R3, R4 |
