KiCad-Hello-World
About the KiCad-Hello-World PCB

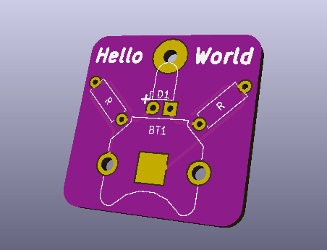

KiCad-Hello-World is an open source PCB design by aspro648, published on GitHub. It is a 2-layer board measuring 25.4 × 25.4 mm, with 4 components from 3 distinct parts.
By type, the board carries 2 resistors, 1 battery holder and 1 diode.
From the project
Create just a basic PCB in one hour.
In programing, "Hello World" is the first program you write when you are learning a new language, so here it is for making printed circuit boards using open source KiCad. This was for a one hour talk at Teardown 2018 in Portland, Oregon. Video of the presentation is on Youtube.
- 1 ea. Perfect Purple PCB, https://oshpark.com/shared_projects/xqKKUJBu - 1 ea. Battery Holder, Keystone 3001, https://www.digikey.com/short/jmtqqd - 1 ea. 3mm LED, https://www.digikey.com/short/jmtqj0 - 2 ea. 100 ohm resistors 1/4w, https://www.digikey.com/short/jmtqz7 - 1 ea. CR1220 battery, http://a.co/1LbhIgT - 1…
KiCad-Hello-World bill of materials (BOM)
4 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Battery_Cell | Keystone_3001_1x12mm-CoinCell | BT1 |
| 1 | LED | LED_D3.0mm_Horizontal_O1.27mm_Z2.0mm | D1 |
| 2 | R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2 |
KiCad-Hello-World design files
The KiCad project lives in the aspro648/KiCad-Hello-World repository on GitHub; these links point at the commit this page was built from.
KiCad-Hello-World: common questions
How big is the KiCad-Hello-World PCB?
The KiCad-Hello-World measures 25.4 × 25.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the KiCad-Hello-World?
4 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the KiCad-Hello-World design files?
From the aspro648/KiCad-Hello-World repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the KiCad-Hello-World design in my own project?
The repository has no license, so all rights stay with aspro648. Use it as a reference, and ask the author before reusing the design.
