CavityDentureForM5Stack
About the CavityDentureForM5Stack PCB
CavityDentureForM5Stack is an open source PCB design by asukiaaa, published on GitHub. It is a 2-layer board measuring 54 × 54 mm, with 5 components from 2 distinct parts.
From the project

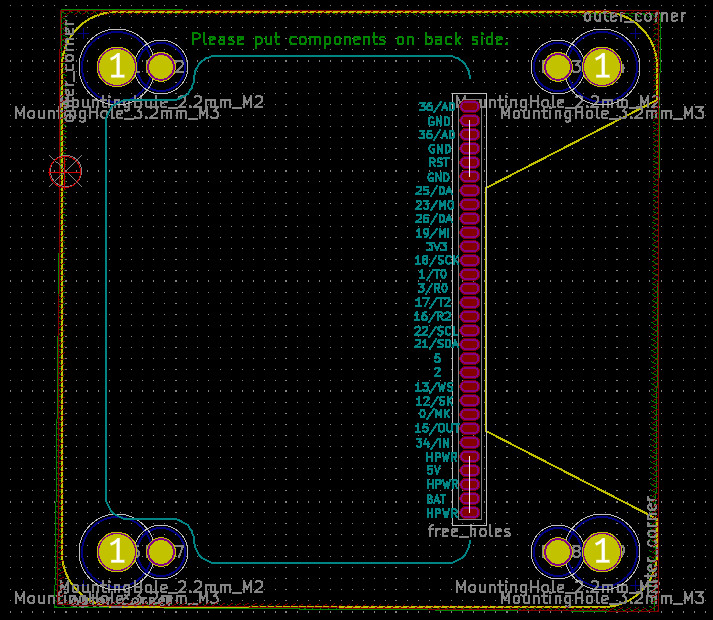

A kicad project for denture for CavityForM5Stack.
A kicad project for denture for CavityForM5Stack.
Use this project as a template of KiCad to create your original denture.
If you order PCB, 1mm thickness denture will good for CavityForM5Stack.
- M5StackのStackに背の高い部品を利用できるM5StackCavityを作ってみた - KiCadでテンプレートを作って使う方法
CavityDentureForM5Stack bill of materials (BOM)
5 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | free_holes | Pads_1x30_P1.27mm_Vertical | J1 |
| 4 | outer_corner | outer_corner | corner1, corner2, corner3, corner4 |
CavityDentureForM5Stack design files
The KiCad project lives in the asukiaaa/CavityDentureForM5Stack repository on GitHub; these links point at the commit this page was built from.
CavityDentureForM5Stack: common questions
How big is the CavityDentureForM5Stack PCB?
The CavityDentureForM5Stack measures 54 × 54 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the CavityDentureForM5Stack?
5 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the CavityDentureForM5Stack design files?
From the asukiaaa/CavityDentureForM5Stack repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the CavityDentureForM5Stack design in my own project?
The repository has no license, so all rights stay with asukiaaa. Use it as a reference, and ask the author before reusing the design.
