Main
About the Main PCB

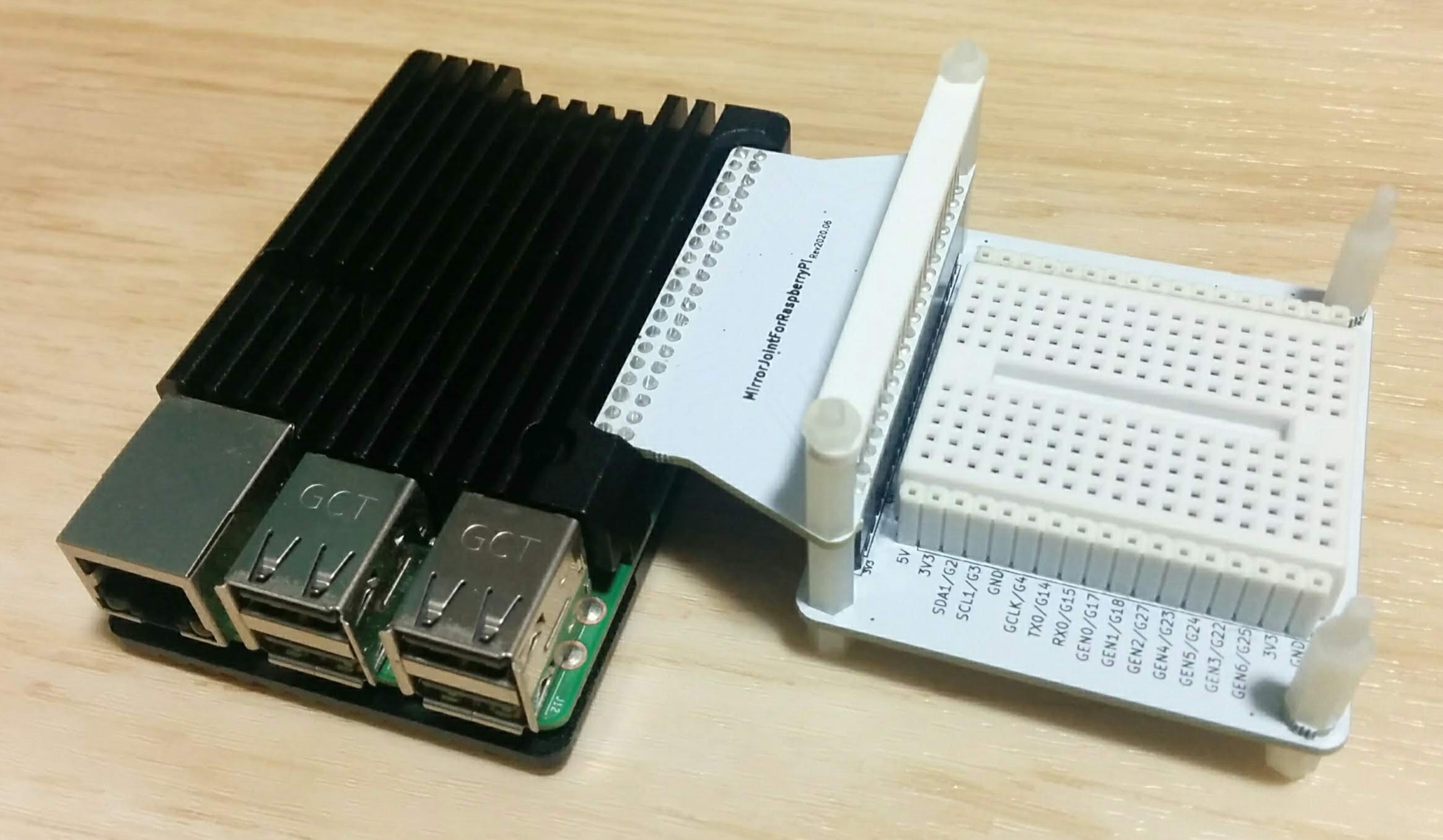

Main is an open source PCB design by asukiaaa, published on GitHub. It is a 2-layer board measuring 65 × 56 mm, with 3 components from 2 distinct parts.
From the project
- Raspberry Piの信号線を横に配置したブレッドボードの左右に引き出す基板を作ってみた - Raspberry Pi Mechanical Drawings
Main bill of materials (BOM)
3 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Conn_01x17 | PinSocket_1x17_P2.54mm_Vertical | J1, J2 |
| 1 | Conn_02x20_Odd_Even | PinHeader_2x20_P2.54mm_Vertical | P1 |
Main design files
The KiCad project lives in the asukiaaa/SideBBForRaspberryPi repository on GitHub; these links point at the commit this page was built from.
Main: common questions
How big is the Main PCB?
The Main measures 65 × 56 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Main?
3 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the Main design files?
From the asukiaaa/SideBBForRaspberryPi repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Main design in my own project?
The repository has no license, so all rights stay with asukiaaa. Use it as a reference, and ask the author before reusing the design.
