Tpm board is an open source PCB design by avivgr, published on GitHub. It is a 2-layer board measuring 25 × 25 mm, with 6 components from 5 distinct parts.
Other key parts include the SLB9670VQ20FW785XUMA1. By type, the board carries 3 capacitors, 1 IC, 1 connector and 1 resistor.
From the project
A PCB for OPTIGA™ SLB 9670 TPM2.0

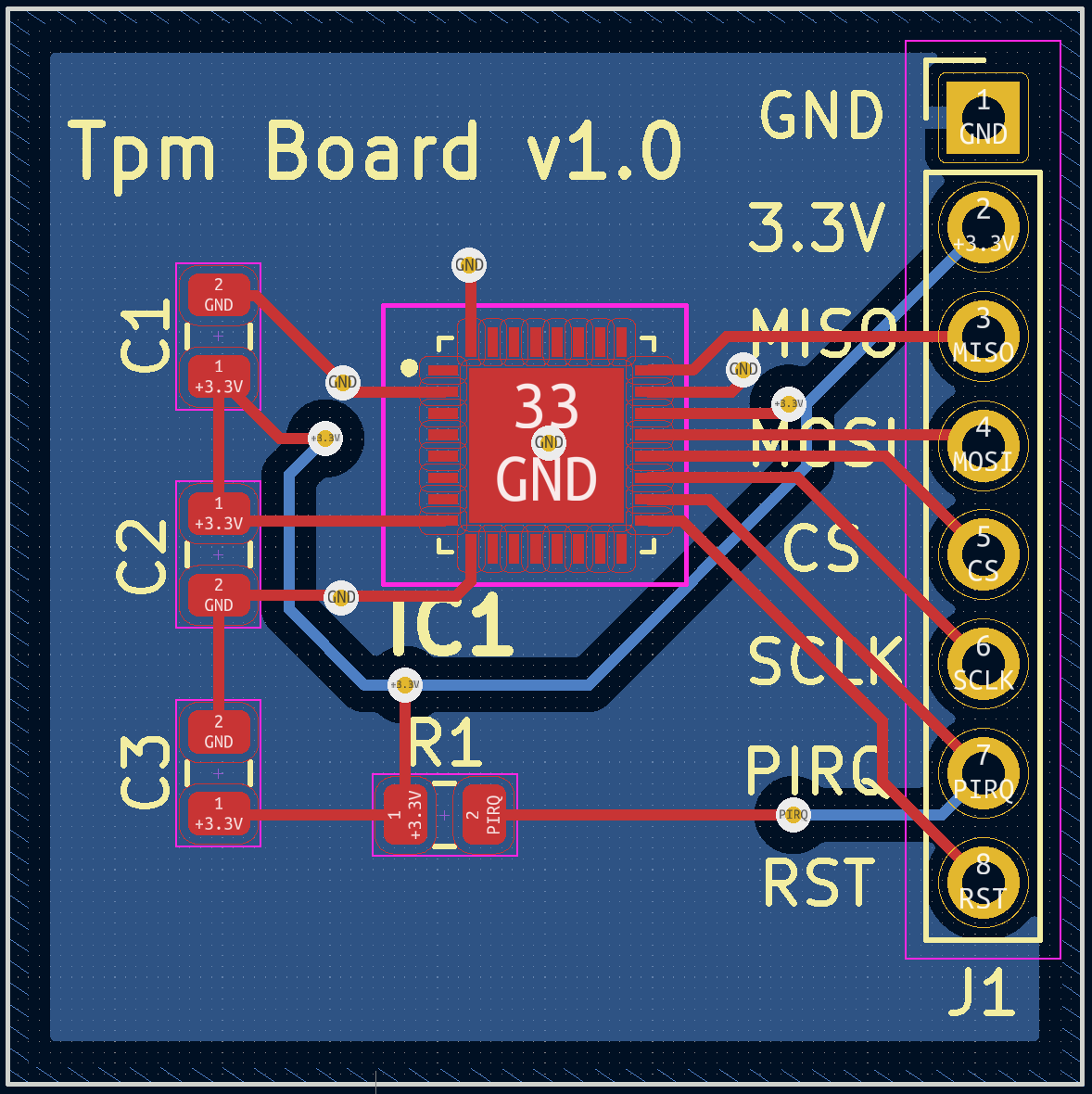

This is a KiCad project for a simple breakout PCB around the OPTIGA™ SLB 9670 TPM2.0 chip. The OPTIGA™ SLB 9670 TPM2.0 uses the SPI serial interface to a host. You can connect this board to a PC motherboard (using jumper wires), or to an SBC like the raspberry pi (more details below).
Because there is a price hike on TPM2.0 boards due to Windows 11 requirements. Also, this is a great learning tool for TPM2.0 technology, instead of using a software emulated TPM.
Main components on the Tpm board
Tpm board bill of materials (BOM)
6 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SLB9670VQ20FW785XUMA1 | SLB9670VQ20FW785XUMA1 | IC1 |
| 1 | Conn_01x08_Female | PinHeader_1x08_P2.54mm_Vertical | J1 |
| 1 | 1uF | C_0805_2012Metric | C1 |
| 2 | 100nF | C_0805_2012Metric | C2, C3 |
| 1 | R_US | R_0805_2012Metric | R1 |
