Sensori-FeatherWing

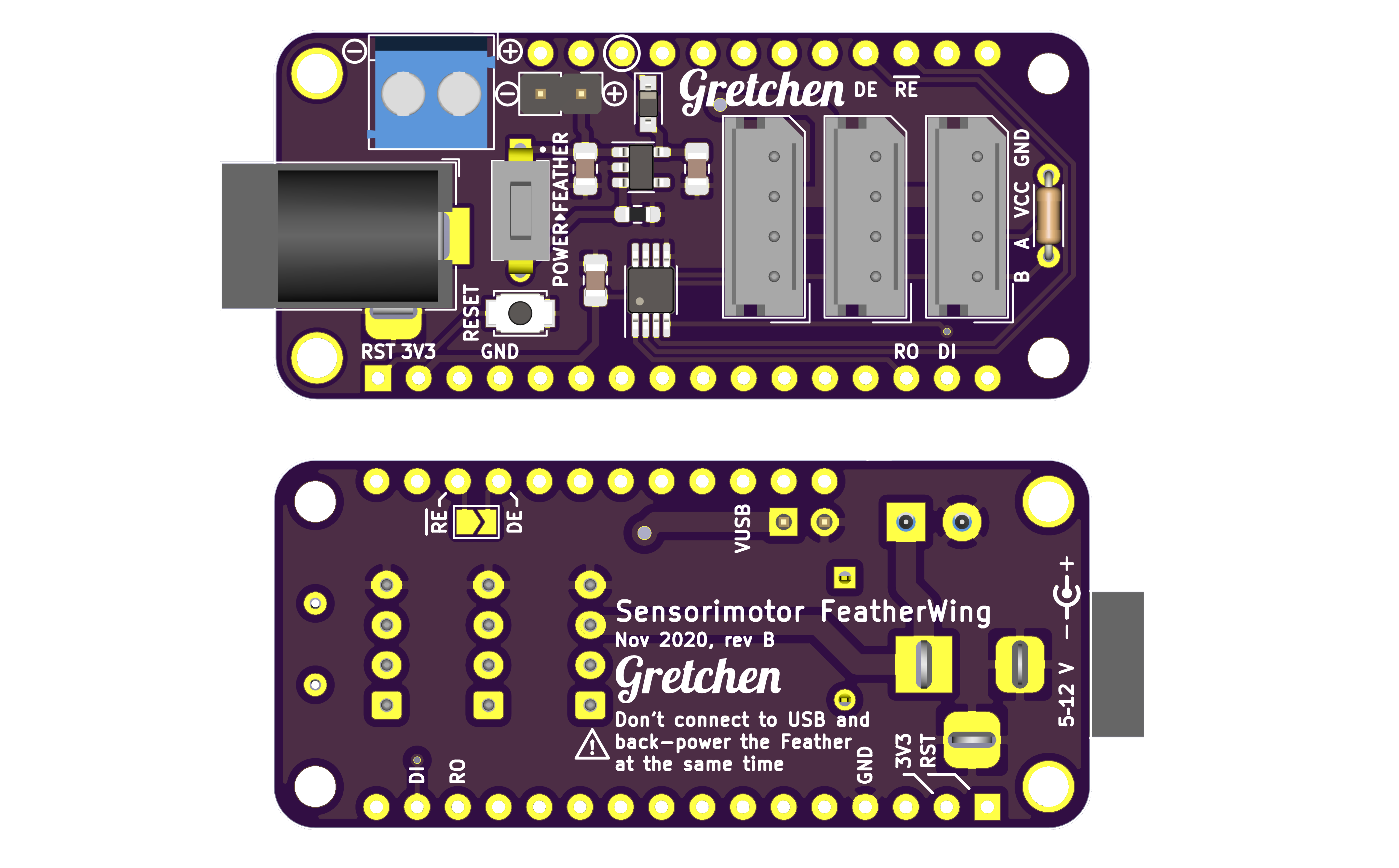

About the Sensori-FeatherWing PCB
Sensori-FeatherWing is an open source PCB design by bergold, published on GitHub. It is a 2-layer board measuring 50.8 × 22.9 mm, with 17 components from 15 distinct parts.
Other key parts include the LTC2850xMS8 and MIC5219-5.0YM5. By type, the board carries 6 connectors, 3 capacitors, 3 resistors, 2 ICs, 2 switches and 1 diode.
From the project
This FeatherWing lets you connect your Feather to a RS-485 bus. It also provides various ways of providing power to your RS-485 bus system, as well as the ability to back-power the Feather from the bus.
This FeatherWing lets you connect your Feather to a RS-485 bus. It also provides various ways of providing power to your RS-485 bus system, as well as the ability to back-power the Feather from the bus.
The bus connector is compatible to the Sensorimotor system. (It's a 4-pin Molex Mini-SPOX)
Warning: Usually Feathers don’t have a reverse USB back-feed protection. You might damage your USB port when the „Power>Feather“ switch is on. So, always turn it off before connecting a USB cable to the Feather.
Main components on the Sensori-FeatherWing
Sensori-FeatherWing bill of materials (BOM)
17 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LTC2850xMS8 | MSOP-8_3x3mm_P0.65mm | U1 |
| 1 | MIC5219-5.0YM5 | SOT-23-5 | U2 |
| 3 | Conn_01x04 | Molex_SPOX_5267-04A_1x04_P2.50mm_Vertical | J2, J3, J4 |
| 1 | 5-12 V, max. 5A | BarrelJack_Horizontal | J5 |
| 1 | Screw_Terminal_01x02 | TerminalBlock_4Ucon_1x02_P3.50mm_Horizontal | J6 |
| 1 | Conn_01x02_Male | PinHeader_1x02_P2.54mm_Vertical | J7 |
| 1 | B3U-1000P | SW_SPST_B3U-1000P | SW1 |
| 1 | SW_SPST | SW_DS04-254-1L-01BK | SW2 |
| 1 | D_Schottky | D_SOD-323_HandSoldering | D1 |
| 1 | 0.1 µF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1 |
| 1 | 1 µF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2 |
| 1 | 10 µF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3 |
| 1 | 120 Ω | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R1 |
| 1 | 10 kΩ | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2 |
| 1 | 120 Ω | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3 |
Sensori-FeatherWing design files
The KiCad project lives in the bergold/Sensori-FeatherWing repository on GitHub; these links point at the commit this page was built from.
Sensori-FeatherWing: common questions
How big is the Sensori-FeatherWing PCB?
The Sensori-FeatherWing measures 50.8 × 22.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Sensori-FeatherWing?
17 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the Sensori-FeatherWing design files?
From the bergold/Sensori-FeatherWing repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Sensori-FeatherWing design in my own project?
The repository has no license, so all rights stay with bergold. Use it as a reference, and ask the author before reusing the design.
