N64-ext adapter-1.6mm
About the N64-ext adapter-1.6mm PCB
N64-ext adapter-1.6mm is an open source PCB design by bigbass1997, published on GitHub. It is a 2-layer board measuring 99.3 × 37.3 mm, with 3 components from 3 distinct parts.
From the project

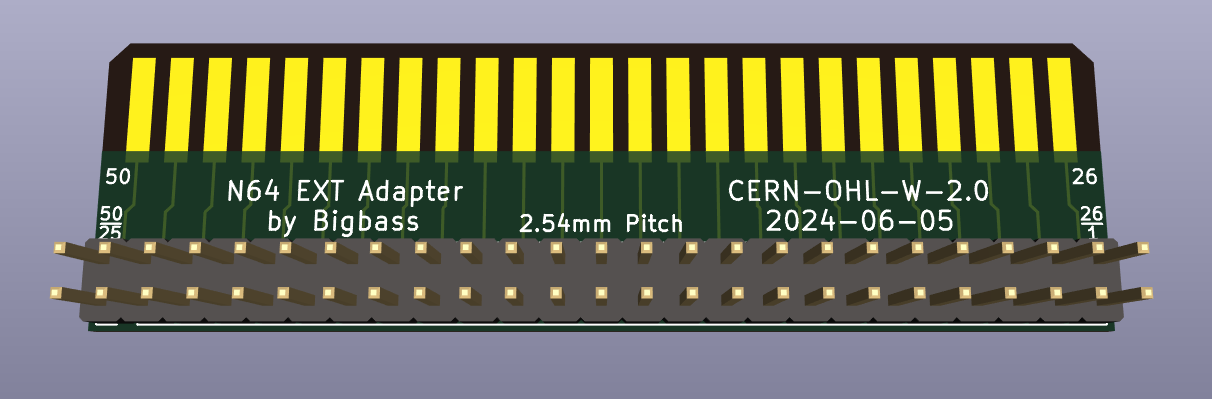

An adapter for the N64's "EXT" port located on the underside of the console.
The EXT port uses a female mezzanine connector with a pitch of 2.50mm and an opening of ~2.6mm by ~65.2mm. Compatible connectors don't appear to exist for these particular dimentions and pin count (likely a result of Nintendo's "security through obscurity" mindset of the era.) However, it's possible to manufacture a connector using a pair of standard-sized PCBs sandwiched together.
N64-ext adapter-1.6mm bill of materials (BOM)
3 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x25 | CardEdgeFingers1-25 | J1 |
| 1 | Conn_02x25_Odd_Even | PinHeader_2x25_P2.54mm_Vertical | J2 |
| 1 | Conn_02x25_Top_Bottom | N64_CartridgeConnector_02x25_P2.50mm | J3 |
N64-ext adapter-1.6mm design files
The KiCad project lives in the bigbass1997/n64-ext-adapter repository on GitHub; these links point at the commit this page was built from.
N64-ext adapter-1.6mm: common questions
How big is the N64-ext adapter-1.6mm PCB?
The N64-ext adapter-1.6mm measures 99.3 × 37.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the N64-ext adapter-1.6mm?
3 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the N64-ext adapter-1.6mm design files?
From the bigbass1997/n64-ext-adapter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the N64-ext adapter-1.6mm design in my own project?
The repository has no license, so all rights stay with bigbass1997. Use it as a reference, and ask the author before reusing the design.
