BBear balance car
BBear balance car is an open source PCB design by bigbearishappy with 1 components (1 distinct parts).
it'a mini auto balance car which use the mini motor to drive the car

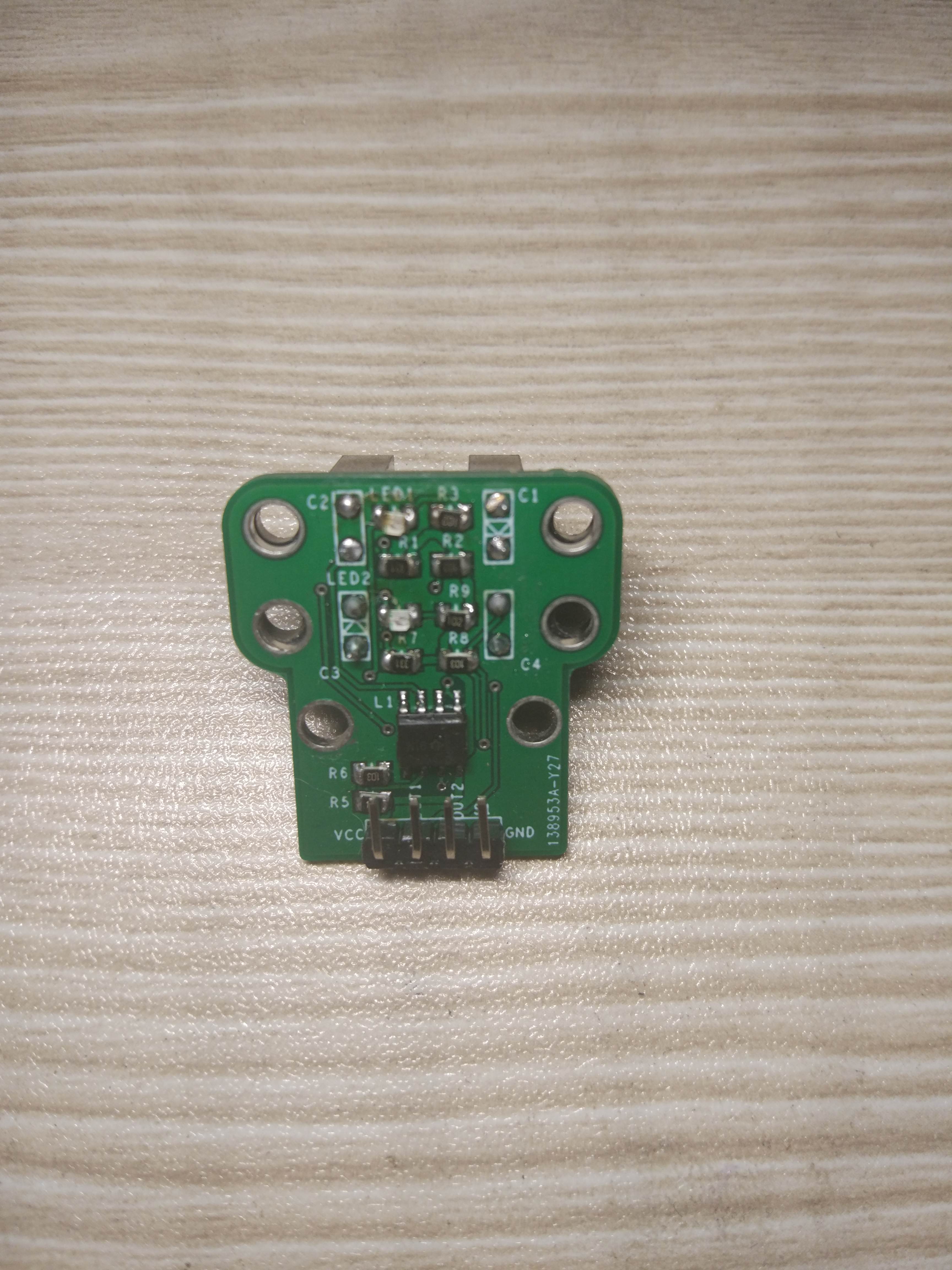

20171108 Now we have the new speed sensor for the car,and the MCU board had been updated to version 6.0. Our new speed sensor picture is as follow:
What's more? We get the new 3D printing wheel,just as follow picture:
20170405 The newest version of the car is version 5.0. I have fix some error of the PCB schematic to make the PCB work better.
1 PCB: it's about the PCB files of the project,it contains the schematic and the PCB design. The schematic can be opened with the OrCAD capture CIS The PCB design can be opened with the PCB Editor
Parts list
1 components, 1 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 0.1UF 0805 ����20% | C1 |
