KiCad-Template-M5Stack
About the KiCad-Template-M5Stack PCB
KiCad-Template-M5Stack is an open source PCB design by botanicfields, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 50 × 50 mm, with 1 components from 1 distinct parts.
From the project
PCB Template of M5Stack Modules and Bases on KiCad with Footprints
KiCad-Template-M5Stack bill of materials (BOM)
1 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | M-BUS | BF@M5Stack_MBUS | J1 |
KiCad-Template-M5Stack design files
The KiCad project lives in the botanicfields/KiCad-Template-M5Stack repository on GitHub; these links point at the commit this page was built from.

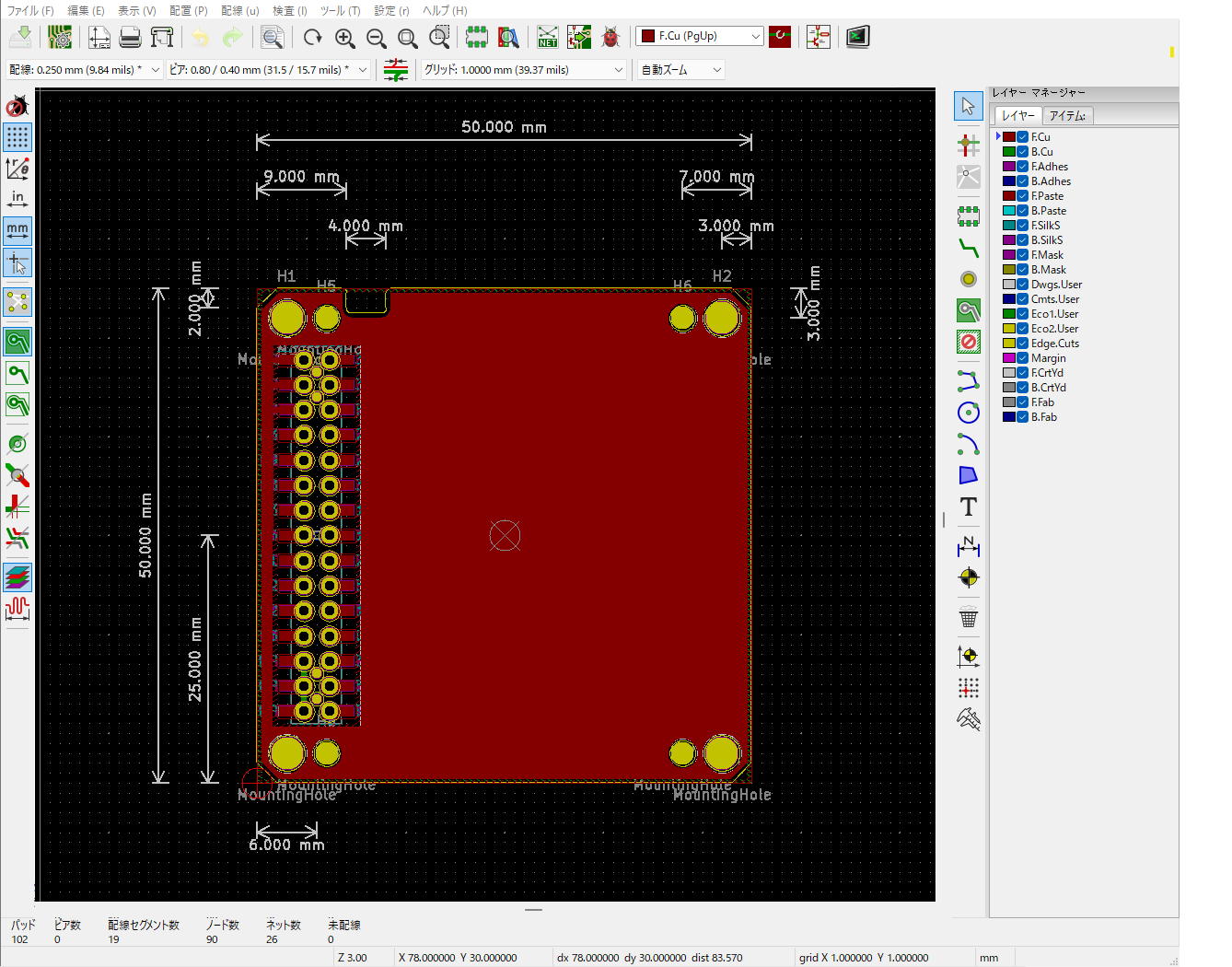

- Layoutbf-021/bf-021.kicad_pcb
KiCad-Template-M5Stack: common questions
How big is the KiCad-Template-M5Stack PCB?
The KiCad-Template-M5Stack measures 50 × 50 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the KiCad-Template-M5Stack?
1 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the KiCad-Template-M5Stack design files?
From the botanicfields/KiCad-Template-M5Stack repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the KiCad-Template-M5Stack design in my own project?
Yes, under the terms of its CC0-1.0 license, which botanicfields chose for the repository.
