DazzerBlue-Mouse
About the DazzerBlue-Mouse PCB
DazzerBlue-Mouse is an open source PCB design by C0m3b4ck, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 32 × 62 mm, with 6 components from 4 distinct parts.
By type, the board carries 2 capacitors, 2 resistors, 1 IC and 1 connector.
From the project

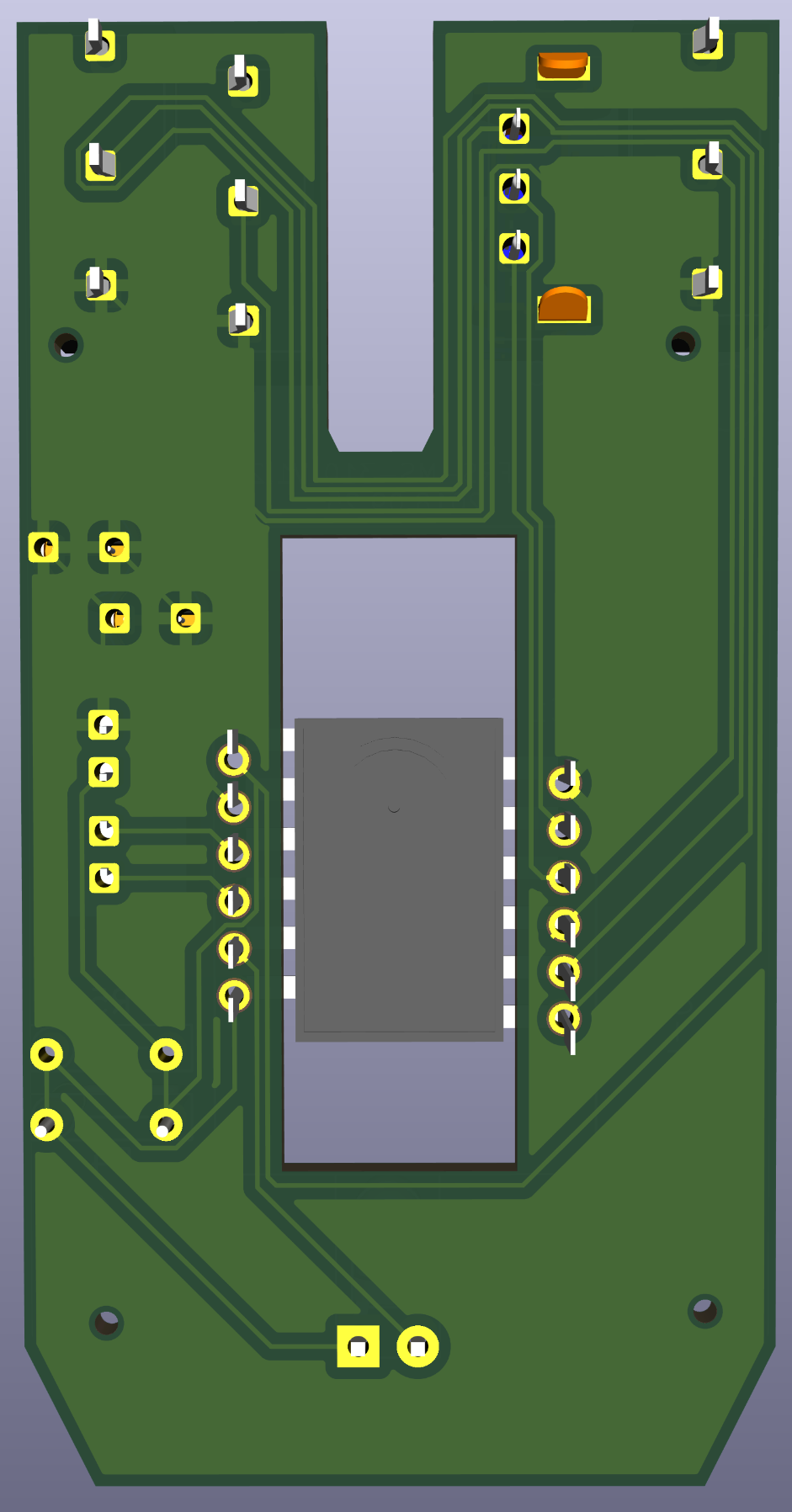

My manual remake of the EOL Tracer DazzerBlue TRAMYS44940 mouse PCB in KiCAD. GERBER and DRILL files included.
KiCAD project with GERBER and DRILL files of the DazzerBlue TRAMYS44940 mouse PCB from 2018/09/25, remade manually by me, C0m3b4ck. All models of all components are in place, the PCB is of accurate size. The only inacurracies are the connections, which aren't 1:1 to the actual PCB. The microswitch and the rotary encoder are the exact same but from different companies (couldn't find original companies).
DazzerBlue-Mouse bill of materials (BOM)
6 components, 4 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ~ | V101S | U1 |
| 1 | ~ | 4pin_USB_male_pins | CON1 |
| 2 | C_Small | SmallCapacitor2 | C1, C2 |
| 2 | 68 ohm | NoCourtyard_R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Vertical | R4, R5 |
DazzerBlue-Mouse design files
The KiCad project lives in the C0m3b4ck/DazzerBlue-Mouse repository on GitHub; these links point at the commit this page was built from.
DazzerBlue-Mouse: common questions
How big is the DazzerBlue-Mouse PCB?
The DazzerBlue-Mouse measures 32 × 62 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the DazzerBlue-Mouse?
6 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the DazzerBlue-Mouse design files?
From the C0m3b4ck/DazzerBlue-Mouse repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the DazzerBlue-Mouse design in my own project?
Yes, under the terms of its Apache-2.0 license, which C0m3b4ck chose for the repository.
