CTS-SAT-1-DCLB-Burnwire
About the CTS-SAT-1-DCLB-Burnwire PCB
CTS-SAT-1-DCLB-Burnwire is an open source PCB design by CalgaryToSpace, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 50.8 × 22.9 mm, with 26 components from 14 distinct parts.
By type, the board carries 13 resistors, 5 diodes, 2 transistors, 2 connectors, 2 switches and 2 capacitors.
From the project

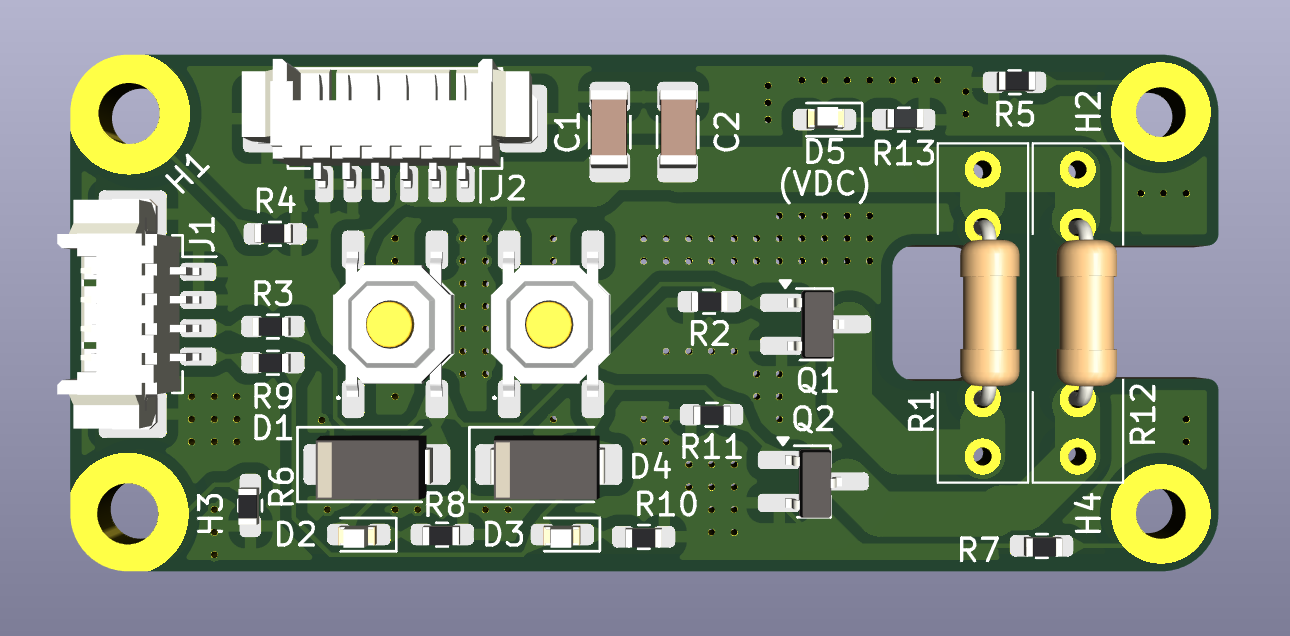

CTS-SAT-1 burnwire driver PCB for the Deployable Composite Lattice Boom (DCLB)
CTS-SAT-1-DCLB-Burnwire bill of materials (BOM)
26 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | AO3400A | SOT-23_Handsoldering | Q1, Q2 |
| 1 | Conn_01x04_MountingPin | Molex_PicoBlade_53261-0471_1x04-1MP_P1.25mm_Horizontal | J1 |
| 1 | Conn_01x06_MountingPin | Molex_PicoBlade_53261-0671_1x06-1MP_P1.25mm_Horizontal | J2 |
| 2 | Tactile_Button XKB Connectivity | SW-SMD_4P-L5.1-W5.1-P3.70-LS6.5-TL-2 | S1, S2 |
| 2 | SMAJ6.5CA | D_SMA | D1, D4 |
| 3 | LED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D2, D3, D5 |
| 1 | 10u | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1 |
| 1 | 100n | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C2 |
| 1 | R | AxialBurnResistor | R1 |
| 4 | 5k1 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2, R8, R10, R11 |
| 2 | 100 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R3, R9 |
| 4 | 0 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R4, R5, R6, R7 |
| 1 | R | AxialBurnResistor_No_Cutout | R12 |
| 1 | 22k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R13 |
CTS-SAT-1-DCLB-Burnwire design files
The KiCad project lives in the CalgaryToSpace/CTS-SAT-1-DCLB-Burnwire-PCB repository on GitHub; these links point at the commit this page was built from.
CTS-SAT-1-DCLB-Burnwire: common questions
How big is the CTS-SAT-1-DCLB-Burnwire PCB?
The CTS-SAT-1-DCLB-Burnwire measures 50.8 × 22.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the CTS-SAT-1-DCLB-Burnwire?
26 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the CTS-SAT-1-DCLB-Burnwire design files?
From the CalgaryToSpace/CTS-SAT-1-DCLB-Burnwire-PCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the CTS-SAT-1-DCLB-Burnwire design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which CalgaryToSpace chose for the repository.
