Wii u usb c
About the Wii u usb c PCB
Wii u usb c is an open source PCB design by carlansell94, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 36.1 × 14.2 mm, with 3 components from 2 distinct parts.
By type, the board carries 2 resistors and 1 connector.
From the project

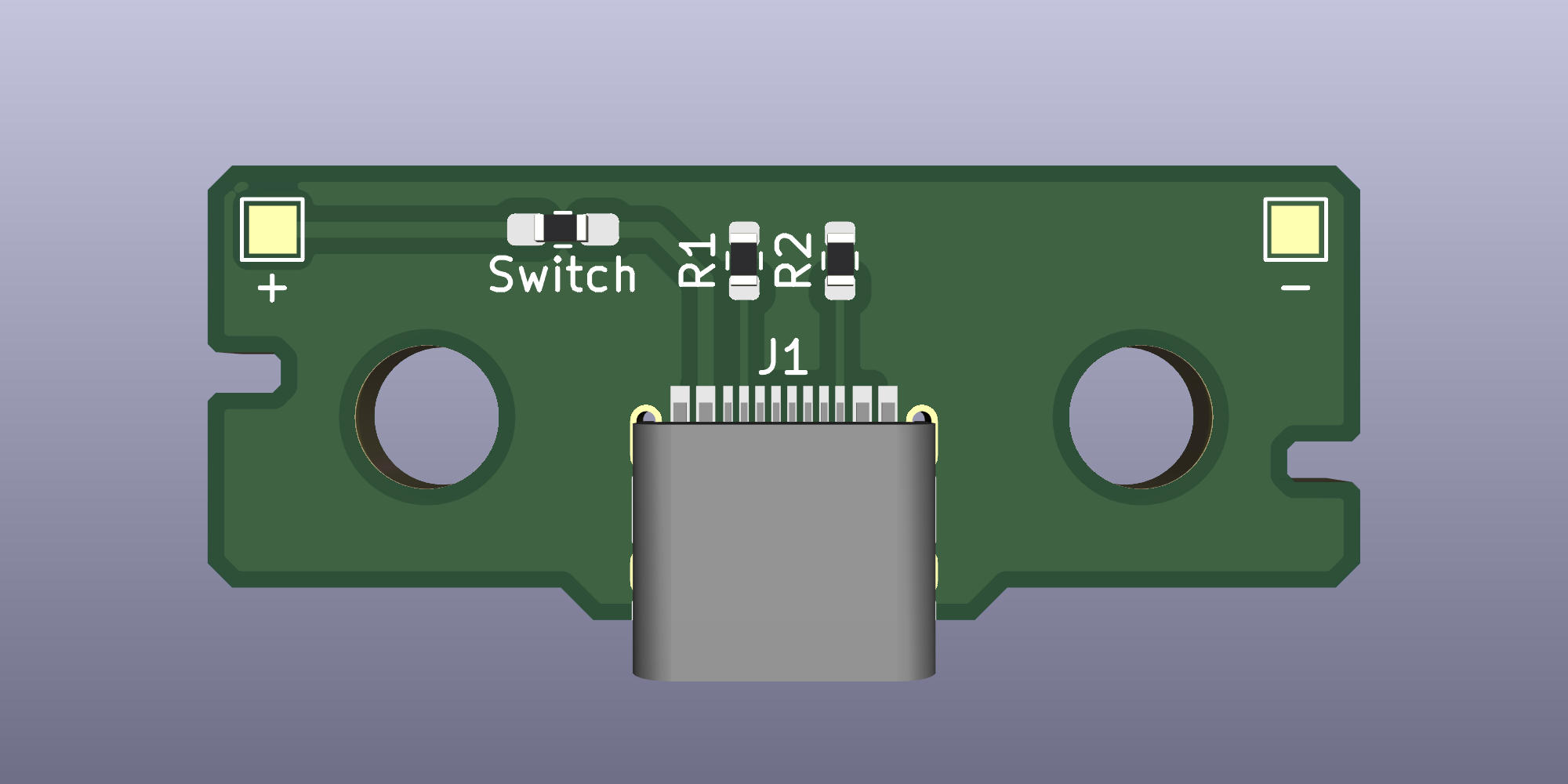

A replacement board for a Wii U dock, with a USB type C connector.
A small board designed to replace the proprietary Wii U dock charging port with a USB type C port.
Features: Includes pads for 5.1kΩ resistors, to allow the use of 'smart' chargers. Pads on the + output allow the addition of a switch - bridge these pads with a 0Ω resistor if you're not using one. Board is a near drop-in replacement for the original - only a small amount of sanding inside the dock is required. No alteration to the outside of the dock is necessary (unless you add a switch).
Wii u usb c bill of materials (BOM)
3 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USB_C_Receptacle | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J1 |
| 2 | 5.1k | R_0603_1608Metric | R1, R2 |
Wii u usb c design files
The KiCad project lives in the carlansell94/wii-u-usb-c-board repository on GitHub; these links point at the commit this page was built from.
- Layoutwii-u-usb-c.kicad_pcb
- Schematicwii-u-usb-c.kicad_sch
Wii u usb c: common questions
How big is the Wii u usb c PCB?
The Wii u usb c measures 36.1 × 14.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Wii u usb c?
3 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the Wii u usb c design files?
From the carlansell94/wii-u-usb-c-board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Wii u usb c design in my own project?
Yes, under the terms of its GPL-3.0 license, which carlansell94 chose for the repository.
