AW LAN to FFC
About the AW LAN to FFC PCB
AW LAN to FFC is an open source PCB design by cepawiel, published on GitHub under the MIT license. It is a 2-layer board measuring 41.2 × 23.3 mm, with 2 components from 2 distinct parts.
Other key parts include the LAN_PCB_Connector and G2_FFC.
From the project

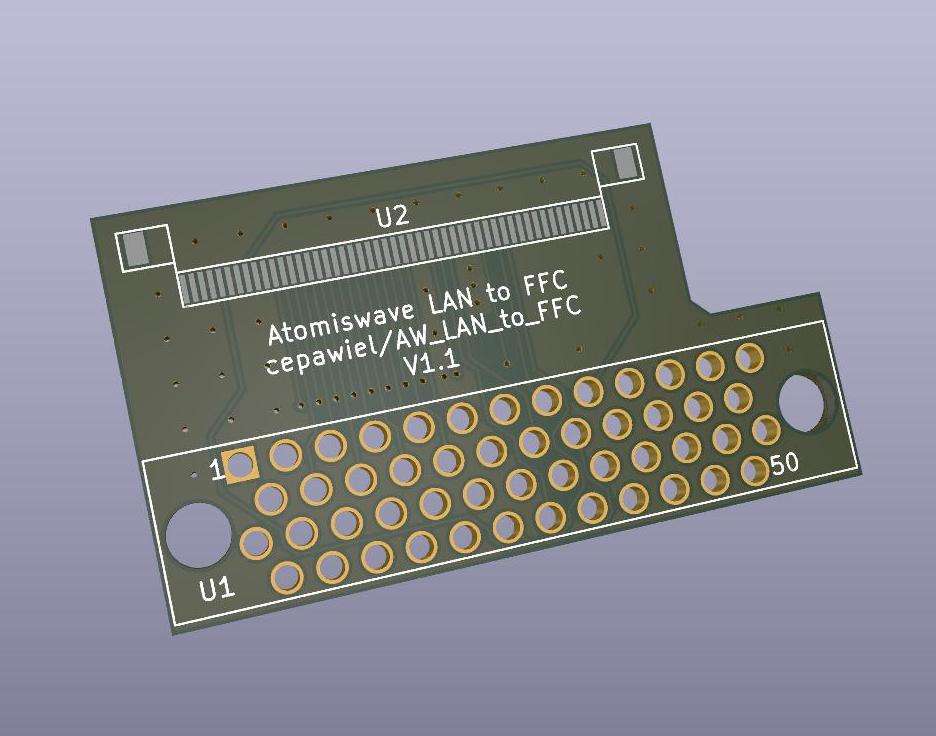

PCB to attach Atomiswave LAN adatpter to Dreamcast (acts as BBA) using FFC
Main components on the AW LAN to FFC
AW LAN to FFC bill of materials (BOM)
2 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LAN_PCB_Connector | AW_LAN_PCB_Connector | U1 |
| 1 | G2_FFC | G2_FFC | U2 |
AW LAN to FFC design files
The KiCad project lives in the cepawiel/AW_LAN_to_FFC repository on GitHub; these links point at the commit this page was built from.
- LayoutAtomiswaveNetwork.kicad_pcb
- SchematicAtomiswaveNetwork.kicad_sch
AW LAN to FFC: common questions
How big is the AW LAN to FFC PCB?
The AW LAN to FFC measures 41.2 × 23.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the AW LAN to FFC?
2 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the AW LAN to FFC design files?
From the cepawiel/AW_LAN_to_FFC repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the AW LAN to FFC design in my own project?
Yes, under the terms of its MIT license, which cepawiel chose for the repository.
