DC G2 TP FFC
About the DC G2 TP FFC PCB
DC G2 TP FFC is an open source PCB design by cepawiel, published on GitHub under the MIT license. It is a 2-layer board measuring 35.1 × 57.2 mm, with 2 components from 2 distinct parts.
Other key parts include the G2_FFC.
From the project

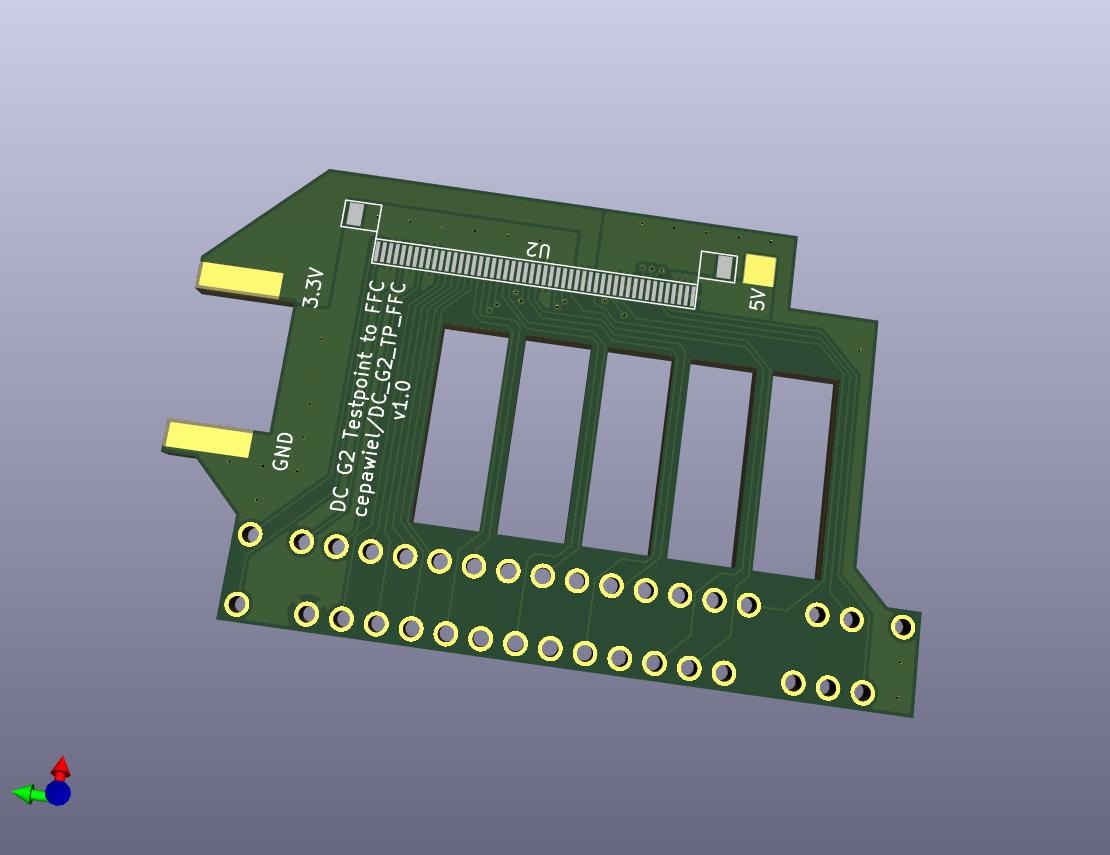

Dreamcast G2 Test Points to FFC Connector
Main components on the DC G2 TP FFC
DC G2 TP FFC bill of materials (BOM)
2 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | G2_FFC | G2_Testpoints | U1 |
| 1 | G2_FFC | G2_FFC | U2 |
DC G2 TP FFC design files
The KiCad project lives in the cepawiel/DC_G2_TP_FFC repository on GitHub; these links point at the commit this page was built from.
- LayoutG2_Testpoints_FFC.kicad_pcb
- SchematicG2_Testpoints_FFC.kicad_sch
DC G2 TP FFC: common questions
How big is the DC G2 TP FFC PCB?
The DC G2 TP FFC measures 35.1 × 57.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the DC G2 TP FFC?
2 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the DC G2 TP FFC design files?
From the cepawiel/DC_G2_TP_FFC repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the DC G2 TP FFC design in my own project?
Yes, under the terms of its MIT license, which cepawiel chose for the repository.
