TascamDR40usbc
About the TascamDR40usbc PCB
TascamDR40usbc is an open source PCB design by circuitsable, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 8.6 × 9.2 mm, with 4 components from 3 distinct parts.
By type, the board carries 2 connectors and 2 resistors.
From the project

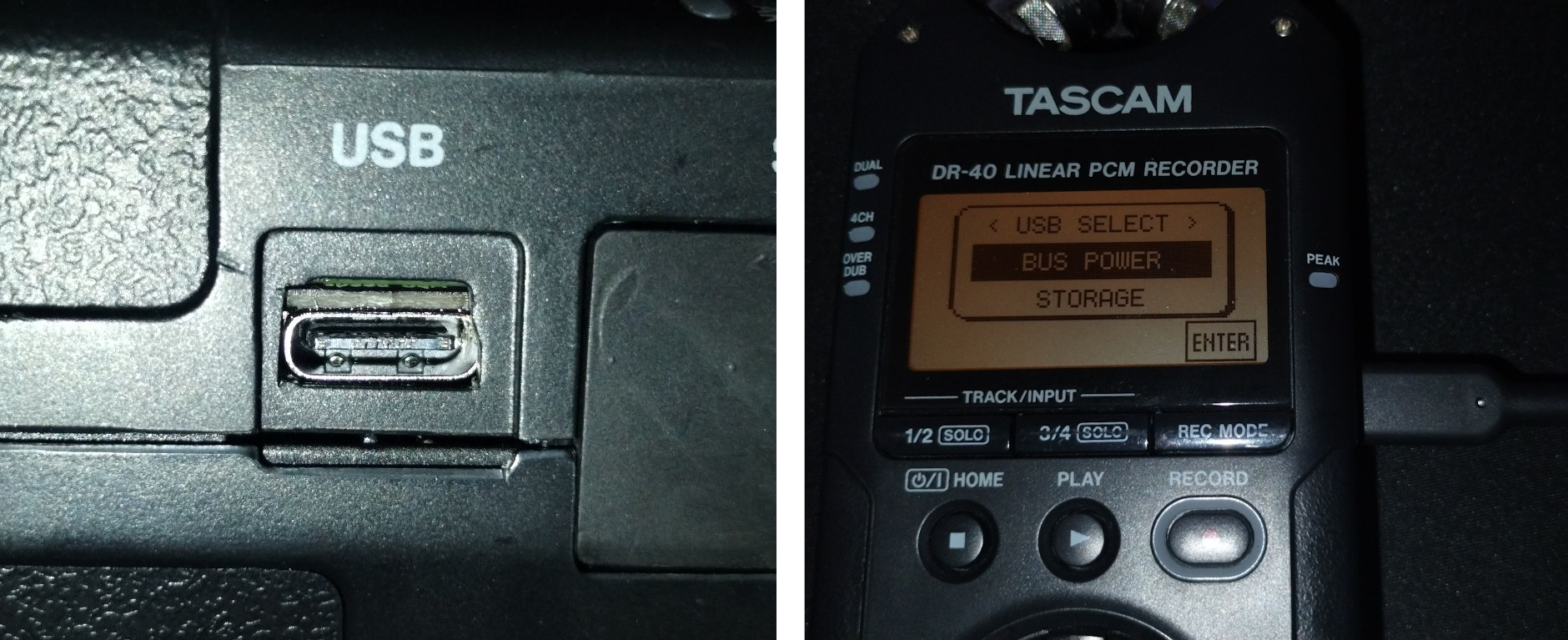

A PCB to turn Tascam's DR-40 into a USB C device
This is an adapter PCB that replaces the DR-40's USB mini port with a host charging capable USB C port.
I have done USB C mods to many of the devices I own, and I wanted to make one for my DR-40. This may also work on a DR-40X, but I do not own one to confirm this. This may work on any SMD USB mini port, I have used this pcb on several devices that are not the DR-40.
TascamDR40usbc bill of materials (BOM)
4 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USB_B_Mini | USB_Mini-B_Wuerth_65100516121_Horizontal | J1 |
| 1 | USB_C_Receptacle_USB2.0 | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J2 |
| 2 | 5.1K | R_0402_1005Metric | R1, R2 |
TascamDR40usbc design files
The KiCad project lives in the circuitsable/TascamDR40usbc repository on GitHub; these links point at the commit this page was built from.
TascamDR40usbc: common questions
How big is the TascamDR40usbc PCB?
The TascamDR40usbc measures 8.6 × 9.2 mm, has 2 copper layers and is 0.955 mm thick.
How many components are on the TascamDR40usbc?
4 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the TascamDR40usbc design files?
From the circuitsable/TascamDR40usbc repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the TascamDR40usbc design in my own project?
Yes, under the terms of its GPL-3.0 license, which circuitsable chose for the repository.
