SD2SP2
About the SD2SP2 PCB
SD2SP2 is an open source PCB design by citrus3000psi, published on GitHub under the MIT license. It is a 2-layer board measuring 36.5 × 19.5 mm, with 3 components from 3 distinct parts.
By type, the board carries 2 connectors and 1 capacitor.
From the project

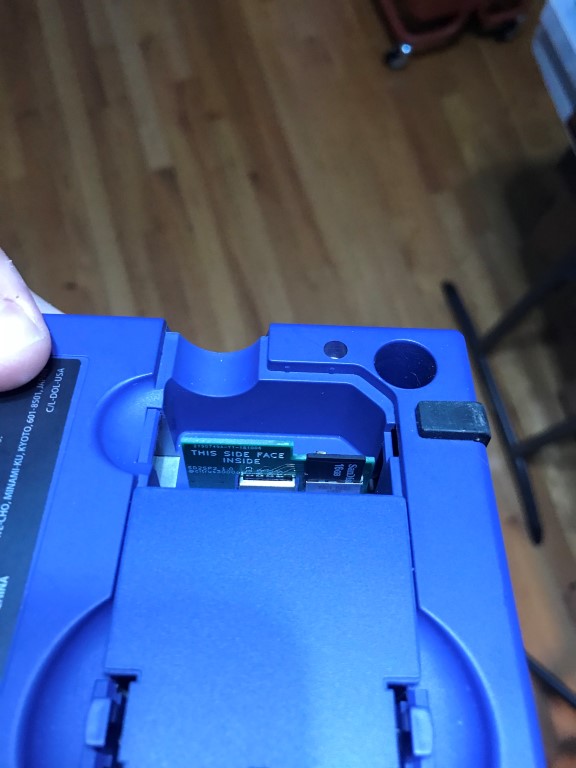

Micro SD Card Adapter for Gamecube's Serial Port 2
This PCB allows a MicroSD card to adapted into the serial port2 of the gamecube.
The PCB must be ordered in 1.2mm thickness. Surface finish must be ENIG at minimum. I recommened https://jlcpcb.com for PCB production
C1: 0805 22u Capactior (10V Min) - DigiKey Part# 1276-6780-1-ND
J1: MicroSD Slot - DigiKey Part# WM6825CT-ND
Unassembled kits will be available for purchase at my webstore soon: https://shop.dansprojects.com
SD2SP2 bill of materials (BOM)
3 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Micro_SD_Card | 1050270001 | J1 |
| 1 | SerialPort | SP2_FootPrint | P1 |
| 1 | .1 | C_0805_HandSoldering | C1 |
SD2SP2 design files
The KiCad project lives in the citrus3000psi/SD2SP2 repository on GitHub; these links point at the commit this page was built from.
SD2SP2: common questions
How big is the SD2SP2 PCB?
The SD2SP2 measures 36.5 × 19.5 mm, has 2 copper layers and is 1.2 mm thick.
How many components are on the SD2SP2?
3 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SD2SP2 design files?
From the citrus3000psi/SD2SP2 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the SD2SP2 design in my own project?
Yes, under the terms of its MIT license, which citrus3000psi chose for the repository.
