Design of-3-bit-Flash-ADC-using-Inverter-Threshold-Comparator and-Transmission-Gate-Switch
About the Design of-3-bit-Flash-ADC-using-Inverter-Threshold-Comparator and-Transmission-Gate-Switch PCB
Design of-3-bit-Flash-ADC-using-Inverter-Threshold-Comparator and-Transmission-Gate-Switch is an open source PCB design by DarshanDattaNaik, published on GitHub. It is a board, with 32 components from 9 distinct parts.
Other key parts include the plot_v1, adc_bridge_7, darshan_naik_priority_encoder and adc_bridge_1.
From the project
Inverter Threshold Comparator and Transmission Gate Switch
Inverter Threshold Comparator and Transmission Gate Switch
The Sample and Hold circuit is designed using Transmission Gate Switch(TGS) by varying the W and L of PMOS and NMOS and Capacitor value in TGS to get required sampling and operating frequency.

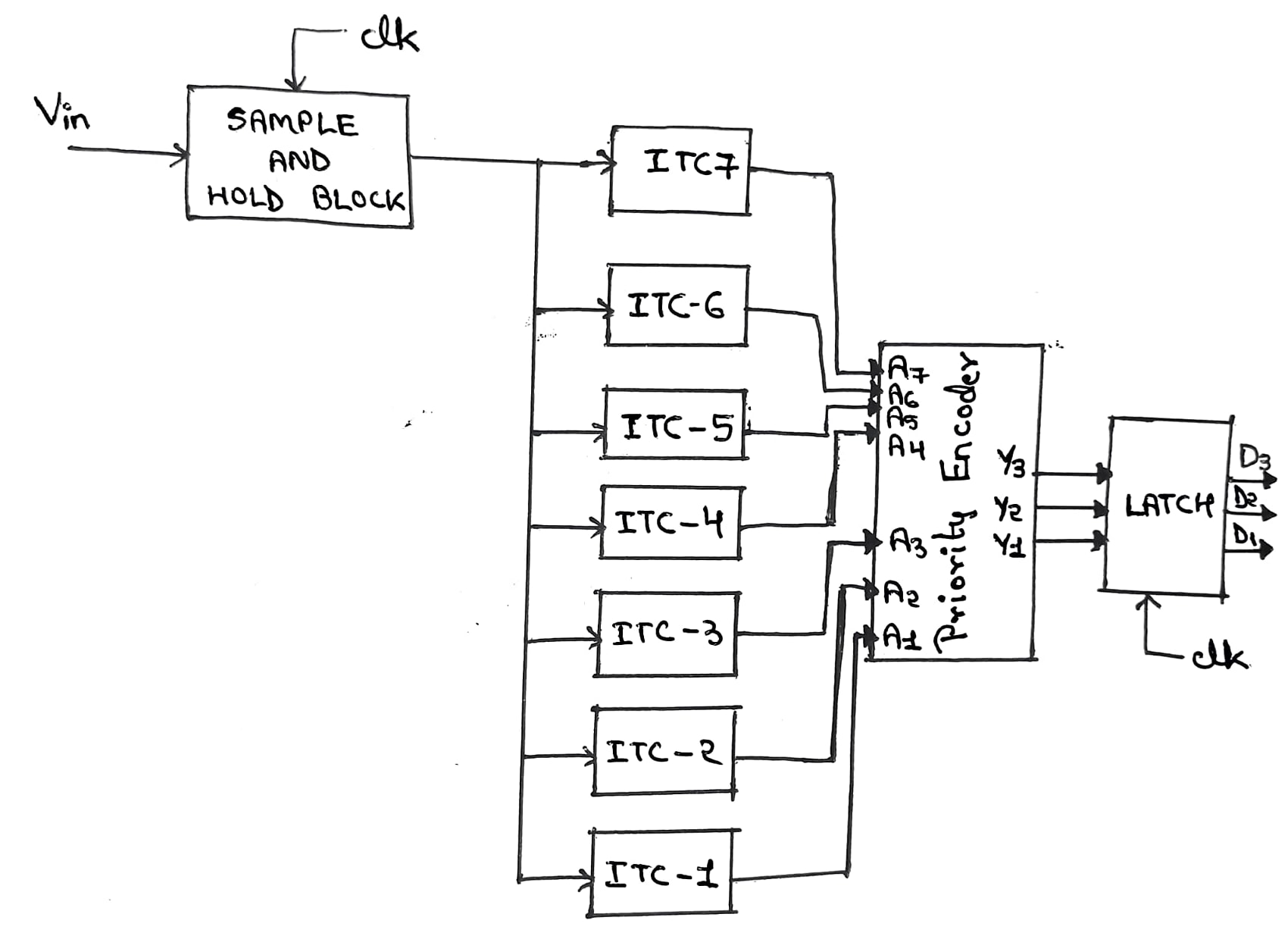

The sampled input is given to Seven Comparators with desired reference voltages. Seven different voltage values between 0 V and 1 V are used as reference voltage for each comparator. The L and W values of MOS transistors used in the inverter are varied to obtain different threshold voltages for different ITCs. These modified threshold voltages…
