Two led indicator
About the Two led indicator PCB
Two led indicator is an open source PCB design by Deepu-Bhai5, published on GitHub. It is a 2-layer board measuring 35.5 × 20.8 mm, with 5 components from 3 distinct parts.
By type, the board carries 2 diodes, 2 resistors and 1 connector.
From the project
A beginner KiCad PCB design project for a two-channel LED indicator, covering schematic capture, PCB layout, routing, DRC validation, and Gerber generation.
A beginner PCB design project developed in KiCad as an introduction to the complete PCB design workflow, from schematic capture to manufacturing file generation.

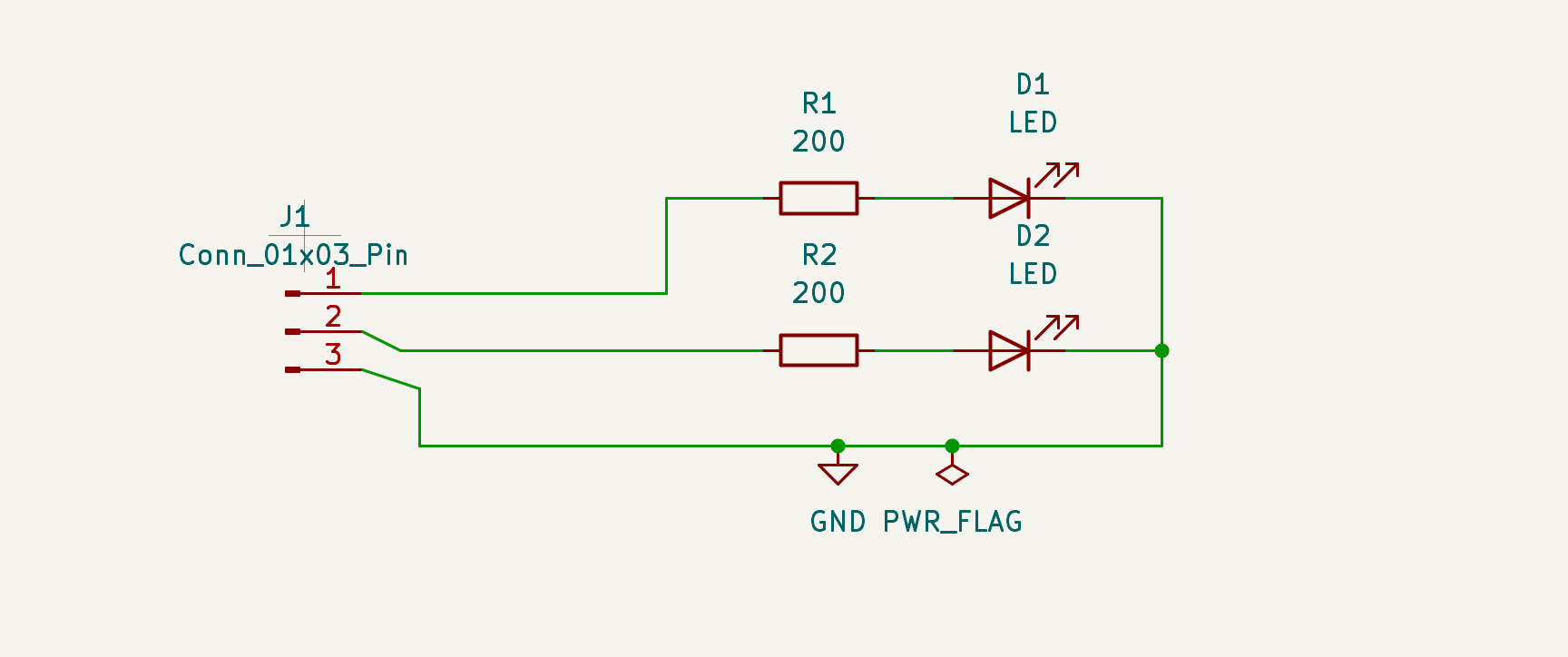

This project is a simple two-channel LED indicator PCB.
Each LED is independently controlled through its own current-limiting resistor, with a common ground connection.
- Learn the KiCad PCB design workflow - Create and validate a schematic - Assign and work with through-hole footprints - Design a two-layer PCB - Route signal and ground connections - Perform PCB Design Rule Checks (DRC) - Generate Gerber and drill files - Review…
Two led indicator bill of materials (BOM)
5 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CONN_01X03_PIN Conn_01x03_Pin | PinHeader_1x03_P2.54mm_Vertical | J1 |
| 2 | LED | LED_D3.0mm | D1, D2 |
| 2 | 200 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2 |
Two led indicator design files
The KiCad project lives in the Deepu-Bhai5/two-led-indicator-pcb repository on GitHub; these links point at the commit this page was built from.
Two led indicator: common questions
How big is the Two led indicator PCB?
The Two led indicator measures 35.5 × 20.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Two led indicator?
5 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Two led indicator design files?
From the Deepu-Bhai5/two-led-indicator-pcb repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Two led indicator design in my own project?
The repository has no license, so all rights stay with Deepu-Bhai5. Use it as a reference, and ask the author before reusing the design.
