Pinguino SMD-4550
About the Pinguino SMD-4550 PCB
Pinguino SMD-4550 is an open source PCB design by fandres, published on GitHub. It is a 2-layer board measuring 25.4 × 25.4 mm, with 54 components from 13 distinct parts.
Other key parts include the PIC18(L)F4550-I/PT. By type, the board carries 41 connectors, 5 capacitors, 3 resistors, 2 diodes, 1 IC and 1 crystal.
From the project

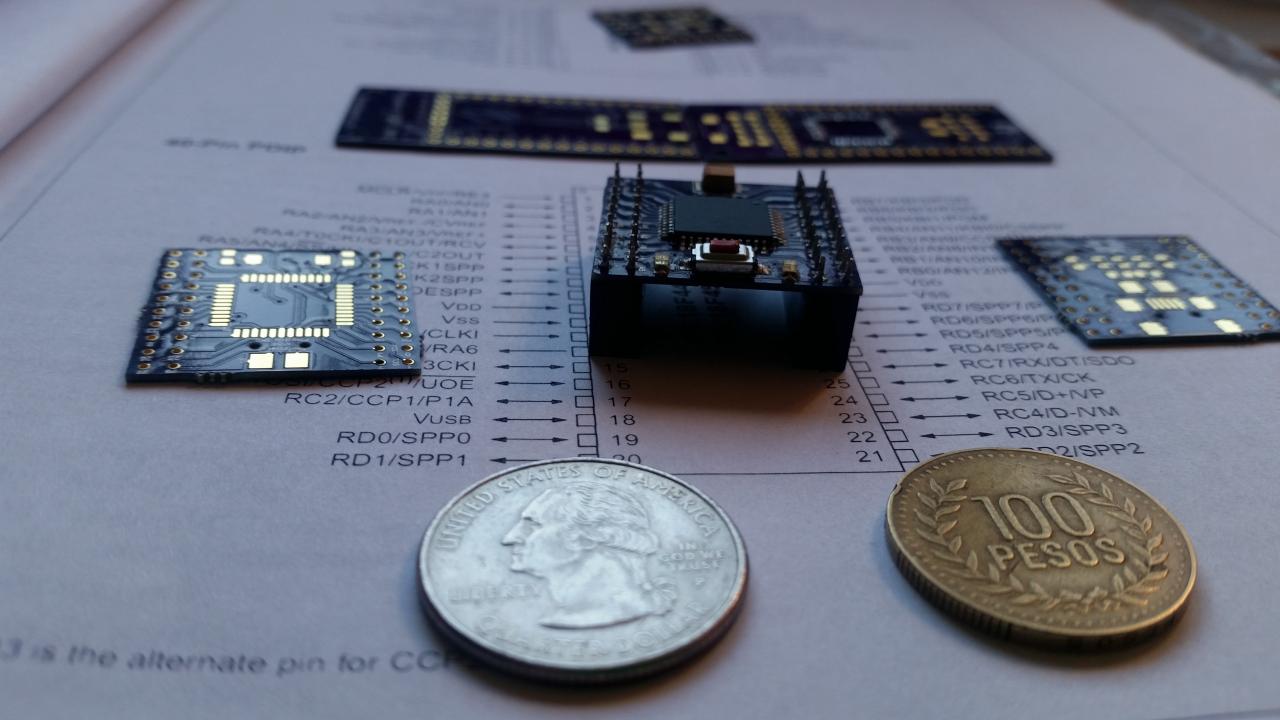

PCB in surface mount of the Pinguino board based on the microcontroller PIC18F4550
This repository is possibly outdated Este Repositorio se probablemente se encuentra desactualizado
Repository migrated to https://gitlab.com/fandres323/pinguinoSMD-4550 Repositorio migrado a https://gitlab.com/fandres323/pinguinoSMD-4550
PCB in surface mount of the Pinguino board based on the microcontroller PIC18F4550
Main components on the Pinguino SMD-4550
Pinguino SMD-4550 bill of materials (BOM)
54 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PIC18(L)F4550-I/PT | TQFP-44_10x10mm_Pitch0.8mm | U1 |
| 1 | Crystal | Crystal_SMD_5032_2Pads | Y1 |
| 1 | uUSB | USB_Mini-B | P1 |
| 40 | CONN_01X01 | Socket_Strip_Straight_1x01 | P2, P3, P4, P5, P6, P7, P8, P9 +32 |
| 1 | Reset | SW_SPST_REED_CT05-XXXX-G1 | SW1 |
| 1 | Run_LED | LED_0805 | D1 |
| 1 | Power_LED | LED_0805 | D2 |
| 2 | 22pF | C_0805 | C1, C2 |
| 1 | 100nF | C_0805 | C3 |
| 1 | 220nF | C_0805 | C4 |
| 1 | 10-100uF | CP_Tantalum_Case-B_EIA-3528-21_Reflow | C5 |
| 2 | 470 | R_0805 | R1, R3 |
| 1 | 10k | R_0805 | R2 |
Pinguino SMD-4550 design files
The KiCad project lives in the fandres/pinguino_SMD-4550 repository on GitHub; these links point at the commit this page was built from.
Pinguino SMD-4550: common questions
How big is the Pinguino SMD-4550 PCB?
The Pinguino SMD-4550 measures 25.4 × 25.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pinguino SMD-4550?
54 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the Pinguino SMD-4550 design files?
From the fandres/pinguino_SMD-4550 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Pinguino SMD-4550 design in my own project?
The repository has no license, so all rights stay with fandres. Use it as a reference, and ask the author before reusing the design.
