Apu m2
About the Apu m2 PCB
Apu m2 is an open source PCB design by florolf, published on GitHub. It is a 4-layer board measuring 29.9 × 50.8 mm, with 17 components from 7 distinct parts.
By type, the board carries 8 capacitors, 7 resistors and 2 connectors.
From the project
M.2 NVMe SSD adapter for PC Engines APU2 boards
This repo contains the hardware design for an adapter/holder combination that allows installing a 2280 M.2 NVMe SSD into a PC Engines APU2 board.

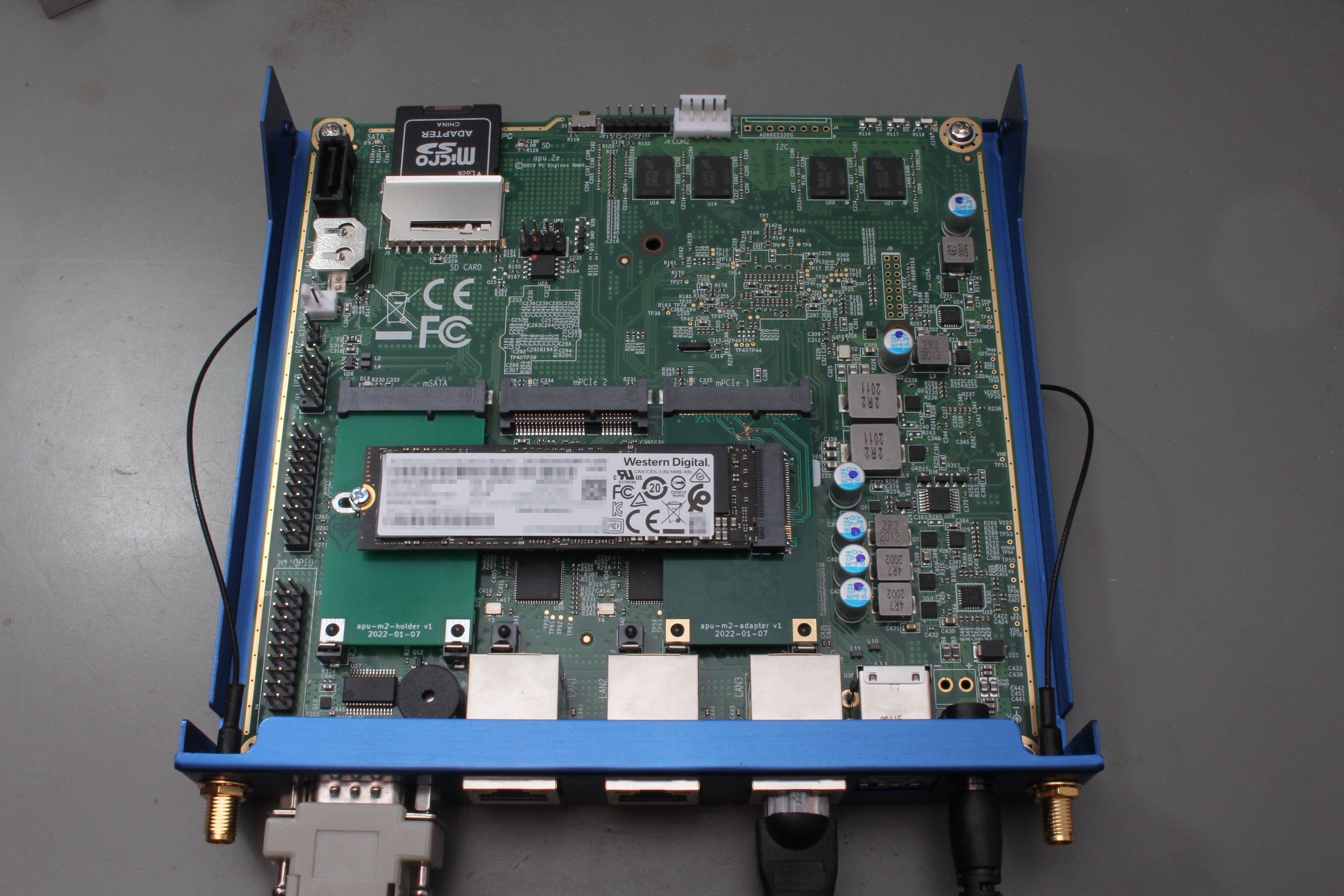

(This picture shows an older version of the design with some bodges applied, the version released here should just work out of the box, see below)
The original apu2 board only allows SD cards/mSATA SSDs for storage. The former is not very performant/durable and the latter is getting rarer/more expensive per GB. There's also a regular SATA connector, but regular SATA SSDs don't fit well into the standard enclosure.
Apu m2 bill of materials (BOM)
17 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Bus_PCI_Express_Mini | mPCIe_Edge | J1 |
| 1 | SM3ZS067U410AMR1000 Bus_M.2_Socket_M JAE Electronics | JAE_SM3ZS067UxxM | J2 |
| 1 | C_Small | C_0402_1005Metric | C1 |
| 3 | 10u | C_0805_2012Metric | C2, C3, C4 |
| 4 | 100n | C_0402_1005Metric | C5, C6, C7, C8 |
| 3 | 10k | R_0402_1005Metric | R1, R2, R3 |
| 4 | 0R | R_0402_1005Metric | R4, R5, R6, R7 |
Apu m2 design files
The KiCad project lives in the florolf/apu-m2 repository on GitHub; these links point at the commit this page was built from.
- Layoutadapter/apu-m2.kicad_pcb
- Schematicadapter/apu-m2.kicad_sch
Apu m2: common questions
How big is the Apu m2 PCB?
The Apu m2 measures 29.9 × 50.8 mm, has 4 copper layers and is 0.9954 mm thick.
How many components are on the Apu m2?
17 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the Apu m2 design files?
From the florolf/apu-m2 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Apu m2 design in my own project?
The repository has no license, so all rights stay with florolf. Use it as a reference, and ask the author before reusing the design.
