Pmod-16led
About the Pmod-16led PCB
Pmod-16led is an open source PCB design by fm4dd, published on GitHub. It is a 2-layer board measuring 34.5 × 52 mm, with 34 components from 3 distinct parts.
By type, the board carries 16 diodes, 16 resistors and 2 connectors.
From the project

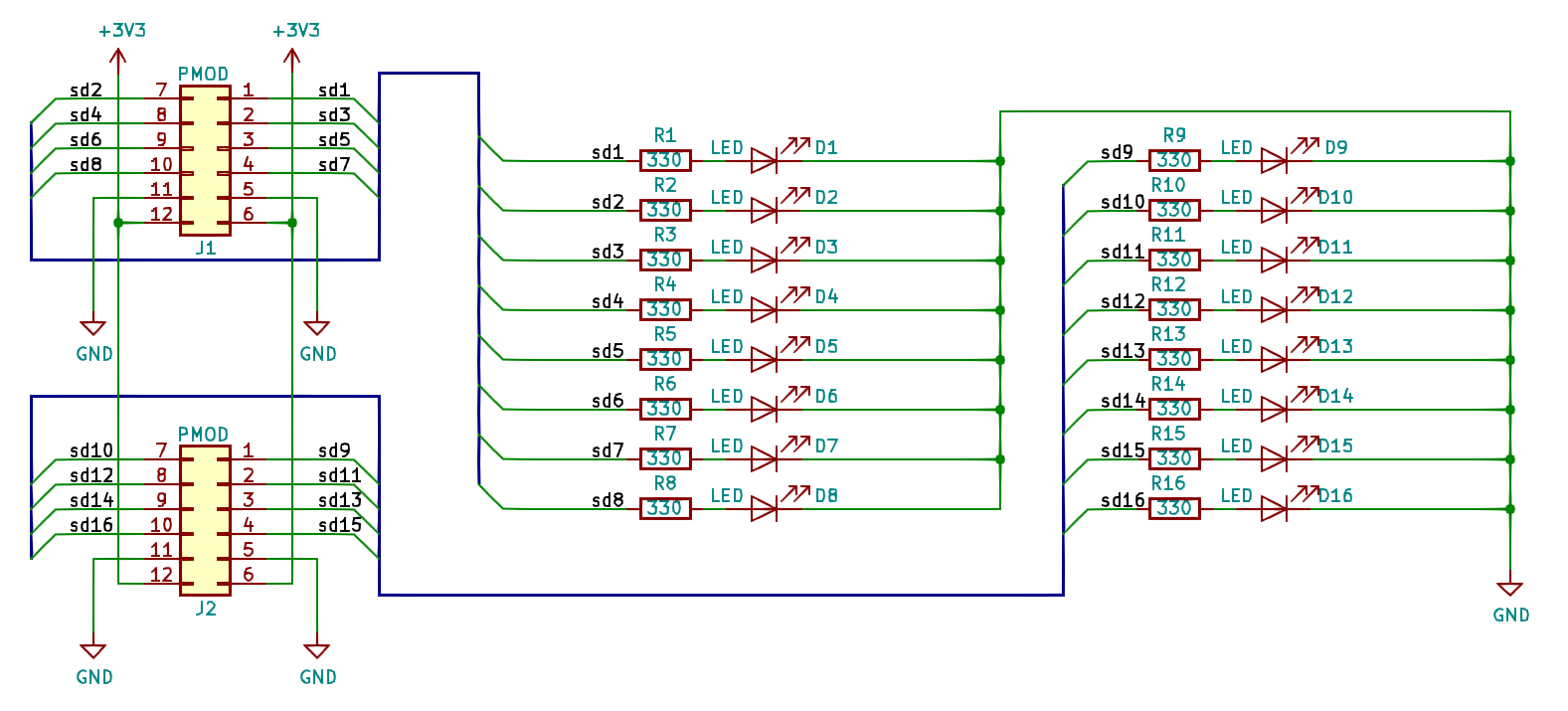

A quad-row PMOD module that provides a set of sixteen LED outputs.
This PMOD provides a sixteen LED display output to FPGA designs via two double-row PMODs. fpga.fm4dd.com
J1# | Label | Description | PMOD1A -----|--------|---------------|------- 1 | D1 | LED D1 | 4 7 | D2 | LED D2 | 3 2 | D3 | LED D3 | 2 8 | D4 | LED D4 | 48 3 | D5 | LED D5 | 47 9 | D6 | LED D6 | 46 4 | D7 | LED D7 | 45 10 | D8 | LED D8 | 44
J2# | Label | Description | PMOD1B -----|--------|---------------|------- 1 | D9 | LED D9 | 43 7 | D10 | LED D10 | 42 2 | D11 | LED D11 | 38 8 | D12 | LED D12 | 36 3 | D13 | LED D13 | 44 9 | D14 | LED D14 | 32 4 | D15 | LED D15 | 31 10 | D16 | LED D16…
Pmod-16led bill of materials (BOM)
34 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | PEC20DBAN PMOD Sullins Connector Solutions | PMODHeader_2x06_P2.54mm_Horizontal | J1, J2 |
| 16 | SML-012WT LED Rohm Semiconductor | LED_3020Metric_Pad1.42x2.65mm_HandSolder | D1, D2, D3, D4, D5, D6, D7, D8 +8 |
| 16 | RMCF2010JT1K20 330 Stackpole Electronics Inc | R_2010_5025Metric | R1, R2, R3, R4, R5, R6, R7, R8 +8 |
Pmod-16led design files
The KiCad project lives in the fm4dd/pmod-16led repository on GitHub; these links point at the commit this page was built from.
Pmod-16led: common questions
How big is the Pmod-16led PCB?
The Pmod-16led measures 34.5 × 52 mm, has 2 copper layers and is 0.8 mm thick.
How many components are on the Pmod-16led?
34 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Pmod-16led design files?
From the fm4dd/pmod-16led repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Pmod-16led design in my own project?
The repository has no license, so all rights stay with fm4dd. Use it as a reference, and ask the author before reusing the design.
