Pmod tslide4
About the Pmod tslide4 PCB
Pmod tslide4 is an open source PCB design by fm4dd, published on GitHub. It is a 2-layer board measuring 48 × 36 mm, with 23 components from 6 distinct parts.
By type, the board carries 8 resistors, 4 switches, 4 capacitors and 3 connectors.
From the project
A double-row PMOD module that provides four push-button and four slide switch data inputs.

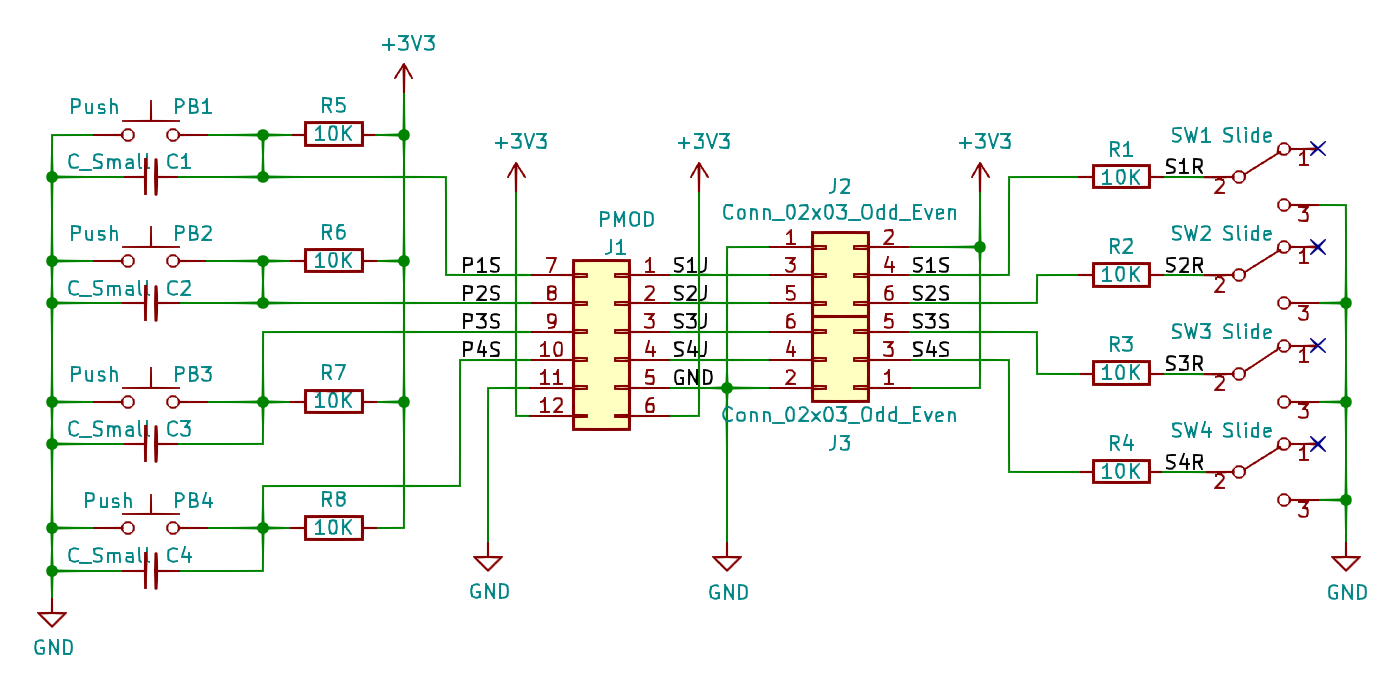

This PMOD provides four slide switch and four touch-button inputs to FPGA designs via a single double-row PMOD. The four slide switches can be individually disabled through two sets of jumpers (J2 and J3, signal S1-S4). This can free up IO pins on the IceBreaker v1.0 board if only push-buttons are needed. The Icebreaker has only 24 multi-purpose IO, which creates a challenge for advanced designs. Push buttons use inverse logic, the button press creates a "LOW" signal.
Pmod tslide4 bill of materials (BOM)
23 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PEC20DBAN PMOD Sullins Connector Solutions | PMODHeader_2x06_P2.54mm_Horizontal | J1 |
| 2 | 68786-102LF Conn_02x03_Odd_Even Amphenol ICC (FCI) | PinHeader_2x03_P2.54mm_Vertical | J2, J3 |
| 4 | 3-1825910-5 Push TE Connectivity ALCOSWITCH | SW_PUSH_6mm | PB1, PB2, PB3, PB4 |
| 4 | OS102011MS2QN1 Slide C&K | SlideSW_SS12-D01 | SW1, SW2, SW3, SW4 |
| 4 | K105Z20Y5VF5TL2 C_Small Vishay BC Components | C_Disc_D3.0mm_W1.6mm_P2.50mm | C1, C2, C3, C4 |
| 8 | RNMF14FTC10K0 10K Stackpole Electronics Inc | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R1, R2, R3, R4, R5, R6, R7, R8 |
Pmod tslide4 design files
The KiCad project lives in the fm4dd/pmod-tslide4 repository on GitHub; these links point at the commit this page was built from.
Pmod tslide4: common questions
How big is the Pmod tslide4 PCB?
The Pmod tslide4 measures 48 × 36 mm, has 2 copper layers and is 0.8 mm thick.
How many components are on the Pmod tslide4?
23 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Pmod tslide4 design files?
From the fm4dd/pmod-tslide4 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Pmod tslide4 design in my own project?
The repository has no license, so all rights stay with fm4dd. Use it as a reference, and ask the author before reusing the design.
