Raspberry Pi Pico USB-C Mod

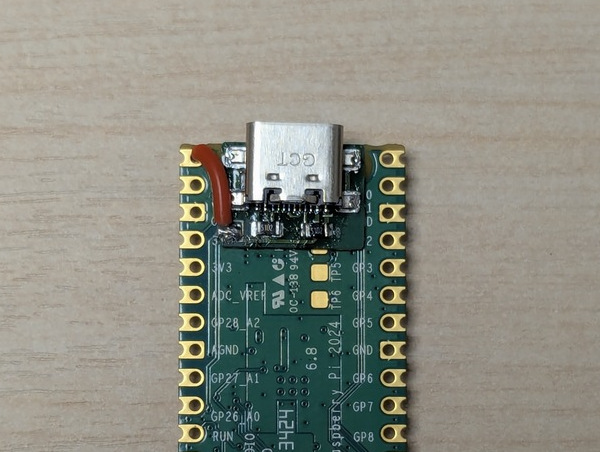

This repository contains an adapter board for RPI Pico USB-C mod. It should be compatible with all versions of RPI Pico family (Pico, Pico W, Pico W, Pico WH, Pico 2, Pico 2 W), although I've designed to mod a Pico 2 W.
It supports both USB 2.0 data and power, just like micro-USB did.
The adapter board PCB GCT USB4110-GF-A 51k Ohm 0805 resistors x2 Some wires
You somehow need to make the adapter board PCB. I've ordered through JLCPCB. The thickness was 0.8mm.
Rpi pico usb c mod bill of materials (BOM)
3 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_GCT_USB4110 | J1 |
| 2 | R | R_0805_2012Metric | R1, R2 |
