Ai unleashes chaos
About the Ai unleashes chaos PCB
Ai unleashes chaos is an open source PCB design by gallicchio, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 100 mm, with 66 components from 28 distinct parts.
Other key parts include the LF412CDR, MPY634KU/1K, A0515S-2WR2, CJ78L12 and CJ79L12. By type, the board carries 29 capacitors, 20 resistors, 7 ICs, 5 connectors, 1 fuse and 1 switch.
From the project

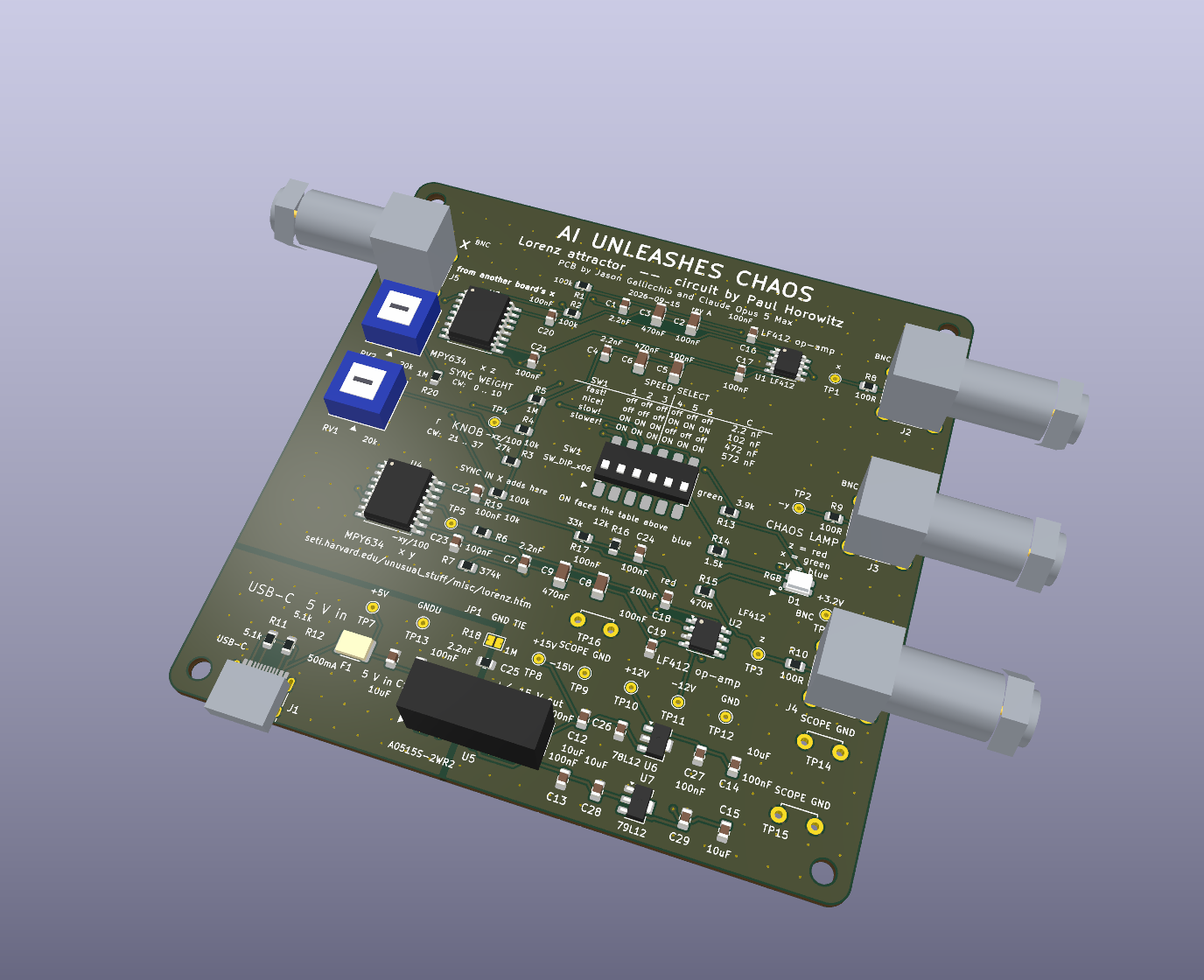

Lorenz Attractor Circuit by Paul Horowitz in KiCAD
Lorenz Attractor Circuit by Paul Horowitz in KiCAD
In graduate school I worked with Paul Horowitz, of Art of Electronics fame. I even contributed a few bits and pieces to the 3rd edition. (I am thanked in the footnotes, one of which simply says, "Jason, again.") This started by asking Claude, "I want you to build a nice little present for Paul, which could also live on as an open source project and a kit that people could build." Watch Paul's Interview with Ladyada to get a sense for the guy.
Main components on the Ai unleashes chaos
Ai unleashes chaos bill of materials (BOM)
66 components, 28 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | LF412CDR LF412 | SOIC-8_3.9x4.9mm_P1.27mm | U1, U2 |
| 2 | MPY634KU/1K MPY634 | SOIC-16W_7.5x10.3mm_P1.27mm | U3, U4 |
| 1 | A0515S-2WR2 | DCDC_SIP_A05xxS_1W_2W | U5 |
| 1 | CJ78L12 78L12 | SOT-89-3 | U6 |
| 1 | CJ79L12 79L12 | SOT-89-3 | U7 |
| 1 | TYPE-C-31-M-12 USB-C | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J1 |
| 4 | BNC-KYWE-295-W4-N BNC | BNC_KYWE_RightAngle | J2, J3, J4, J5 |
| 1 | MF-MSMF050-2 500mA | PTC_1812_4532Metric | F1 |
| 2 | 3386P-1-203LF 20k | Potentiometer_Bourns_3386P_Vertical | RV1, RV2 |
| 1 | DSIC06LSGET SW_DIP_x06 | SW_DIP_SPSTx06_KingTek_DSIC06_P2.54mm | SW1 |
| 1 | MHPA3528CRGBCT RGB | LED_RGB_PLCC4_3.5x2.8mm | D1 |
| 4 | CL21C222JBFNNNE 2.2nF | C_0805_2012Metric | C1, C4, C7, C25 |
| 3 | 1206N104J500CT 100nF | C_1206_3216Metric | C2, C5, C8 |
| 3 | CC1206KKX7R9BB474 470nF | C_1206_3216Metric | C3, C6, C9 |
| 5 | CL21A106KAYNNNE 10uF | C_0805_2012Metric | C10, C12, C13, C14, C15 |
| 14 | CC0805KRX7R9BB104 100nF | C_0805_2012Metric | C11, C16, C17, C18, C19, C20, C21, C22 +6 |
| 3 | 0805W8F1003T5E 100k | R_0805_2012Metric | R1, R2, R19 |
| 1 | 0805W8F2702T5E 27k | R_0805_2012Metric | R3 |
| 2 | 0805W8F1002T5E 10k | R_0805_2012Metric | R4, R6 |
| 3 | 0805W8F1004T5E 1M | R_0805_2012Metric | R5, R18, R20 |
Show 8 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | FRC0805F3743TS 374k | R_0805_2012Metric | R7 |
| 3 | 0805W8F1000T5E 100R | R_0805_2012Metric | R8, R9, R10 |
| 2 | 0805W8F5101T5E 5.1k | R_0805_2012Metric | R11, R12 |
| 1 | 0805W8F3901T5E 3.9k | R_0805_2012Metric | R13 |
| 1 | 0805W8F1501T5E 1.5k | R_0805_2012Metric | R14 |
| 1 | 0805W8F4700T5E 470R | R_0805_2012Metric | R15 |
| 1 | 0805W8F1202T5E 12k | R_0805_2012Metric | R16 |
| 1 | 0805W8F3302T5E 33k | R_0805_2012Metric | R17 |
Ai unleashes chaos design files
The KiCad project lives in the gallicchio/ai_unleashes_chaos repository on GitHub; these links point at the commit this page was built from.
Ai unleashes chaos: common questions
How big is the Ai unleashes chaos PCB?
The Ai unleashes chaos measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Ai unleashes chaos?
66 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Ai unleashes chaos design files?
From the gallicchio/ai_unleashes_chaos repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Ai unleashes chaos design in my own project?
Yes, under the terms of its MIT license, which gallicchio chose for the repository.
