LED PANEL METER 26x45mm
About the LED PANEL METER 26x45mm PCB
LED PANEL METER 26x45mm is an open source PCB design by galopago, published on GitHub. It is a 2-layer board measuring 51 × 32 mm, with 0 components from 0 distinct parts.
From the project
Different "drilling helpers" for mounting diverse panel devices. Those templates can be produced in different media: paper or PCB.

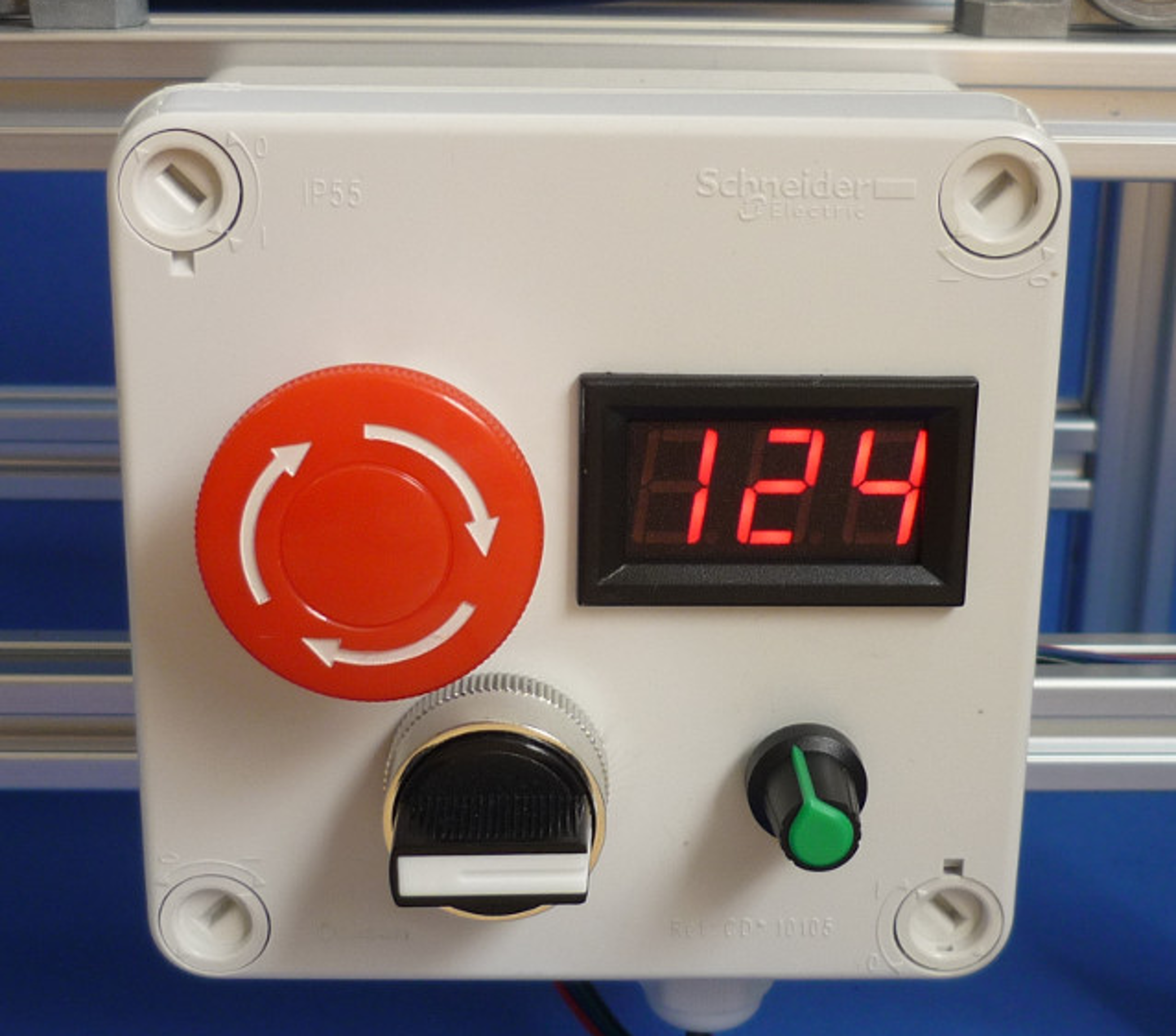

Different "drilling helpers" for mounting an LED PANEL METER. Those templates can be produced in different media: paper or PCB.
LED PANEL METER 26x45mm design files
The KiCad project lives in the galopago/panel-mount-drill-layouts repository on GitHub; these links point at the commit this page was built from.
