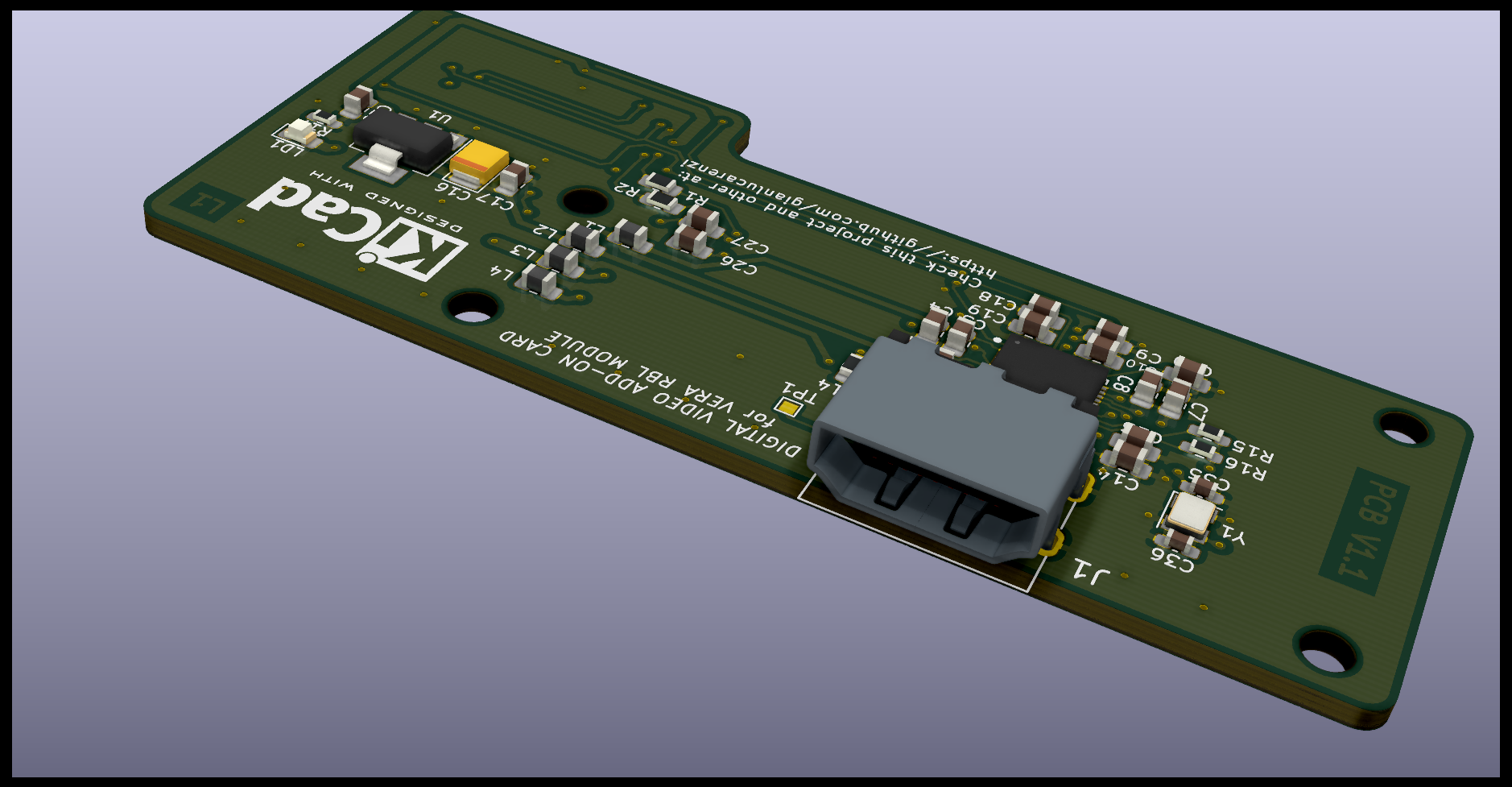

Vera-HDMI-Expansion
About the Vera-HDMI-Expansion PCB
Vera-HDMI-Expansion is an open source PCB design by gianlucarenzi, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 89 × 37 mm, with 63 components from 18 distinct parts.
Other key parts include the AMS1117-1.8 and MS9288C. By type, the board carries 36 capacitors, 17 resistors, 4 inductors, 2 ICs, 2 connectors and 1 crystal.
From the project
This project provides the complete design files for an HDMI expansion board specifically created for the VERA-MODULE-RBL. Its purpose is to convert the VERA module's native video signal into a standard HDMI output, allowing it to be easily connected to modern monitors and TVs.
This project provides the complete design files for an HDMI expansion board specifically created for the VERA-MODULE-RBL. Its purpose is to convert the VERA module's native video signal into a standard HDMI output, allowing it to be easily connected to modern monitors and TVs.
The project was designed in KiCad, and all source files are included for viewing, modification, and manufacturing.
Main components on the Vera-HDMI-Expansion
Vera-HDMI-Expansion bill of materials (BOM)
63 components, 18 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AMS1117-1.8 | SOT-223-3_TabPin2 | U1 |
| 1 | MS9288C | MS9288C | U2 |
| 1 | 24.576Mhz | Crystal_SMD_EuroQuartz_MT-4Pin_3.2x2.5mm | Y1 |
| 1 | C720616 CONN_HDMI_A | CONN_HDMI-A | J1 |
| 1 | CONN_SMD_HEADER_BOX_02X08_ODD_EVEN_2.54MM CONN_SMD_HEADER_BOX_02x08_Odd_Even_2.54mm | PinHeader_BOX_2x08_P2.54mm_Vertical_SMD | J2 |
| 1 | C84260 GREEN | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | LD1 |
| 4 | FB080590R100MHZ850MA FB080590R100MHZ850mA | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | L1, L2, L3, L4 |
| 14 | 22UF 22uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C3, C5, C7, C9, C11, C13, C18 +6 |
| 17 | 100NF 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2, C4, C6, C8, C10, C12, C14, C15 +9 |
| 1 | 10UF-20V 10uF-20V | CP_EIA-3528-12_Kemet-T_Pad1.50x2.35mm_HandSolder | C16 |
| 2 | 470NF 470nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C26, C27 |
| 2 | 22pF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C35, C36 |
| 4 | 100R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2, R10, R13 |
| 3 | 75R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3, R4, R5 |
| 4 | 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R6, R9, R11, R12 |
| 4 | 2K7 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R7, R8, R15, R16 |
| 1 | 1K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R14 |
| 1 | 560R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R17 |
Vera-HDMI-Expansion design files
The KiCad project lives in the gianlucarenzi/Vera-HDMI-Expansion repository on GitHub; these links point at the commit this page was built from.
Vera-HDMI-Expansion: common questions
How big is the Vera-HDMI-Expansion PCB?
The Vera-HDMI-Expansion measures 89 × 37 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Vera-HDMI-Expansion?
63 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Vera-HDMI-Expansion design files?
From the gianlucarenzi/Vera-HDMI-Expansion repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Vera-HDMI-Expansion design in my own project?
Yes, under the terms of its GPL-3.0 license, which gianlucarenzi chose for the repository.
