PCB Color Palette
About the PCB Color Palette
PCB Color Palette is an open source PCB design by Hanqaqa, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 54 × 85.6 mm, with 0 components from 0 distinct parts.
From the project
PCB Color Palette for showcasing all possible colors in a PCB.

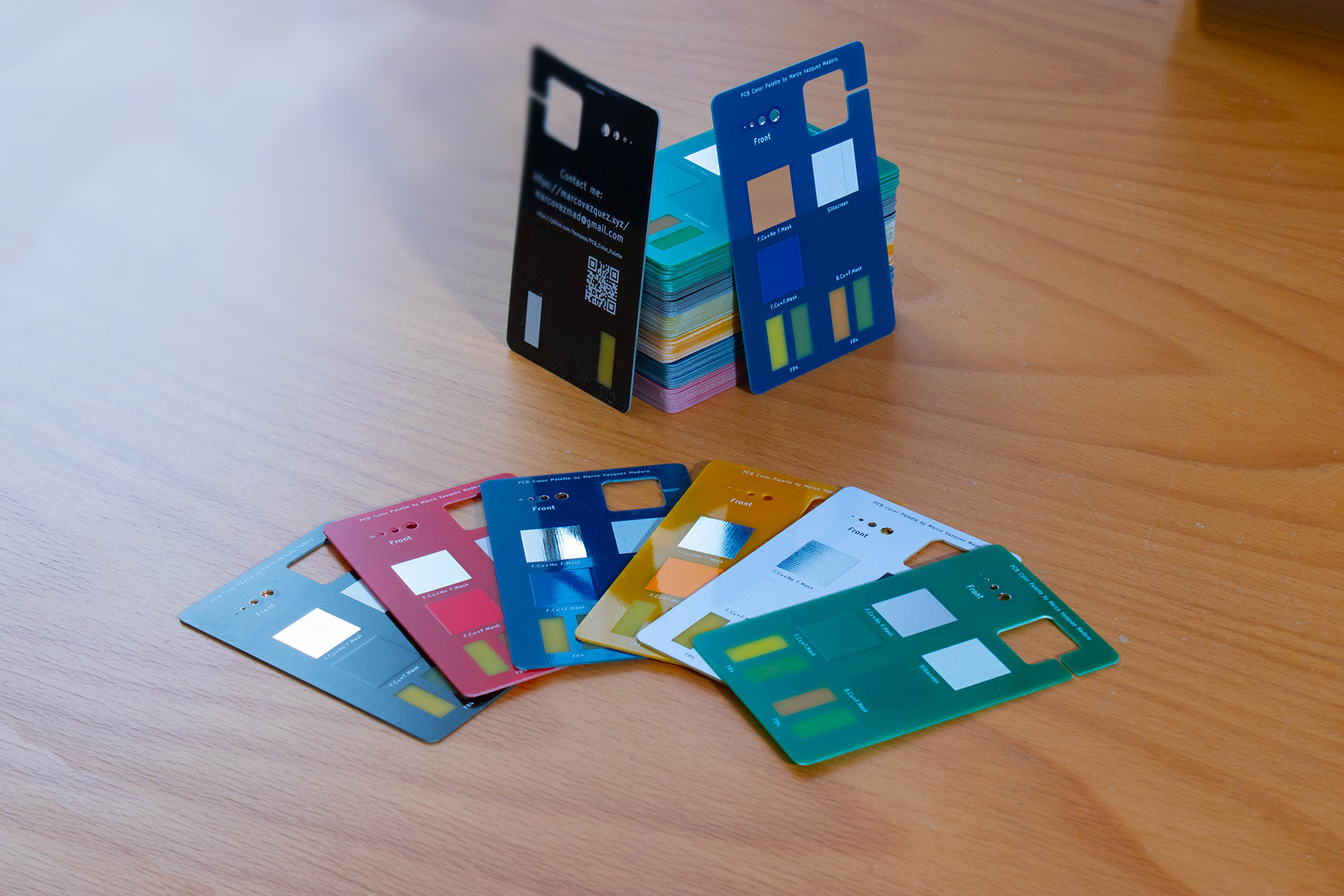

A PCB Color Palette where you can see all the possible colors in a 2 layer PCB, useful for reference in creating PCB Art:
Start creating your design by layers. This video by TwinkleTwinkie gives a good tutorial on how the whole proccess works. Keep in mind how Unexposed Copper, Exposed Copper, SilkScreen and Naked FR4 look like. Try to play with those combinations. He also shows a good overview of the color palette you will have:
PCB Color Palette design files
The KiCad project lives in the Hanqaqa/PCB_Color_Palette repository on GitHub; these links point at the commit this page was built from.
PCB Color Palette: common questions
How big is the PCB Color Palette?
The PCB Color Palette measures 54 × 85.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PCB Color Palette?
0 components, from 0 distinct parts. The full bill of materials is listed on this page.
Where can I download the PCB Color Palette design files?
From the Hanqaqa/PCB_Color_Palette repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the PCB Color Palette design in my own project?
Yes, under the terms of its GPL-3.0 license, which Hanqaqa chose for the repository.
