Quick
About the Quick PCB
Quick is an open source PCB design by He0xD4C0, published on GitHub. It is a board, with 1 components from 1 distinct parts.
From the project
BoardSpec to EasyEDA Pro: declarative connectivity, deterministic validation, netlist/BOM export, and MCP layout tooling.
This example is the v0.3.1 end-to-end acceptance project for Quick PCB. It starts from a coordinate-free BoardSpec, creates a native EasyEDA Pro schematic and PCB, reads both documents back through the official Bridge, and includes the files needed to fabricate and assemble the board.

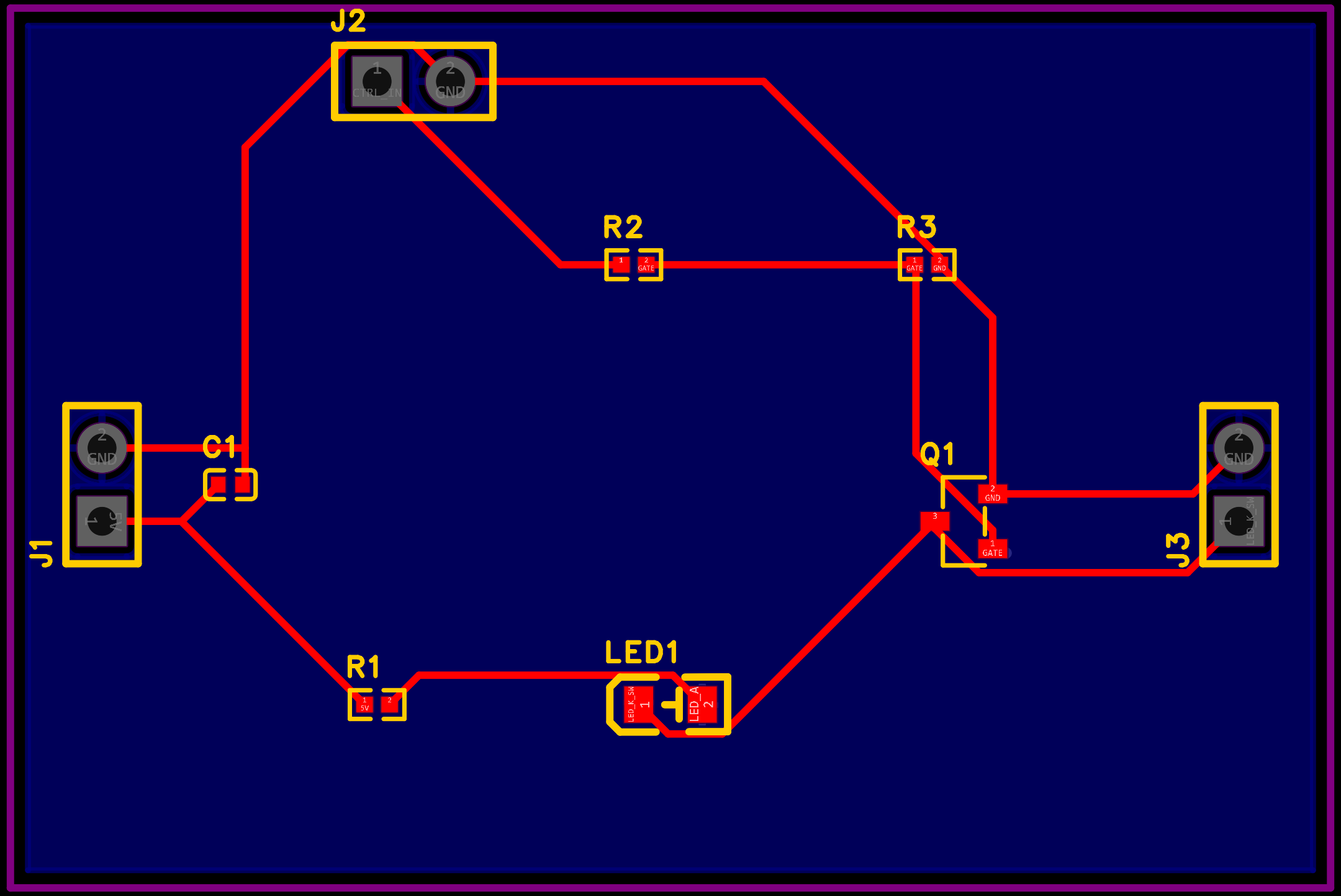

The board switches a low-current green LED with a 2N7002 N-channel MOSFET.
- J1: regulated 5 V input, pin 1 = 5V and pin 2 = GND. - J2: logic input, pin 1 = CTRLIN and pin 2 = GND. Use 0 V for off and 3.3 V or 5 V for on. - J3: switched-node test header, pin 1 = LEDK_SW and pin 2 = GND. - R1: 2.2 kΩ LED…
Quick bill of materials (BOM)
1 components, 1 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 100NF 100nF | C1 |
Quick design files
The KiCad project lives in the He0xD4C0/quick-pcb repository on GitHub; these links point at the commit this page was built from.
Quick: common questions
How many components are on the Quick?
1 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Quick design files?
From the He0xD4C0/quick-pcb repository on GitHub, which has a netlist and the BOM; the links under Design files point to each one.
Can I use the Quick design in my own project?
The repository has no license, so all rights stay with He0xD4C0. Use it as a reference, and ask the author before reusing the design.
