Fanstel kicad library
About the Fanstel kicad library PCB
Fanstel kicad library is an open source PCB design by hemalchevli, published on GitHub. It is a 2-layer board measuring 57.6 × 42.1 mm, with 9 components from 9 distinct parts.
Other key parts include the BC832-V0, BC832-V1, BM832, BM840 and BC805M.
From the project

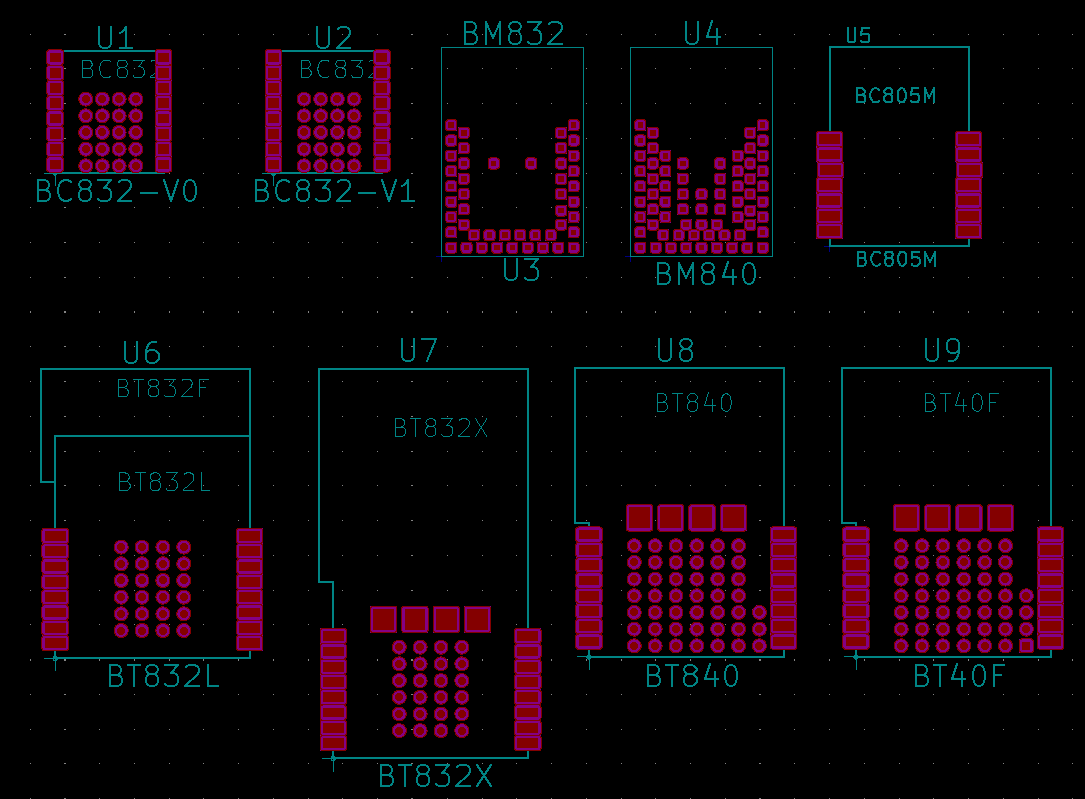

KiCAD symbols and footprints for Fanstel blue-tooth modules.
You can use this as a project template, or you can use the add the Fanstel-modules.lib and Fanstel-modules.pretty into your project.
Main components on the Fanstel kicad library
Fanstel kicad library bill of materials (BOM)
9 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BC832-V0 | BC832-BC832 | U1 |
| 1 | BC832-V1 | BC832-BC832 | U2 |
| 1 | BM832 | BM832-1-BM832 | U3 |
| 1 | BM840 | BM840-1-BM840 | U4 |
| 1 | BC805M | BC805M | U5 |
| 1 | BT832L | BT832-BT832L | U6 |
| 1 | BT832X | BT832X-BT832X | U7 |
| 1 | BT840 | BT840-BT840 | U8 |
| 1 | BT40F | BT40F | U9 |
Fanstel kicad library design files
The KiCad project lives in the hemalchevli/Fanstel-kicad-library repository on GitHub; these links point at the commit this page was built from.
Fanstel kicad library: common questions
How big is the Fanstel kicad library PCB?
The Fanstel kicad library measures 57.6 × 42.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Fanstel kicad library?
9 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the Fanstel kicad library design files?
From the hemalchevli/Fanstel-kicad-library repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Fanstel kicad library design in my own project?
The repository has no license, so all rights stay with hemalchevli. Use it as a reference, and ask the author before reusing the design.
