Due circuit
About the Due circuit PCB
Due circuit is an open source PCB design by henryymliu, published on GitHub under the LGPL-3.0 license. It is a 2-layer board measuring 88.9 × 114.3 mm, with 21 components from 6 distinct parts.
From the project
ENPH459 project

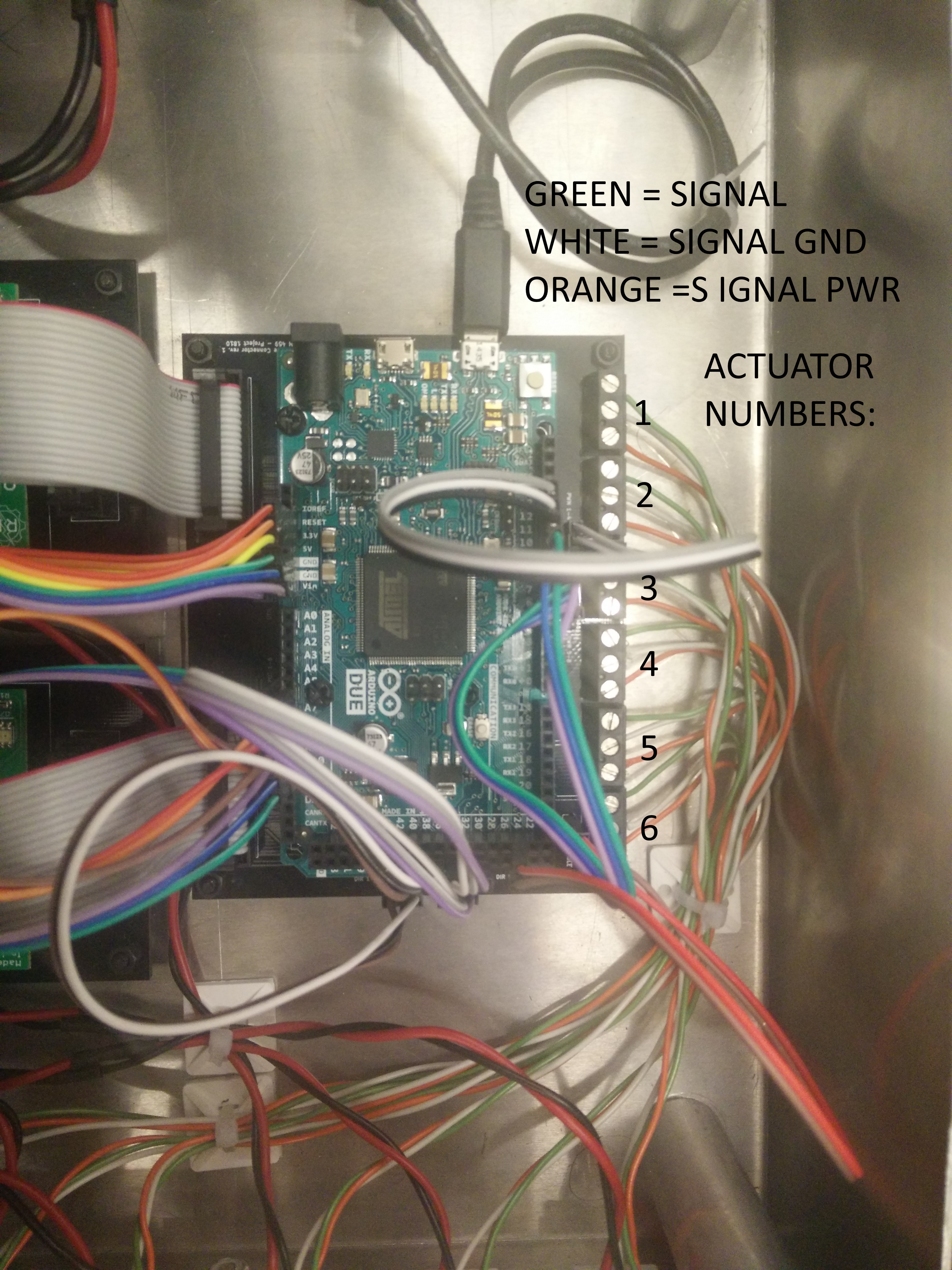

Before assembly, ensure that all the wires are adequately connected within the enclosure, including the power supply wires, the actuator power wires, the actuator signal wires, and the Arduino Due wires. Detail in how the components are wired together and individual schematics are located in the electronics folder.
To ensure the code under arduino/platform is compatible with the wiring of the Arduino Due, the headers on the PCB should be connected to the respective pins in the table below. This assumes actuators 1 through 3 are connected to Multimoto 1 (to blocks M3, M2, and M1 respectively)…
Due circuit bill of materials (BOM)
21 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | HEADER_3 | TerminalBlock_bornier-3_P5.08mm | ACTUATOR_1, ACTUATOR_2, ACTUATOR_3, ACTUATOR_4, ACTUATOR_5, ACTUATOR_6 |
| 4 | HEADER_4 | Pin_Header_Straight_1x04_Pitch2.54mm | DIR_1-4, DIR_5-8, PWM_1-4, PWM_5-8 |
| 2 | HEADER_10x2 | IDC-Header_2x10_Pitch2.54mm_Straight | MULTIMOTO_1, MULTIMOTO_2 |
| 2 | HEADER_6 | Pin_Header_Straight_1x06_Pitch2.54mm | POT_OUT_1, UTIL_1 |
| 1 | HEADER_2 | Pin_Header_Straight_1x02_Pitch2.54mm | ~ENABLE~_1 |
| 6 | 10nF | C_0805_HandSoldering | C1, C2, C3, C4, C5, C6 |
Due circuit design files
The KiCad project lives in the henryymliu/StewartPlatform repository on GitHub; these links point at the commit this page was built from.
Due circuit: common questions
How big is the Due circuit PCB?
The Due circuit measures 88.9 × 114.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Due circuit?
21 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the Due circuit design files?
From the henryymliu/StewartPlatform repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Due circuit design in my own project?
Yes, under the terms of its LGPL-3.0 license, which henryymliu chose for the repository.
