Pcb ruler
About the Pcb ruler
Pcb ruler is an open source PCB design by hildebkg, published on GitHub under the MIT license. It is a 2-layer board measuring 308.8 × 31.8 mm, with 8 components from 5 distinct parts.
Other key parts include the ${SIM.PARAMS}. By type, the board carries 6 resistors and 2 ICs.
From the project

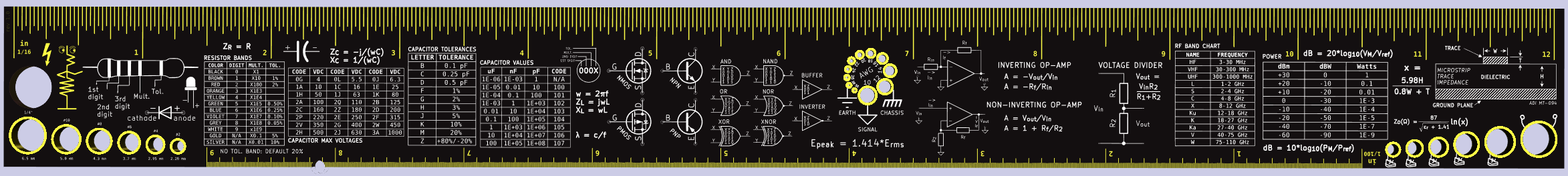

Yet another PCB ruler! Inspired by DigiKey, Adafruit, etc
This project was designed in KiCad 9.0.6.
All footprints used are contained within the \PCB-ruler.pretty folder. I made many of these in other programs and then utilized KiCad's Image Converter tool to generate footprints from screenshots here. Hand-drawn images were created in GIMP. Table-based footprints were created using LibreOffice Calc here. The logic gate/circuit-related footprints were created using KiCad's Symbol Editor and Schematic Editor tools.
Main components on the Pcb ruler
Pcb ruler bill of materials (BOM)
8 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | ${SIM.PARAMS} | U1, U2 | |
| 1 | R_{in} | R1 | |
| 2 | R_{f} | R2, R3 | |
| 2 | R_{2} | R4, R5 | |
| 1 | R_{1} | R6 |
Pcb ruler design files
The KiCad project lives in the hildebkg/pcb-ruler repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB-ruler.kicad_pcb
- SchematicPCB-ruler.kicad_sch
Pcb ruler: common questions
How big is the Pcb ruler?
The Pcb ruler measures 308.8 × 31.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pcb ruler?
8 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Pcb ruler design files?
From the hildebkg/pcb-ruler repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Pcb ruler design in my own project?
Yes, under the terms of its MIT license, which hildebkg chose for the repository.
