Ide44 angled
About the Ide44 angled PCB
Ide44 angled is an open source PCB design by hkzlab, published on GitHub. It is a 2-layer board measuring 8.8 × 44.1 mm, with 2 components from 2 distinct parts.
From the project

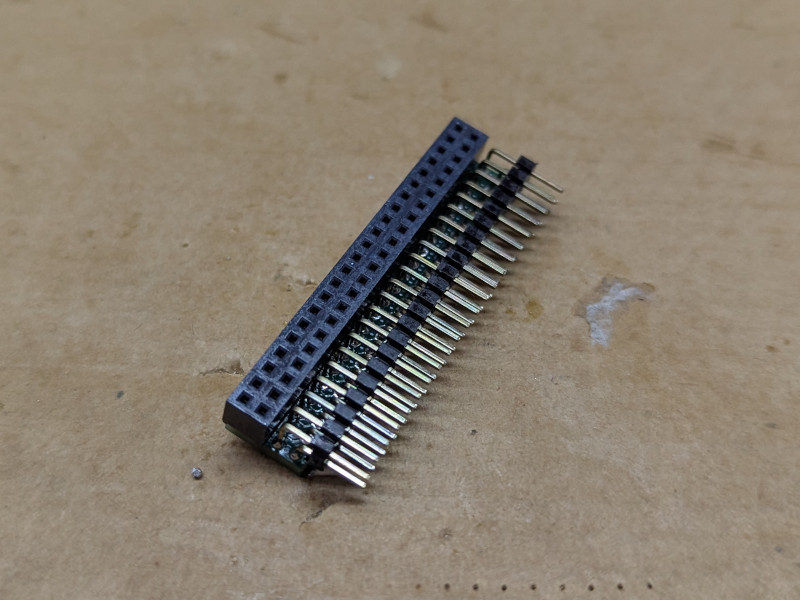

Simple adapter to angle a 2x22pin 2.0mm pitch connector by 90 degrees.
Any use of this project is under your own responsibility. You will be responsible of checking the correct construction and functionality of your board. By using this project You will agree that I cannot be held responsible if it will destroy any of your devices, damage your computer, burn down your house or whatever.
I was in need of fitting a uSD to IDE adapter inside a cramped case, the connector for it was horizontal, but the only space left was in the vertical direction. So I made this adapter.
Ide44 angled bill of materials (BOM)
2 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | M | PinHeader_2x22_P2.00mm_Horizontal | J1 |
| 1 | F | PinSocket_2x22_P2.00mm_Vertical | J2 |
Ide44 angled design files
The KiCad project lives in the hkzlab/ide44_angled repository on GitHub; these links point at the commit this page was built from.
- Layoutide44_angle.kicad_pcb
- Schematicide44_angle.kicad_sch
Ide44 angled: common questions
How big is the Ide44 angled PCB?
The Ide44 angled measures 8.8 × 44.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Ide44 angled?
2 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the Ide44 angled design files?
From the hkzlab/ide44_angled repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Ide44 angled design in my own project?
The repository has no license, so all rights stay with hkzlab. Use it as a reference, and ask the author before reusing the design.
