Z53C80 PLCC to DIP40 adapter
About the Z53C80 PLCC to DIP40 adapter PCB
Z53C80 PLCC to DIP40 adapter is an open source PCB design by hkzlab, published on GitHub under the CC-BY-NC-4.0 license. It is a 4-layer board measuring 21.8 × 51.1 mm, with 3 components from 3 distinct parts.
By type, the board carries 2 connectors and 1 capacitor.
From the project

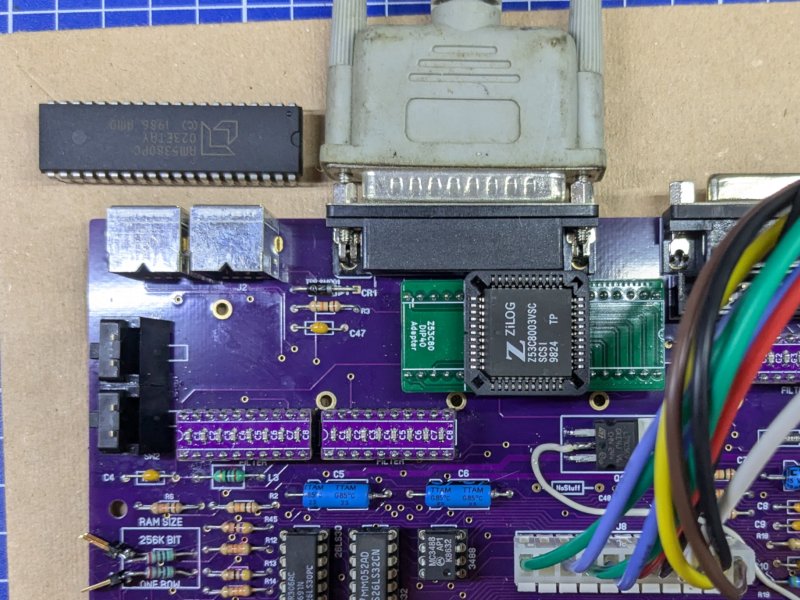

PLCC44 to DIP40 adapter for Z53C80 SCSI controller
Any use of this project is under your own responsibility. You will be responsible of checking the correct construction and functionality of your board and the compatiblity of the chips You will insert into it. By using this project You will agree that I cannot be held responsible if it will destroy any of your devices, damage your computer, burn down your house or whatever.
Z53C80 PLCC to DIP40 adapter bill of materials (BOM)
3 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DIP40 | DIP-40_W15.24mm | J1 |
| 1 | PLCC44 | PLCC-44_THT-Socket | J2 |
| 1 | 100nF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1 |
Z53C80 PLCC to DIP40 adapter design files
The KiCad project lives in the hkzlab/Z53C80_PLCC_to_DIP40_adapter repository on GitHub; these links point at the commit this page was built from.
Z53C80 PLCC to DIP40 adapter: common questions
How big is the Z53C80 PLCC to DIP40 adapter PCB?
The Z53C80 PLCC to DIP40 adapter measures 21.8 × 51.1 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Z53C80 PLCC to DIP40 adapter?
3 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the Z53C80 PLCC to DIP40 adapter design files?
From the hkzlab/Z53C80_PLCC_to_DIP40_adapter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Z53C80 PLCC to DIP40 adapter design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
