Led Torch
About the Led Torch PCB
Led Torch is an open source PCB design by ibrahimjarallah, published on GitHub. It is a 2-layer board measuring 63.8 × 25 mm, with 4 components from 4 distinct parts.
By type, the board carries 1 battery holder, 1 switch, 1 diode and 1 resistor.
From the project

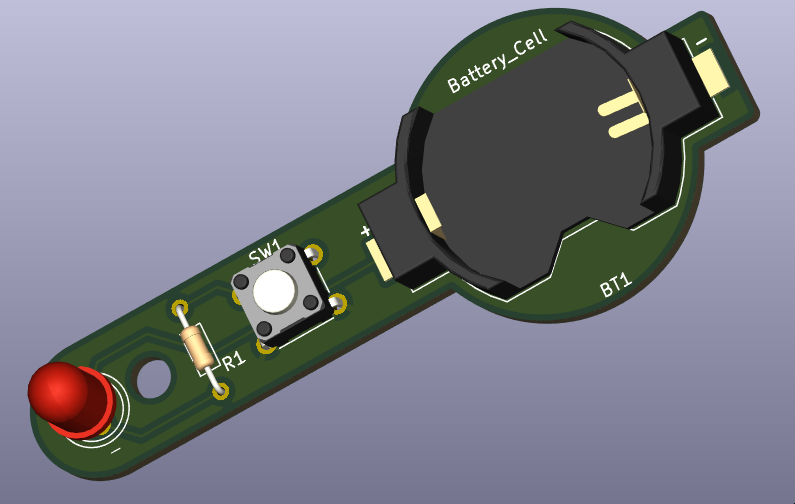

CR2032-powered LED torch PCB — designed in KiCad 9.0. Includes schematic, PCB layout, Gerbers, BOM, netlist, 2D/3D views, STEP model, and assembly PDFs.
This keeps the CR2032 within its continuous discharge rating while delivering adequate brightness.
1. Install KiCad 9.0+ 2. Clone this repository:
All fabrication outputs are ready in the Gerbers+drills/ folder. Compatible with standard PCB manufacturers (JLCPCB, PCBWay, OSHPark, etc.).
- Load LedTorch-job.gbrjob` directly into any Gerber viewer or fab upload portal - PTH and NPTH drill files provided in Gerber format
Led Torch bill of materials (BOM)
4 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Battery_Cell | BatteryHolder_Keystone_1058_1x2032 | BT1 |
| 1 | SW_DPST_x2 | SW_TH_Tactile_Omron_B3F-100x | SW1 |
| 1 | LED | LED_D5.0mm | D1 |
| 1 | 100 | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R1 |
Led Torch design files
The KiCad project lives in the ibrahimjarallah/Led_Torch repository on GitHub; these links point at the commit this page was built from.
- LayoutLed_Torch.kicad_pcb
- SchematicLed_Torch.kicad_sch
Led Torch: common questions
How big is the Led Torch PCB?
The Led Torch measures 63.8 × 25 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Led Torch?
4 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the Led Torch design files?
From the ibrahimjarallah/Led_Torch repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Led Torch design in my own project?
The repository has no license, so all rights stay with ibrahimjarallah. Use it as a reference, and ask the author before reusing the design.
