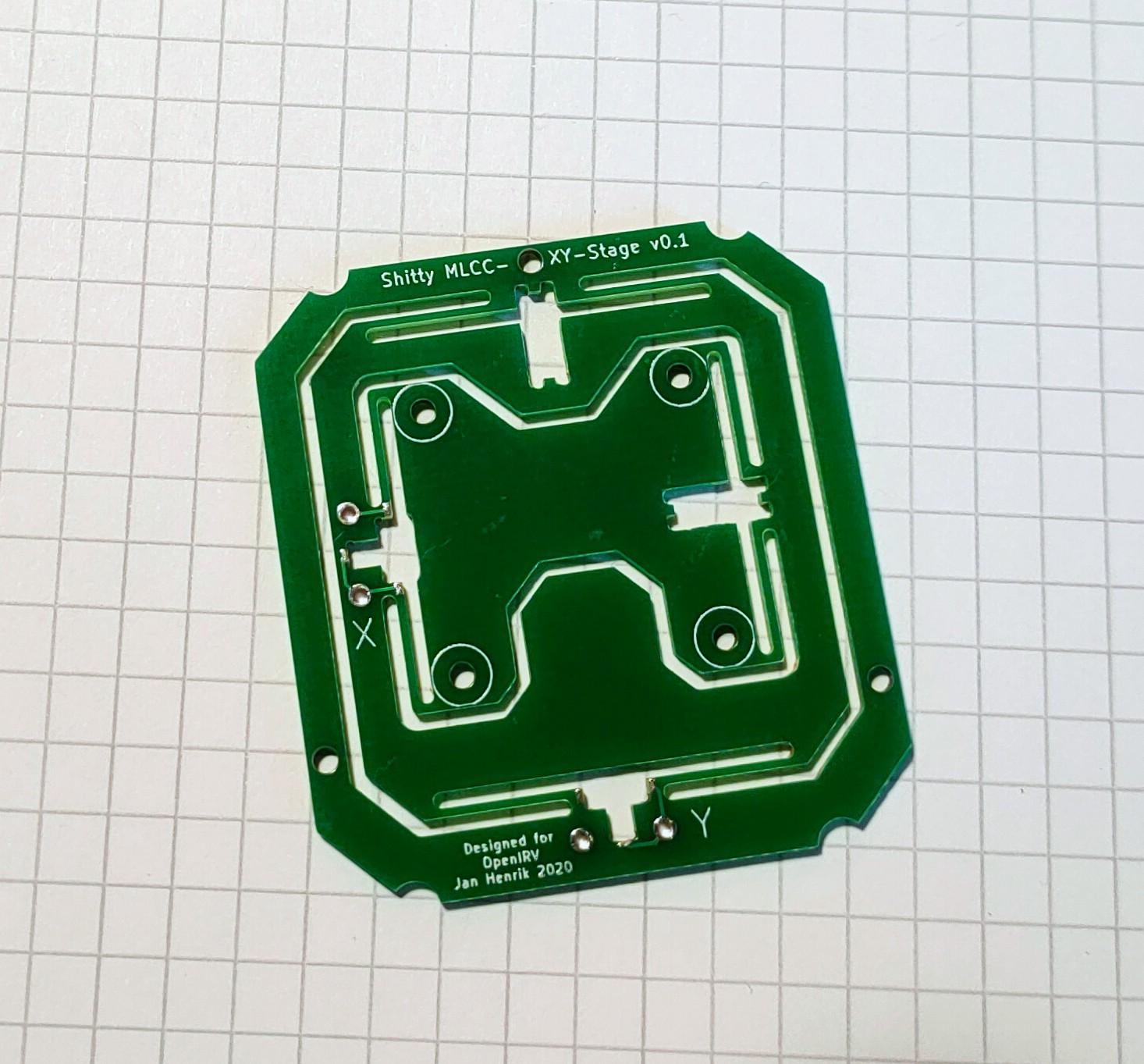

Shitty mlcc xy stage
About the Shitty mlcc xy stage PCB
Shitty mlcc xy stage is an open source PCB design by Jana-Marie, published on GitHub. It is a 2-layer board measuring 44.9 × 47.9 mm, with 11 components from 5 distinct parts.
By type, the board carries 6 capacitors and 4 connectors.
From the project
This experiment aims to develop a mechanical super resolution stage for the OpenIRV project.
This experiment aims to develop a mechanical super resolution stage for the OpenIRV project. The idea is to move the 60Hz 320x240px thermal imaging camera into four different positions during the recording to get a 15Hz 640*480px image. This would of course be ideal, but the image acquisition is not done every 16.6ms for an infinitely short time, but continuously, so the image will be "blurred". To cover the pixel-pitch of 17µm, the stage has to move about +-9µm in x- and y-direction.
Shitty mlcc xy stage bill of materials (BOM)
11 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | X | PinHeader_1x01_P2.54mm_Vertical_NOSILK | J1, J2 |
| 2 | Y | PinHeader_1x01_P2.54mm_Vertical_NOSILK | J3, J4 |
| 1 | DXF | xy_stage_outline | H1 |
| 4 | C_HALF | XY_pads | C1, C3, C4, C6 |
| 2 | PIEZO | piezo_1.65x1.65x5 | C7, C8 |
Shitty mlcc xy stage design files
The KiCad project lives in the Jana-Marie/shitty-mlcc-xy-stage repository on GitHub; these links point at the commit this page was built from.
- Layoutxy_stage.kicad_pcb
- Schematicxy_stage.kicad_sch
Shitty mlcc xy stage: common questions
How big is the Shitty mlcc xy stage PCB?
The Shitty mlcc xy stage measures 44.9 × 47.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Shitty mlcc xy stage?
11 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Shitty mlcc xy stage design files?
From the Jana-Marie/shitty-mlcc-xy-stage repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Shitty mlcc xy stage design in my own project?
The repository has no license, so all rights stay with Jana-Marie. Use it as a reference, and ask the author before reusing the design.
