Type c recessed
About the Type c recessed PCB
Type c recessed is an open source PCB design by Jana-Marie, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 9.2 × 10.7 mm, with 7 components from 5 distinct parts.
By type, the board carries 4 connectors, 2 resistors and 1 capacitor.
From the project
A simple (for now power only) back-mounted USB Type-C receptacle for beautiful boards~

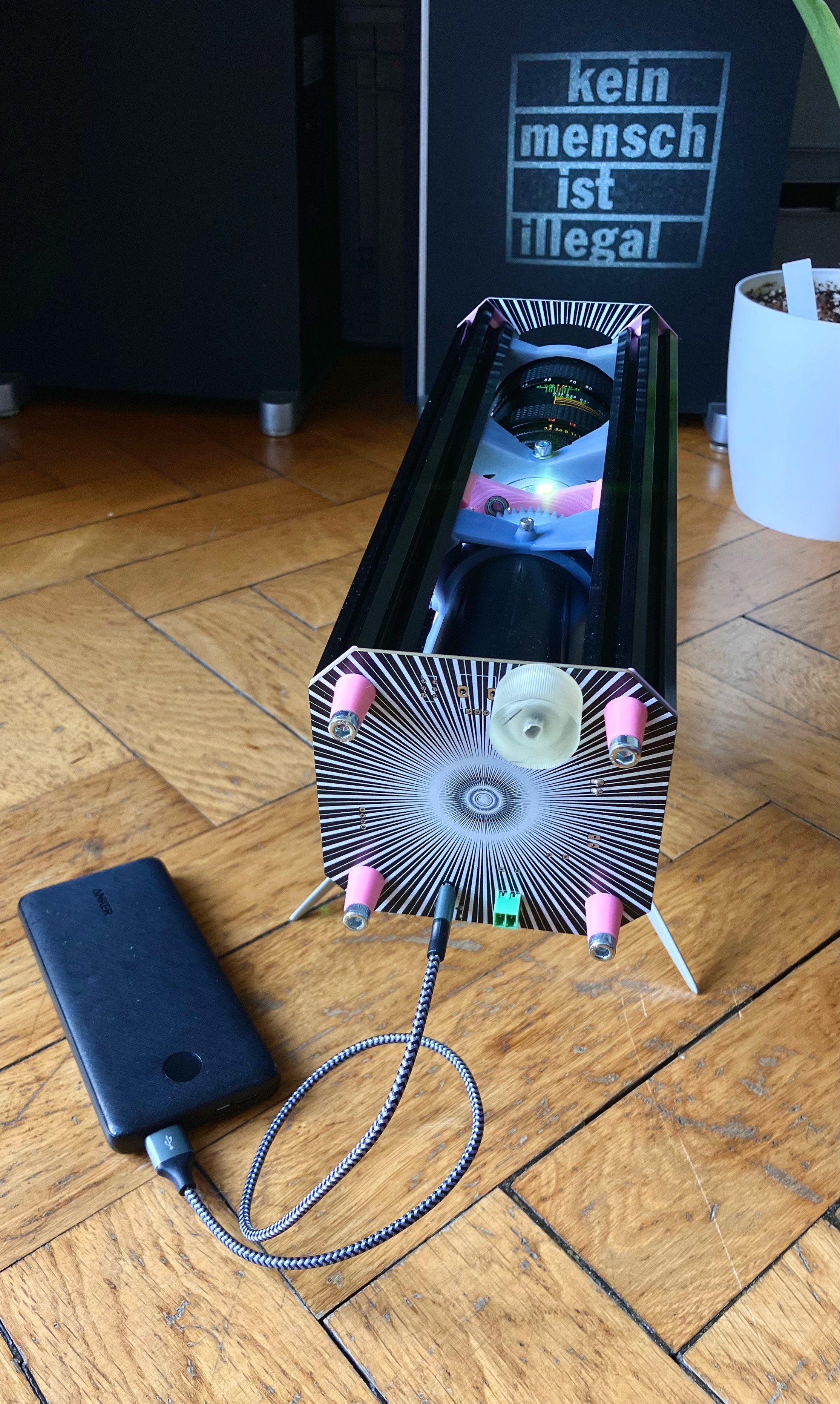

My simple solution of bringing USB Type-C power receptacles flush into circuit boards, thus allowing for beautiful faceplates and PCB based user interfaces.
If you want to use this solution, please get the designfiles in the 'hardware files/' folder produced, add a 6-Pin USB-C power only connector and two 5.1k 1% resistors to each board. If neccessary, please also add a 4.7uF cap to the back of each board.
Type c recessed bill of materials (BOM)
7 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USB_C_Receptacle_Power | USB-C_Power | J1 |
| 1 | VBUS | pad_1_2 | J2 |
| 2 | GND | pad_1_2 | J3, J4 |
| 1 | 4u7 | C_0805 | C1 |
| 2 | 5k1 | R_0402 | R1, R2 |
Type c recessed design files
The KiCad project lives in the Jana-Marie/type-c-recessed repository on GitHub; these links point at the commit this page was built from.
Type c recessed: common questions
How big is the Type c recessed PCB?
The Type c recessed measures 9.2 × 10.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Type c recessed?
7 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Type c recessed design files?
From the Jana-Marie/type-c-recessed repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Type c recessed design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which Jana-Marie chose for the repository.
