VGAxSCART
About the VGAxSCART PCB
VGAxSCART is an open source PCB design by jeffqchen, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 41.2 × 14.2 mm, with 10 components from 7 distinct parts.
By type, the board carries 6 jumpers, 2 connectors and 2 resistors.
From the project

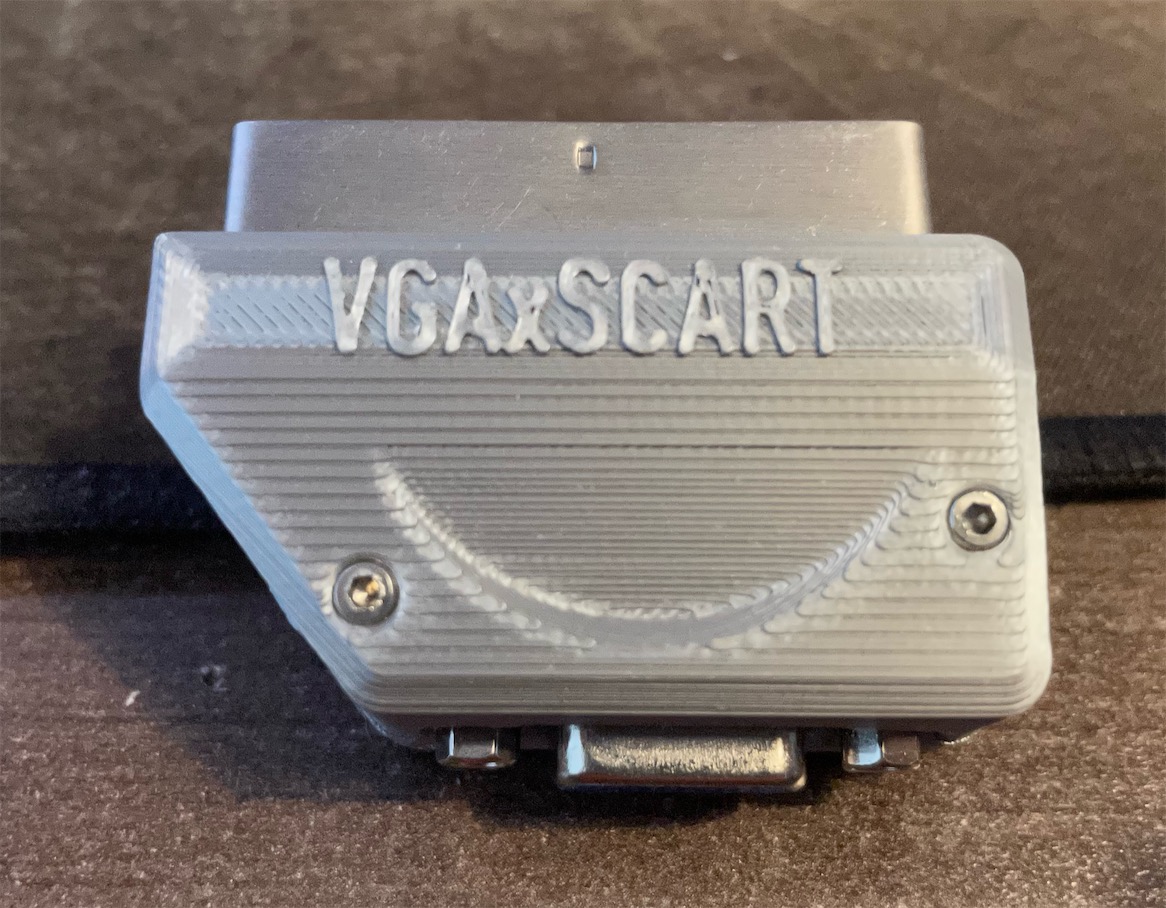

VGAxSCART Adapter
A VGAxSCART Adapter for RGBS. This is one of the different links in my RGBS dongle series.
This dongle passes RGB and Sync video signals, as well as stereo audio between SCART and VGA. Note it does not convert H+V Sync from/into CSync.
The SCART fast switching/blanking voltage is preserved for compatibility, while the function switching/aspect ratio voltage is discarded for better safety.
VGAxSCART bill of materials (BOM)
10 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | VGA | VGA_female_rightangle_slim | P1 |
| 1 | SCART_PAL | SCART_Cutdown | P2 |
| 3 | SolderJumper_3_Open | SolderJumper-3_P1.3mm_Open_RoundedPad1.0x1.5mm | JP1, JP2, JP3 |
| 2 | SolderJumper_2_Open | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP4, JP5 |
| 1 | No Attenuation | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP6 |
| 1 | 180 Ohm | R_0603_1608Metric | R1 |
| 1 | 470 | R_0603_1608Metric | R2 |
VGAxSCART design files
The KiCad project lives in the jeffqchen/VGAxSCART repository on GitHub; these links point at the commit this page was built from.
VGAxSCART: common questions
How big is the VGAxSCART PCB?
The VGAxSCART measures 41.2 × 14.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the VGAxSCART?
10 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the VGAxSCART design files?
From the jeffqchen/VGAxSCART repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the VGAxSCART design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which jeffqchen chose for the repository.
