Cropdroid reservoir
About the Cropdroid reservoir PCB
Cropdroid reservoir is an open source PCB design by jeremyhahn, published on GitHub under the Custom license license. It is a 2-layer board measuring 316.2 × 168.8 mm, with 37 components from 15 distinct parts.
Other key parts include the IRM-30-12. By type, the board carries 14 connectors, 8 diodes, 6 resistors, 4 relays, 2 transistors and 1 IC.

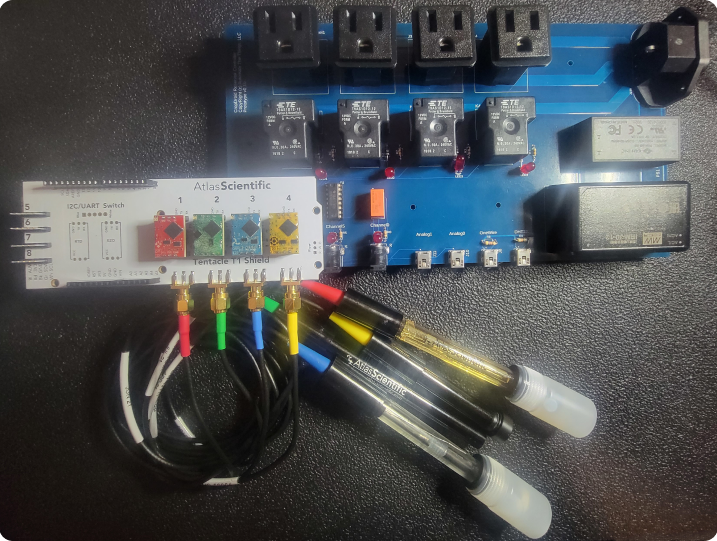

From the project
[](https://github.com/jeremyhahn/cropdroid-reservoir)
[](https://github.com/jeremyhahn/cropdroid-reservoir)
[](https://github.com/jeremyhahn/cropdroid-reservoir)
[](https://github.com/jeremyhahn/cropdroid-reservoir/blob/master/hardware/fusion360/schematic.png)
[](https://github.com/jeremyhahn/cropdroid-reservoir/blob/master/hardware/fusion360/pcb.png)
[](https://github.com/jeremyhahn/cropdroid-reservoir/blob/master/hardware/fusion360/top.png)
Main components on the Cropdroid reservoir
Cropdroid reservoir bill of materials (BOM)
37 components, 15 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | IRM-30-12 | IRM-30-12 | U1 |
| 2 | ULN2003AN Texas Instruments | DIP-16_W7.62mm | Q1, Q2 |
| 8 | SJ1-3523N | Headphone_Jack_3.5mm_SJ1-3523N | CON1, CON2, CON3, CON4, CON5, CON6, CON7, CON8 |
| 1 | 703W-00_52 | QUALTEK_703W-00_52 | J1 |
| 2 | 2172034-1 3-213598-2 | TE_3-213598-2 | J2, J3 |
| 1 | PJ-102A SAMTEC-MTSW-118-10-X-D-640 CUI Inc. | SAMTEC-MTSW-118-10-X-D-640 | J4 |
| 2 | 3-213598-2 | TE_3-213598-2 | J5, J6 |
| 4 | T9AS1D12-15 | RELAY_T9AS1D12-15 | K1, K2, K3, K4 |
| 1 | PSK-6B-S5 | CONV_PSK-6B-S5 | PS1 |
| 1 | EC2-12NU KEMET | Relay_THT_EC2 | RLY1 |
| 4 | 1N4001 | D_DO-41_SOD81_P10.16mm_Horizontal | D1, D3, D5, D7 |
| 4 | LED | CAPPRD350W60D800H2000 | D2, D4, D6, D8 |
| 1 | 10K 4.7k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
| 1 | 4.7K 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2 |
| 4 | R | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R3, R4, R5, R6 |
Cropdroid reservoir design files
The KiCad project lives in the jeremyhahn/cropdroid-reservoir repository on GitHub; these links point at the commit this page was built from.
Cropdroid reservoir: common questions
How big is the Cropdroid reservoir PCB?
The Cropdroid reservoir measures 316.2 × 168.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Cropdroid reservoir?
37 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Cropdroid reservoir design files?
From the jeremyhahn/cropdroid-reservoir repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Cropdroid reservoir design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
