Cropdroid room
About the Cropdroid room PCB
Cropdroid room is an open source PCB design by jeremyhahn, published on GitHub under the Custom license license. It is a 2-layer board measuring 377.2 × 131.1 mm, with 58 components from 14 distinct parts.
Other key parts include the IRM-30-12 and PPTC151LFBN-RC. By type, the board carries 23 diodes, 14 connectors, 11 resistors, 6 relays, 3 ICs and 1 transistor.

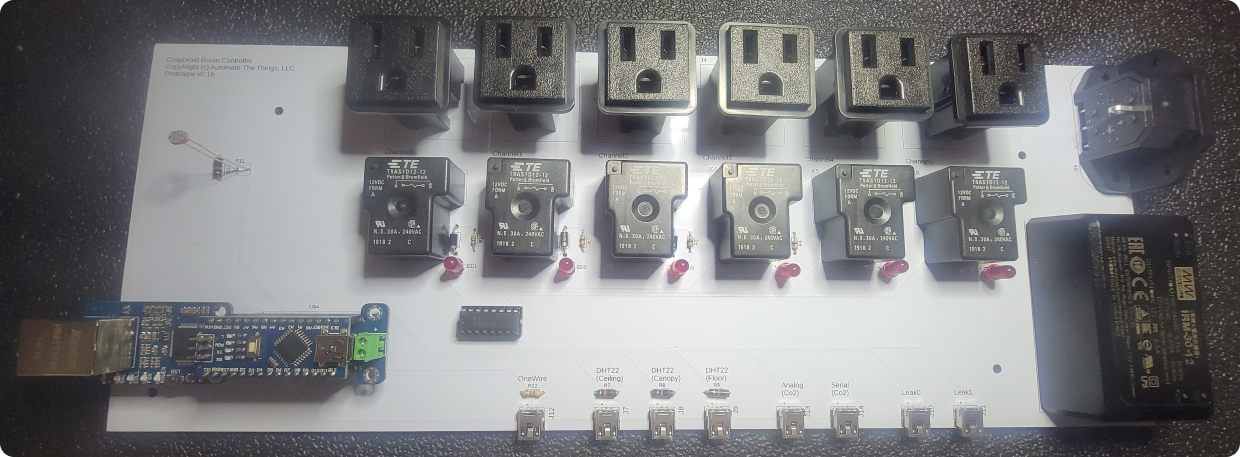

From the project
[](https://github.com/jeremyhahn/cropdroid-room)
[](https://github.com/jeremyhahn/cropdroid-room)
[](https://github.com/jeremyhahn/cropdroid-room)
[](https://github.com/jeremyhahn/cropdroid-room/blob/master/hardware/fusion360/schematic.png)
[](https://github.com/jeremyhahn/cropdroid-room/blob/master/hardware/fusion360/pcb.png)
[](https://github.com/jeremyhahn/cropdroid-room/blob/master/hardware/fusion360/top.png)
Main components on the Cropdroid room
Cropdroid room bill of materials (BOM)
58 components, 14 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | IRM-30-12 | IRM-30-12 | U1 |
| 2 | PPTC151LFBN-RC | PPTC151LFBN-RC | U2, U3 |
| 1 | ULN2003AN Texas Instruments | DIP-16_W7.62mm | Q1 |
| 7 | SJ1-3523N CUI Inc. | Headphone_Jack_3.5mm_SJ1-3523N | CON1, CON2, CON3, CON4, CON5, CON6, CON7 |
| 1 | 703W-00_52 | 52 | J1 |
| 6 | 3-213598-2 | TE_3-213598-2 | J2, J3, J4, J5, J6, J7 |
| 6 | T9AS1D12-15 | RELAY_T9AS1D12-15 | K1, K2, K3, K4, K5, K6 |
| 1 | 1N5400 | D_DO-201AD_P15.24mm_Horizontal | D1 |
| 15 | 1N4001 | D_DO-41_SOD81_P10.16mm_Horizontal | D2, D4, D6, D8, D10, D12, D14, D15 +7 |
| 6 | LED | CAPPRD350W60D800H2000 | D3, D5, D7, D9, D11, D13 |
| 1 | D_Photo | PHODET_PDV-P8103 | D18 |
| 6 | 1 Ohm | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R2, R3, R4, R5, R6 |
| 4 | 4.7K 4.7k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R7, R9, R10, R11 |
| 1 | 10K 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R8 |
Cropdroid room design files
The KiCad project lives in the jeremyhahn/cropdroid-room repository on GitHub; these links point at the commit this page was built from.
Cropdroid room: common questions
How big is the Cropdroid room PCB?
The Cropdroid room measures 377.2 × 131.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Cropdroid room?
58 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Cropdroid room design files?
From the jeremyhahn/cropdroid-room repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Cropdroid room design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
