Xt60board
About the Xt60board PCB
Xt60board is an open source PCB design by jesseaster, published on GitHub. It is a 2-layer board measuring 36.8 × 69.9 mm, with 12 components from 1 distinct parts.
From the project

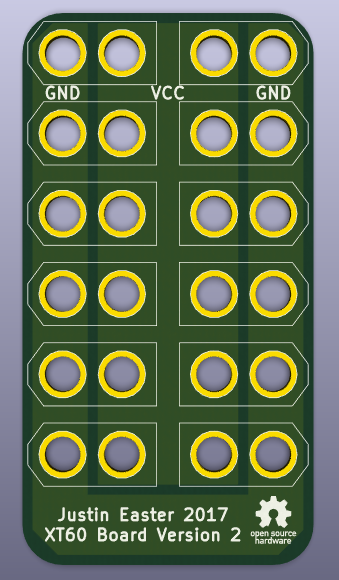

This is a XT60 Board with 12 connectors designed using KiCad.
This is a XT60 Board with 12 connectors designed using KiCad.
The Gerber folder contains the files to send to the PCB Manufacturer.
This board is released under the MIT License.
Credit for the XT60.kicad_mod goes to https://pappkopp.com/?p=222
Xt60board bill of materials (BOM)
12 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 12 | XT60 | XT60 | J1, J2, J3, J4, J5, J6, J7, J8 +4 |
Xt60board design files
The KiCad project lives in the jesseaster/xt60board repository on GitHub; these links point at the commit this page was built from.
- Layoutxt60board.kicad_pcb
Xt60board: common questions
How big is the Xt60board PCB?
The Xt60board measures 36.8 × 69.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Xt60board?
12 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the Xt60board design files?
From the jesseaster/xt60board repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Xt60board design in my own project?
The repository has no license, so all rights stay with jesseaster. Use it as a reference, and ask the author before reusing the design.
