Vga2ntsc
About the Vga2ntsc PCB
Vga2ntsc is an open source PCB design by jnftech, published on GitHub under the Custom license license. It is a 2-layer board measuring 58.4 × 99.8 mm, with 63 components from 32 distinct parts.
Other key parts include the 296-25626-1, AD725ARZ and 1727-3330. By type, the board carries 25 capacitors, 16 resistors, 12 connectors, 3 ICs, 2 fuses and 2 jumpers.
From the project
VGA2NTSC KiCad Conversion/Modification

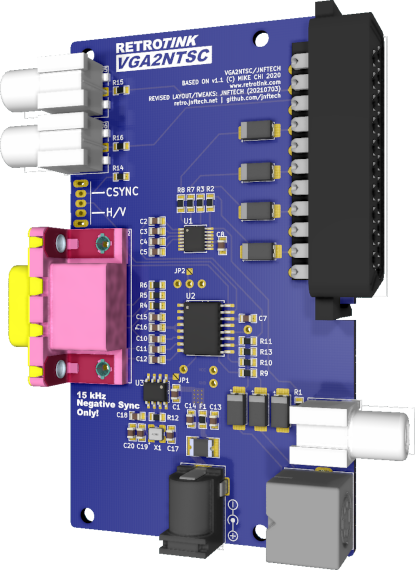

This is a modified version of Mike Chi's VGA2NTSC v1.1. The first goal was to convert the original Altium source files to KiCad - a free and open source tool - as not everyone has access to Altium. Secondly, most footprints have been swapped to make the board more DIY friendly - for example swapping 0402 components (difficult to solder by hand) with 0805 or larger.
Main components on the Vga2ntsc
Vga2ntsc bill of materials (BOM)
63 components, 32 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 296-25626-1 Video Buffer | TSSOP-14_4.4x5mm_Pitch0.65mm-JFT | U1 |
| 1 | AD725ARZ Encoder | SOIC-16W_7.5x10.3mm_Pitch1.27mm_HS | U2 |
| 1 | 1727-3330 OSC/DIV | SOIC-8_3.9x4.9mm_Pitch1.27mm-JFT | U3 |
| 1 | 535-9143-1 XTAL | Crystal_4SMD-NL_3.2mmx2.5mm_HandSolder | X1 |
| 1 | CP-1421 RCA Yellow | RCJ-04x_NoHole | J1 |
| 1 | 609-5181 ~ | AMPHENOL_L77HDE15SD1CH4F_Drill1SizeOval | J2 |
| 1 | CP-2240 MD-40SM | CUI_MD-40SM_VGA2NTSC | J3 |
| 1 | SCART Female | SCART-F-RA-NoHole | J4 |
| 1 | CP-1420 RCA White | RCJ-04x_NoHole | J5 |
| 1 | CP-1419 RCA Red | RCJ-04x_NoHole | J6 |
| 1 | 609-4618-1 Micro USB | Connector_MicroUSB_Amp10118194-0001LF | J7 |
| 1 | EXT_CLOCK | TH_Hole_One_1mm | P1 |
| 1 | EXT_STD_TOGGLE | Pin_Header_Straight_1x03_Pitch2.54mm_NoSilk | P2 |
| 1 | YTRAP_FEED | TH_Hole_One_1mm | P3 |
| 1 | VCC_TAP | TH_Hole_One_1mm | P4 |
| 1 | GND_TAP | TH_Hole_One_1mm | P5 |
| 1 | 100MOHM Ferrite Bead | R_0805_1mm | F1 |
| 1 | F4159 PTC 500mA | R_1812_1206-JFT | F2 |
| 2 | Jumper_NO_Small | WirepadJumperSm | JP1, JP2 |
| 1 | Barrel_Jack_Switch | BARREL_JACK-JFT | Ja7 |
