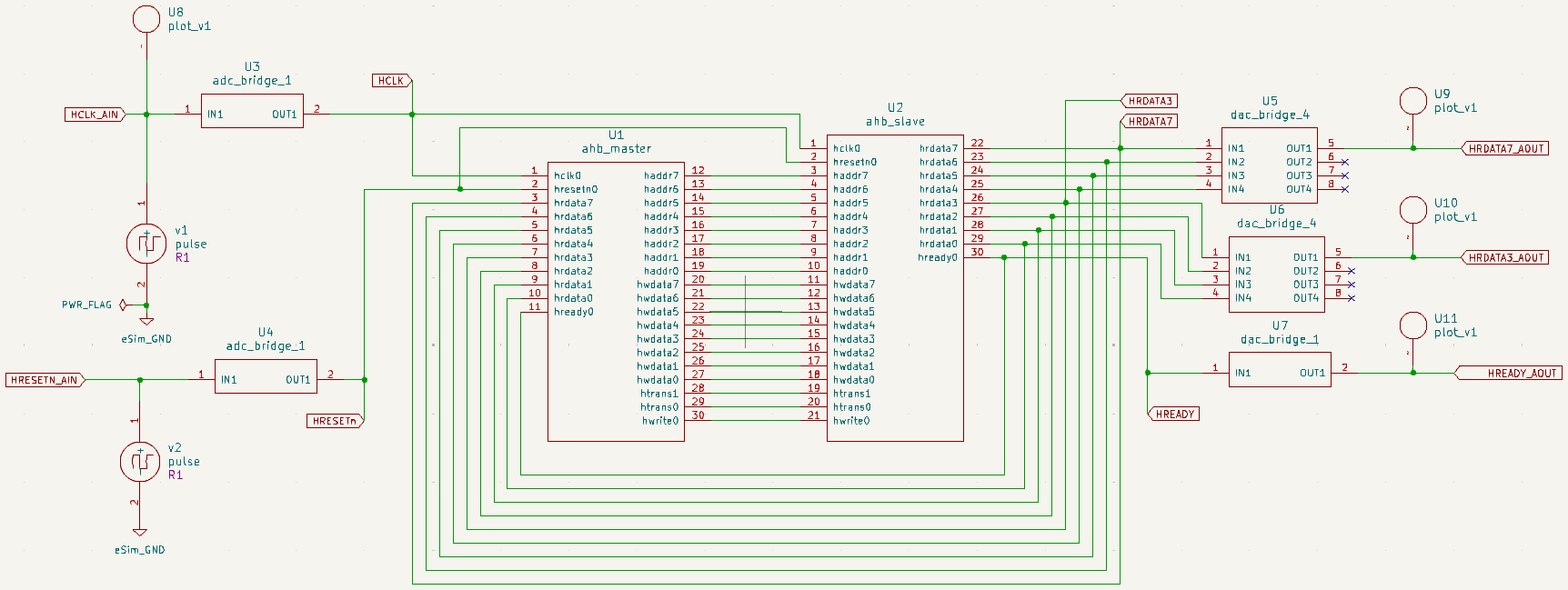

Ahb lite verification
About the Ahb lite verification PCB
Ahb lite verification is an open source PCB design by juned-pinjari, published on GitHub under the CC-BY-SA-4.0 license. It is a board, with 13 components from 7 distinct parts.
Other key parts include the ahb_master, ahb_slave, adc_bridge_1, dac_bridge_4 and dac_bridge_1.
From the project
Circuit-level design and verification of the AMBA AHB-Lite bus protocol using eSim, Ngspice, and KiCad.
Published on FOSSEE eSim Circuit Simulation Repository, IIT Bombay View on FOSSEE Contributor: Juned Pinjari | Government College of Engineering, Nagpur Tools: eSim 2.5 · Ngspice · KiCad 8.0
This project models a single-master, single-slave AHB-Lite interface with an 8-bit address bus and 8-bit data bus. It is scaled down from the full 32-bit version so the design stays simple enough to simulate in eSim, while still showing the pipelining behaviour that makes this protocol interesting.
Main components on the Ahb lite verification
Ahb lite verification bill of materials (BOM)
13 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ahb_master | U1 | |
| 1 | ahb_slave | U2 | |
| 2 | adc_bridge_1 | U3, U4 | |
| 2 | dac_bridge_4 | U5, U6 | |
| 1 | dac_bridge_1 | U7 | |
| 4 | plot_v1 | U8, U9, U10, U11 | |
| 2 | pulse | R1 | v1, v2 |
Ahb lite verification design files
The KiCad project lives in the juned-pinjari/ahb-lite-verification repository on GitHub; these links point at the commit this page was built from.
Ahb lite verification: common questions
How many components are on the Ahb lite verification?
13 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the Ahb lite verification design files?
From the juned-pinjari/ahb-lite-verification repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the Ahb lite verification design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which juned-pinjari chose for the repository.
