Scrappy-Tail
About the Scrappy-Tail PCB
Scrappy-Tail is an open source PCB design by junyali, published on GitHub. It is a 2-layer board measuring 99 × 31 mm, with 16 components from 6 distinct parts.
Other key parts include the C192893. By type, the board carries 7 capacitors, 5 connectors, 2 resistors, 1 IC and 1 diode.
From the project

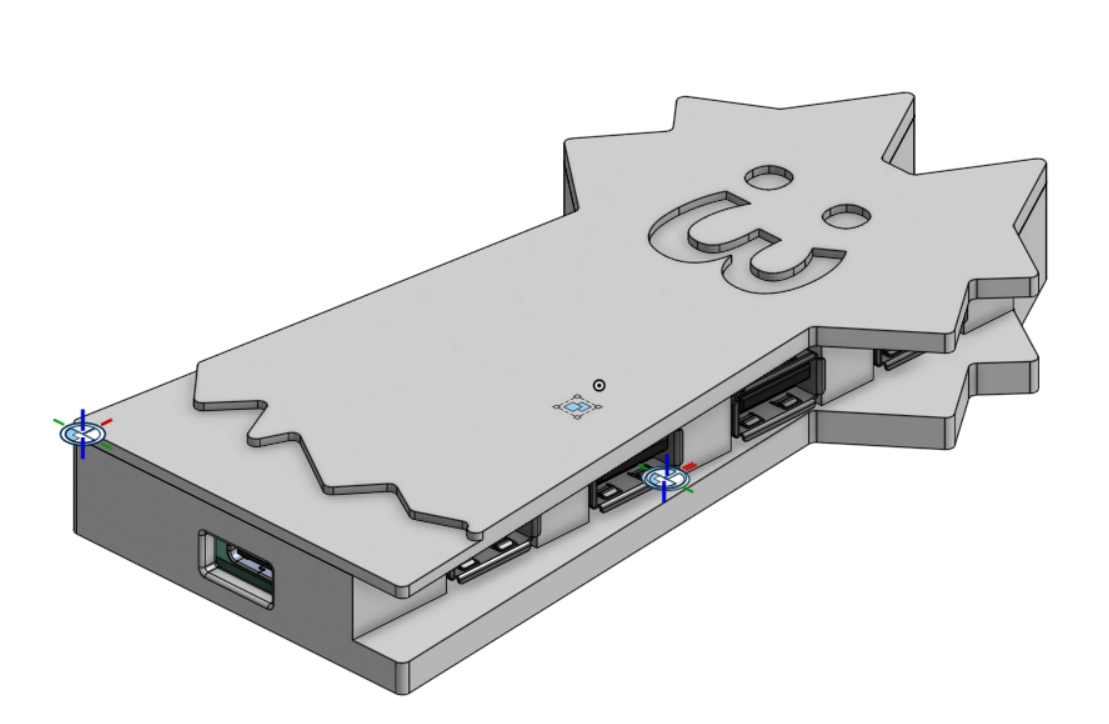

A DIY USB 2.0 Hub with 4 Type-A ports and a Type-C input, with a cute 3D printed scrappy cat case!! :3
A DIY USB 2.0 Hub with 4 Type-A ports and a Type-C input, with a cute 3D printed scrappy cat case!! :3
Scrappy Tail connects to your device using USB Type-C (hence the cable making it look like a tail!) and gives you 4 additional USB Type-A ports. It uses the SL2.1A hub controller, so it uses USB 2.0 interface and thus speeds are limited to 480Mbps
PCB designed in KiCAD and CAD designed in OnShape.
Main components on the Scrappy-Tail
Scrappy-Tail bill of materials (BOM)
16 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C192893 SL2.1A | SO16 | U1 |
| 1 | C3197885 USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_JAE_DX07S016JA1R1500_3D | J1 |
| 4 | C2765194 USB_A | USB_A_Molex_67643_Horizontal | J2, J3, J4, J5 |
| 1 | C466498 D | D_1206_3216Metric | D1 |
| 7 | CL31A107MQHNNNE 100nF | C_1206_3216Metric | C1, C2, C3, C4, C5, C6, C7 |
| 2 | C105580 R | R_0603_1608Metric | R1, R2 |
Scrappy-Tail design files
The KiCad project lives in the junyali/Scrappy-Tail repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb/pcb.kicad_pcb
- Schematicpcb/pcb.kicad_sch
- BOMbom.csv
Scrappy-Tail: common questions
How big is the Scrappy-Tail PCB?
The Scrappy-Tail measures 99 × 31 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Scrappy-Tail?
16 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Scrappy-Tail design files?
From the junyali/Scrappy-Tail repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Scrappy-Tail design in my own project?
The repository has no license, so all rights stay with junyali. Use it as a reference, and ask the author before reusing the design.
