Xiegu-MiniMic
About the Xiegu-MiniMic PCB
Xiegu-MiniMic is an open source PCB design by jzkmath, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 50.8 × 25.4 mm, with 18 components from 12 distinct parts.
By type, the board carries 10 capacitors, 2 diodes, 2 resistors, 1 connector, 1 microphone and 1 switch.
From the project

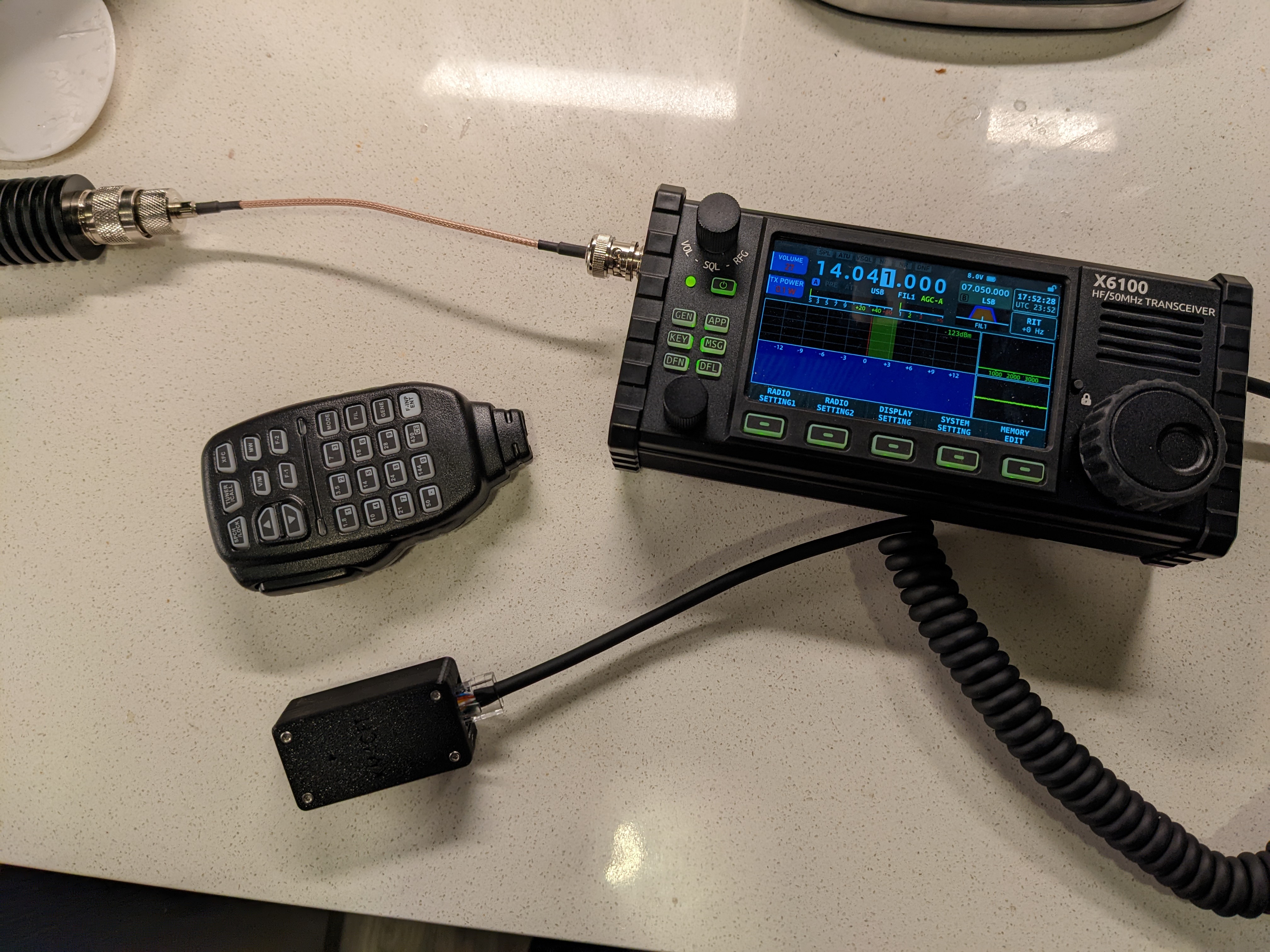

A Small Microphone for the Xiegu G90, X5105 and X6100 Radios
After looking at the larger Microphone that comes with the radio, it appears to be a clone of the ICOM HM151 Hand Mic. Knowing this, I was able to use the service manual to create this PCB.
This is designed using KiCad Version 6.0.9
The Enclosure can be 3D Printed and requires 4 M2x20mm Socket Head Screws and 4 M2 Nuts. I used McMaster Carr Part numbers 91292A013 and 90591A111 for this project.
Xiegu-MiniMic bill of materials (BOM)
18 components, 12 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 54602-908LF Amphenol ICC (FCI) | RJ45_Amphenol_54602-x08_Horizontal | J1 |
| 1 | EM-6022P EM6022P Soberton Inc. | EM6022P | MK1 |
| 1 | 1-1825027-1 TE Connectivity ALCOSWITCH Switches | SW_1-1825027-1 | S1 |
| 2 | MMSZ5239B-7-F Diodes Incorporated | D_SOD-123 | D1, D2 |
| 1 | NLV25T-330J-EF 33uH TDK Corporation | L_1008_2520Metric | L1 |
| 1 | 08055A471JAT2A 470pF KYOCERA AVX | C_0805_2012Metric | C1 |
| 1 | 0805YC105KAT2A 1uF KYOCERA AVX | C_0805_2012Metric | C2 |
| 1 | UWT1C100MCL1GB 10uF Nichicon | CP_Elec_4x5.4 | C3 |
| 3 | 08055A220JAT2A 22pF KYOCERA AVX | C_0805_2012Metric | C4, C5, C6 |
| 2 | 08055C104KAT4A 100nF KYOCERA AVX | C_0805_2012Metric | C7, C10 |
| 2 | 08055C472K4T4A 4.7nF KYOCERA AVX | C_0805_2012Metric | C8, C9 |
| 2 | CRG0805F2K2 2.2k TE Connectivity Passive Product | R_0805_2012Metric | R1, R2 |
Xiegu-MiniMic design files
The KiCad project lives in the jzkmath/Xiegu-MiniMic repository on GitHub; these links point at the commit this page was built from.
- LayoutXiegu MiniMic.kicad_pcb
- SchematicXiegu MiniMic.kicad_sch
- BOMXiegu MiniMic_Full BOM.csv
Xiegu-MiniMic: common questions
How big is the Xiegu-MiniMic PCB?
The Xiegu-MiniMic measures 50.8 × 25.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Xiegu-MiniMic?
18 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Xiegu-MiniMic design files?
From the jzkmath/Xiegu-MiniMic repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Xiegu-MiniMic design in my own project?
Yes, under the terms of its GPL-2.0 license, which jzkmath chose for the repository.
