Adaptador videosonic lorenzo compacto
About the Adaptador videosonic lorenzo compacto PCB
Adaptador videosonic lorenzo compacto is an open source PCB design by KabukiFlux, published on GitHub under the MIT license. It is a 2-layer board measuring 114 × 91 mm, with 0 components from 0 distinct parts.
From the project

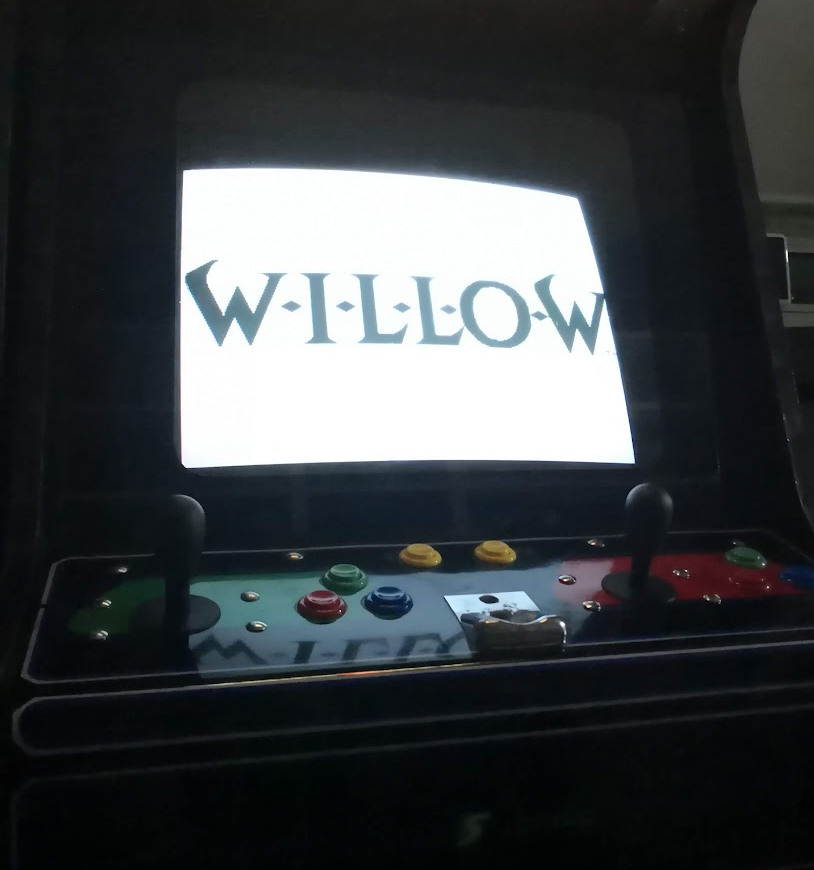

Adapters to replace a VideoSonic joystick to an IL Eurostick/Compact one
INSTRUCCIONES PARA FABRICARLOS AQUÍ / BUILD INSTRUCTIONS HERE
¿Qué es esto? ============ Esto es una PCB, sí, una PCB, no una placa de acero hecha para reemplazar un joystick VideoSonic a uno IL Eurostick 2/Compacto.
Existen 2 arcades universales comunes en España creados por SEGA S.A. (Video Sonic y Super Video) en los años 80 y principios de los 90; estos arcades venían con un stick con interruptores de fabricación suiza.
Adaptador videosonic lorenzo compacto design files
The KiCad project lives in the KabukiFlux/VideoSonic-Industrias-Lorenzo-Adapters repository on GitHub; these links point at the commit this page was built from.
Adaptador videosonic lorenzo compacto: common questions
How big is the Adaptador videosonic lorenzo compacto PCB?
The Adaptador videosonic lorenzo compacto measures 114 × 91 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Adaptador videosonic lorenzo compacto?
0 components, from 0 distinct parts. The full bill of materials is listed on this page.
Where can I download the Adaptador videosonic lorenzo compacto design files?
From the KabukiFlux/VideoSonic-Industrias-Lorenzo-Adapters repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Adaptador videosonic lorenzo compacto design in my own project?
Yes, under the terms of its MIT license, which KabukiFlux chose for the repository.
